Digital Auto Counter Meter with Hall Effect Proximity Switch Sensor (Battery Powered)

Reference RBD-2009

Digital Auto Counter Meter with Hall Effect Proximity Switch Sensor (Battery Powered)
No Power Required
Digital Counter Meter Battery Attached
Hall Effect Proximity Switch Sensor

Connect Hall Effect Proximity Switch Sensor 2 wire to counter terminals 1&2. If the sensor detects a magnet it will start to count.

Description
Product Details

Description

Series electromagnetic counter are used in Recording the total times of electronic pulse signal, and it's widely applied in the counting area of petrol, industry, mechanism, national defense, agriculture, food, printing and etc. The features are new counter design, high precision, long life, stable performance, widely use and easy operation. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Note: Product images/ Components brand may vary from actual product as our stock rotates

Features:

DIN-size standard panel 48x24mm and display 24x8mm
Self-power, Battery inside.
Improved noise immunity
6 segment LCD Display
Reset to Zero
Ideal mini feature
screw terminal types

General Specification
Power	internal power
Count range	0~999999/99999999
Minimum count signal	ZYC03-L 100ms (5Hz)
Max connect resistance	≤10KΩ (count ON)
Battery life	approx. 5 year (25°C)
Min reset pulse	≥0.5s
Installation dimension	22.5×45mm
Min disconnect resistance	≥1000KΩ (count OFF)
Weight	approx.60g
Shipment Weight	0.126 kg
Shipment Dimensions	10 × 10 × 6 cm

Please allow 1-3cm measuring deviation due to manual measurement.

Documentation:

Package Includes:

1 x Digital Counter Meter Battery Attached (DHC3J-6L)

1 x Hall Effect Proximity Switch Sensor (NJK-5002D, 2 Wire)

1 x Mounting Bracket

1 x Mini Magnet

Product Details

Reference RBD-2009

In stock 4 Items

Specific References

EAN13: 2009

Comments (0)

Grade

No customer reviews for the moment.

16 other products in the same category:

Reference: RBD-2231

CJMCU-3216 AP3216 Digital Optical Proximity Sensor

(0)

Working voltage:2.8-3.8V ALS, IR LED and Proximity Detector in an Optical Module; Ambient Light Sensing (ALS); Approximates Human Eye Response; Programmable Interrupt Function with Upper and Lower Threshold; Up to 16-Bit Resolution; High Sensitivity Operates Behind Darkened Glass; Low Lux Performance at 0.01 lux;

BDT 450

BDT 450 tax incl.

BDT 450 tax excl.

BDT 450 tax incl.

BDT 0 Tax

BDT 450 tax excl.

BDT 0 Tax

BDT 450 tax incl.

In-Stock

In stock: 23

Reference: RBD-0822

Hall Effect Sensor Switch Magnetic Detector Module For Arduino

(0)

3144 hall sensor Features wide-range voltage comparator LM393 Signal output indicator Analog / Digital output

BDT 94

BDT 94 tax incl.

BDT 94 tax excl.

BDT 94 tax incl.

BDT 0 Tax

BDT 94 tax excl.

BDT 0 Tax

BDT 94 tax incl.

In-Stock

In stock: 201

IP68 Underwater Ultrasonic Obstacle Avoidance Sensor 6m, UART Robotics Bangladesh

Reference: RBD-3941

Brand: DFRobot

IP68 Underwater Ultrasonic Obstacle Avoidance Sensor 6m, UART

(0)

An underwater ultrasonic sensor designed for obstacle avoidance with a 5-600cm range, IP68 rating, compact size, and operates at 5-24V.

BDT 7,490

BDT 7,490 tax incl.

BDT 7,490 tax excl.

BDT 7,490 tax incl.

BDT 0 Tax

BDT 7,490 tax excl.

BDT 0 Tax

BDT 7,490 tax incl.

Last items in stock

In stock: 3

Reference: RBD-3138

VCNL4010 Proximity Light Sensor Module 20cm

(0)

Digital proximity and ambient light sensor with up to 20 cm detection range Communicates via I2C (TWI) interface for easy microcontroller integration Compatible with 3.3V and 5V systems — suitable for Arduino, ESP32, and Raspberry Pi Measures both distance and ambient light intensity accurately Compact 23×23mm module ideal for robotics, automation, and...

BDT 790

BDT 790 tax incl.

BDT 790 tax excl.

BDT 790 tax incl.

BDT 0 Tax

BDT 790 tax excl.

BDT 0 Tax

BDT 790 tax incl.

In-Stock

In stock: 20

Reference: RBD-2779

XKC-Y25 24V NPN Intelligent Non-Contact Liquid Water Level Sensor with 1m Wire

(0)

XKC-Y25 non-contact water level sensor with NPN output Operates on 24V DC with low 5mA power consumption IP67 waterproof ABS housing for durability in harsh environments Detects liquid levels without drilling non-metallic containers Works with toxic, acidic, alkaline, or high-pressure liquids Strong anti-interference, stable, and highly sensitive design

BDT 1,190

BDT 1,190 tax incl.

BDT 1,190 tax excl.

BDT 1,190 tax incl.

BDT 0 Tax

BDT 1,190 tax excl.

BDT 0 Tax

BDT 1,190 tax incl.

In-Stock

In stock: 5

Reference: RBD-0683

Water Level Sensor Depth of Detection Water Sensor for Arduino

(0)

Operating voltage: DC3-5V Operating current: less than 20mA Sensor Type: Analog Detection Area: 40mmx16mm Operating temperature: 10℃-30℃ Humidity: 10% -90% non-condensing

BDT 49

BDT 49 tax incl.

BDT 49 tax excl.

BDT 49 tax incl.

BDT 0 Tax

BDT 49 tax excl.

BDT 0 Tax

BDT 49 tax incl.

In-Stock

In stock: 32

- BDT 30 Reduced price

Reference: RBD-0396

Ultrasonic Transducer Waterproof Distance Measuring Sensor Module

(0)

Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions Small size, easy to use Operating Voltage: 5 V Sonar Sensing Range: 25-450 cm Max. Sensing Range: 450 cm Frequency: 40 KHz. RoboticsBD

BDT 585 BDT 615

BDT 615 BDT 585 tax incl.

BDT 615 BDT 585 tax excl.

BDT 615 BDT 585 tax incl.

BDT 0 BDT 0 Tax

BDT 615 BDT 585 tax excl.

BDT 0 BDT 0 Tax

BDT 615 BDT 585 tax incl.

In-Stock

In stock: 38

Reference: RBD-3466

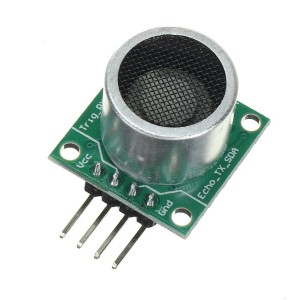

RCWL-1605 Ultrasonic Distance Sensor Module

(0)

RCWL-1605 Ultrasonic Distance Sensor Module with RCWL-9623 chipset Maximum measuring distance up to 4.5 meters Wide operating voltage range 2.8V – 5.5V Ultra-low power consumption: only 2mA working current Default HC-SR04 compatible interface for easy replacement Supports multiple communication modes: GP10, UART, I2C, and 1-WIRE

BDT 220

BDT 220 tax incl.

BDT 220 tax excl.

BDT 220 tax incl.

BDT 0 Tax

BDT 220 tax excl.

BDT 0 Tax

BDT 220 tax incl.

In-Stock

In stock: 20

Reference: RBD-2990

GY-TOF10M TOF Infrared Laser Ranging Time of Flight Ranging Sensor Module IIC/Serial Port

(0)

GY-TOF10M TOF infrared laser ranging sensor with up to 10m measuring distance Supports IIC, serial port, and switch output modes for versatile integration High precision: ±5cm (15cm–3m), ±1.5% (3m–10m) accuracy 1–200Hz update frequency ensures fast real-time data acquisition Compact, lightweight (5g) module with only 26×16×12.5mm size Ideal for robotics,...

BDT 3,300

BDT 3,300 tax incl.

BDT 3,300 tax excl.

BDT 3,300 tax incl.

BDT 0 Tax

BDT 3,300 tax excl.

BDT 0 Tax

BDT 3,300 tax incl.

In-Stock

In stock: 12

Reference: RBD-3552

DYP-L08 Ultrasonic Underwater Obstacle Avoidance Sensor – UART Output, IP68 Rated

(0)

The DYP-L08 Ultrasonic Underwater Ranging Sensor is a compact and highly accurate sensor module engineered specifically for underwater applications such as obstacle avoidance, distance measurement, and automatic control. Featuring IP68 waterproofing and the ability to operate reliably at depths of up to 10 meters, this sensor is ideal for submersible...

BDT 3,990

BDT 3,990 tax incl.

BDT 3,990 tax excl.

BDT 3,990 tax incl.

BDT 0 Tax

BDT 3,990 tax excl.

BDT 0 Tax

BDT 3,990 tax incl.

In stock

In stock: 10

Reference: RBD-1942

MC-38 Wired Door Window Sensor Magnetic Switch Home Alarm System

(0)

Actuation Distance : 15 – 25 mm; Connecting cable length: 30 cm. Magnetic sensor alarm, control the switch of the circuit via the built-in magnet Alarm when someone intrudes into your places Can be used in places like apartment, hotel, office, etc.

BDT 155

BDT 155 tax incl.

BDT 155 tax excl.

BDT 155 tax incl.

BDT 0 Tax

BDT 155 tax excl.

BDT 0 Tax

BDT 155 tax incl.

In-Stock

In stock: 87

Out-of-Stock

Reference: RBD-0419

SparkFun Particle Sensor Breakout - MAX30105

(0)

Features: Built-in Red, IR, and Green LEDs 5V operation (3.3V is allowed, but green LED is not guaranteed to operate) Applications include presence detection, distance sensing (18" max), pulse oximetry, blood oxygen saturation level (SpO2), smoke and particle detection Documents: Schematic Eagle Files Hookup Guide Datasheet (MAX30105) MAX3010x Sensor...

BDT 2,000

BDT 2,000 tax incl.

BDT 2,000 tax excl.

BDT 2,000 tax incl.

BDT 0 Tax

BDT 2,000 tax excl.

BDT 0 Tax

BDT 2,000 tax incl.

Out-of-Stock

In stock: -5

Reference: RBD-0816

VL6180 VL6180X ToF Range Finder Sensor

(0)

Power Supply Voltage: 3.3V~5V Operating Current: ＜5mA Measuring Distance: 5-100mm VCSEL light source Strong anti-interference Based on DFrobot Fermion VL6180X ToF Distance Ranging Sensor (Breakout)

BDT 1,299

BDT 1,299 tax incl.

BDT 1,299 tax excl.

BDT 1,299 tax incl.

BDT 0 Tax

BDT 1,299 tax excl.

BDT 0 Tax

BDT 1,299 tax incl.

In-Stock

In stock: 15

Reference: RBD-1858

Photoelectric Sensor CDD-11P Diffuse PNP Infrared Metal Body NO+NC

(0)

CDD-11P PNP Output Photoelectric sensor Epoxy filled housing ensures resistance to vibration Rigid Nickel Plated Brass housingThis is PNP Output CDD-11P. For NPN Output CDD-11N please check here.

BDT 1,500

BDT 1,500 tax incl.

BDT 1,500 tax excl.

BDT 1,500 tax incl.

BDT 0 Tax

BDT 1,500 tax excl.

BDT 0 Tax

BDT 1,500 tax incl.

In-Stock

In stock: 17

Reference: RBD-3482

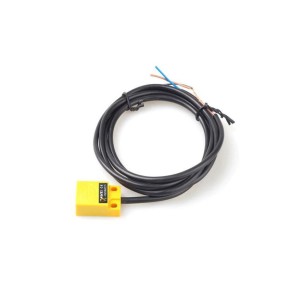

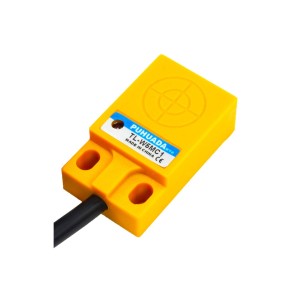

TL-W5MC1 Inductive Metal Proximity Switch Sensor
