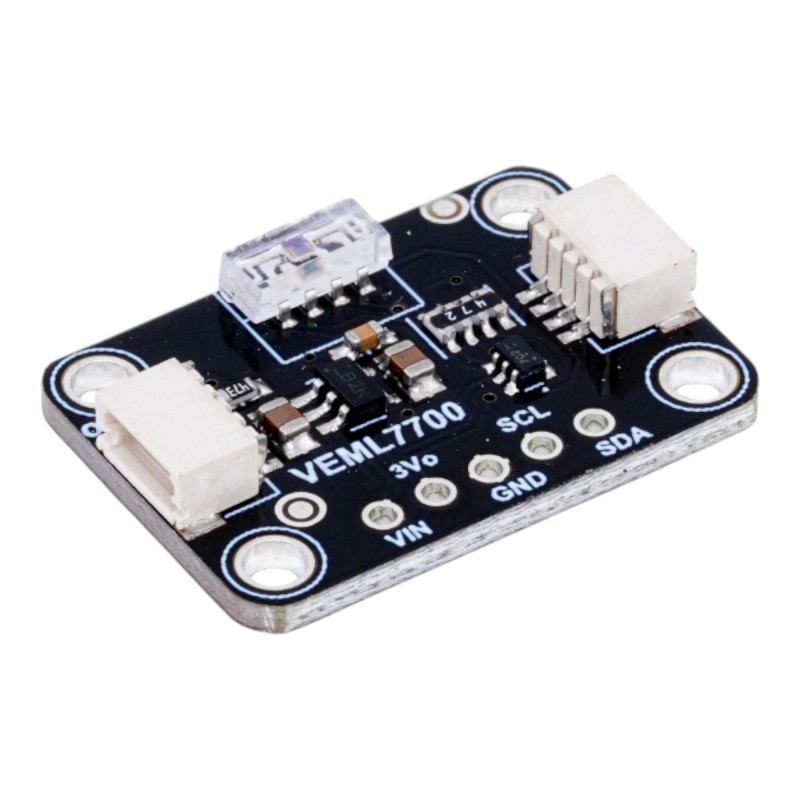

VEML7700 High-Precision Ambient Light Sensor Module STEMMA QT / Qwiic Compatible Robotics Bangladesh
  • VEML7700 High-Precision Ambient Light Sensor Module STEMMA QT / Qwiic Compatible Robotics Bangladesh
  • VEML7700 High-Precision Ambient Light Sensor Module STEMMA QT / Qwiic Compatible Robotics Bangladesh

VEML7700 High-Precision Ambient Light Sensor Module STEMMA QT / Qwiic Compatible

RBD-4218

The VEML7700 Ambient Light Sensor Module is a high-accuracy digital light sensing module designed to measure ambient light intensity in Lux. It is optimized for low-power applications and provides direct Lux output over an I2C interface, making it suitable for smart devices, IoT systems, and display brightness control.

BDT 587
BDT 587 BDT 587 BDT 587 BDT 587
Tax excluded Tax includedTax excludedTax includedTax excluded
BDT 587 Tax excluded
BDT 587 Tax included
BDT 0 Tax
BDT 587 Tax excluded
BDT 0 Tax
BDT 587 Tax included
Quantity
Out-of-Stock

1 person has purchased this item
There are not enough products in stock
Description

Product Description
The VEML7700 Ambient Light Sensor Module is a high-accuracy digital light sensing module designed to measure ambient light intensity in Lux. It is optimized for low-power applications and provides direct Lux output over an I2C interface, making it suitable for smart devices, IoT systems, and display brightness control.

The module supports automatic gain and integration time adjustment, allowing reliable performance across a wide range of lighting conditions without complex configuration.

Key Features

  • Ambient light detection range from 0 to 120000 Lux

  • High resolution of 0.0036 lx per step

  • Ultra-low power consumption with typical operating current of 2 microampere

  • Digital I2C interface with fixed address 0x10

  • Automatic gain and integration time control

  • Spectral response close to human eye sensitivity

  • Compact module design with STEMMA QT / Qwiic compatibility

Technical Specifications

  • Sensor Model: VEML7700

  • Detection Range: 0 to 120000 Lux

  • Resolution: 0.0036 lx per step

  • Spectral Response: 380 to 750 nm

  • Interface: I2C

  • I2C Address: 0x10

  • Supply Voltage: 2.5V to 3.6V DC

  • Operating Current: Typical 2 microampere, standby 0.1 microampere

  • Sampling Rate: Programmable up to 25 Hz

  • Operating Temperature: -40°C to 85°C

  • Module Size: 18 mm x 25 mm

How to Use
Connect the module to a microcontroller using the I2C interface pins. Power the module within the specified voltage range and read ambient light values directly in Lux via I2C communication.

Applications

  • Automatic screen brightness control in consumer electronics

  • Smart home lighting and dimming systems

  • Industrial HMI backlight management

  • Low-power IoT ambient light monitoring nodes

  • Medical equipment display brightness adjustment

Package Includes

  • VEML7700 Ambient Light Sensor Module x 1

  • 2.54 mm pitch 4-pin header x 1

Why Choose
This module combines high sensitivity, ultra-low power consumption, and direct Lux output in a compact, easy-to-integrate form factor, making it a reliable choice for modern light-sensing applications.

Product Details
RBD-4218

Specific References

EAN13
4218
Comments (0)
Grade
No customer reviews for the moment.
16 other products in the same category:
GY-31 TCS3200 Color Sensor Module Robotics Bangladesh GY-31 TCS3200 Color Sensor Module Robotics Bangladesh

Reference: RBD-2341

GY-31 TCS3200 Color Sensor Module

(0)
GY-31 TCS3200 Color Sensor Module with programmable light-to-frequency conversion High-resolution detection of color intensity, output as a square wave Compatible with Arduino, Raspberry Pi, and other microcontrollers Operating voltage: 2.7V to 5.5V with power-down feature for energy efficiency Compact design, stable temperature coefficient for reliable...
BDT 650
BDT 650 tax incl.
BDT 650 tax excl.
BDT 650 tax excl.
BDT 650 tax incl.
BDT 650 tax incl.
BDT 0 Tax
BDT 650 tax excl.
BDT 650 tax excl.
BDT 0 Tax
BDT 650 tax incl.
More GY-31 TCS3200 Color Sensor Module
In-Stock
In stock: 27
TCRT5000L Reflective Optical Sensor Robotics Bangladesh TCRT5000L Reflective Optical Sensor Robotics Bangladesh

Reference: RBD-0132

TCRT5000L Reflective Optical Sensor

(0)
The TCRT5000 and TCRT5000L are reflective sensors which include an infrared emitter and phototransistor in a leaded package which blocks visible light. The package includes two mounting clips. TCRT5000L is the long lead version.Model TCRT5000 Color Black + blue Detecting range: 0.591″ (15mm); Detecting method: Reflective; Collector-Emitter: Voltage:...
BDT 15
BDT 15 tax incl.
BDT 15 tax excl.
BDT 15 tax excl.
BDT 15 tax incl.
BDT 15 tax incl.
BDT 0 Tax
BDT 15 tax excl.
BDT 15 tax excl.
BDT 0 Tax
BDT 15 tax incl.
More TCRT5000L Reflective Optical Sensor
In-Stock
In stock: 284
Reflective Photo Sensor (RPR-220) Robotics Bangladesh

Reference: RBD-1194

Reflective Photo Sensor (RPR-220)

(0)
Product Name : Optical Sensor Switch Model : RPR220 Color : Black Net Weigh : 3g Material : Plastic, Metal Detection Distance：1-13mm Working Voltage:DC 30V(Max) Output Type:Photo Transistor
BDT 30
BDT 30 tax incl.
BDT 30 tax excl.
BDT 30 tax excl.
BDT 30 tax incl.
BDT 30 tax incl.
BDT 0 Tax
BDT 30 tax excl.
BDT 30 tax excl.
BDT 0 Tax
BDT 30 tax incl.
More Reflective Photo Sensor (RPR-220)
In-Stock
In stock: 89
Optical Infrared Reflective Sensor Module Robotics Bangladesh Optical Infrared Reflective Sensor Module Robotics Bangladesh

Reference: RBD-2763

Optical Infrared Reflective Sensor Module

(0)
Optical infrared reflective sensor for line tracking and object detection Uses IR LED + receiver pair with onboard LM393 comparator Adjustable sensitivity via 10K potentiometer Detection range: up to ~1" at 5V, ~0.6" at 3.3V Output logic: HIGH normally, LOW when reflective surface detected Operates on 3.0V – 5V, with onboard detection LED indicator
BDT 150
BDT 150 tax incl.
BDT 150 tax excl.
BDT 150 tax excl.
BDT 150 tax incl.
BDT 150 tax incl.
BDT 0 Tax
BDT 150 tax excl.
BDT 150 tax excl.
BDT 0 Tax
BDT 150 tax incl.
More Optical Infrared Reflective Sensor Module
In-Stock
In stock: 181
5mm Infrared Emitter and Detector Robotics Bangladesh

Reference: RBD-2332

5mm Infrared Emitter and Detector

(0)
5mm Infrared Emitter and Detector pair for high-speed, high-sensitivity applications Infrared phototransistor with black epoxy for enhanced sensitivity Operating voltage: 2.3V, collector-emitter voltage: 2V Compact design ideal for obstacle detection and remote communication Sold as a pair: Blue/White LED as Emitter, Black LED as Detector
BDT 18
BDT 18 tax incl.
BDT 18 tax excl.
BDT 18 tax excl.
BDT 18 tax incl.
BDT 18 tax incl.
BDT 0 Tax
BDT 18 tax excl.
BDT 18 tax excl.
BDT 0 Tax
BDT 18 tax incl.
More 5mm Infrared Emitter and Detector
In-Stock
In stock: 46
QRE1113 IR LED Infrared Reflection Sensor Module Robotics Bangladesh

Reference: RBD-2842

QRE1113 IR LED Infrared Reflection Sensor Module

(0)
Compact IR reflection sensor module based on QRE1113 Digital output, no ADC required – ideal for microcontrollers Operates at both 3.3V and 5V for wide compatibility Accurate surface detection at ~3mm optimal distance Perfect for line-following robots and surface detection projects Easy 3-pin header connection with onboard mounting hole
BDT 150
BDT 150 tax incl.
BDT 150 tax excl.
BDT 150 tax excl.
BDT 150 tax incl.
BDT 150 tax incl.
BDT 0 Tax
BDT 150 tax excl.
BDT 150 tax excl.
BDT 0 Tax
BDT 150 tax incl.
More QRE1113 IR LED Infrared Reflection Sensor Module
In-Stock
In stock: 41
Out-of-Stock AS7265x 3-in-1 Multispectral Sensor Module – AS72651/AS72652/AS72653 Compatible with STM32 Robotics Bangladesh

Reference: RBD-3731

AS7265x 3-in-1 Multispectral Sensor Module – AS72651/AS72652/AS72653 Compatible with STM32

(0)
The AS7265x Multispectral Sensor Module integrates three advanced sensors (AS72651, AS72652, AS72653) into one compact system, providing 18 independent spectral channels covering wavelengths from 410nm to 940nm. Each channel has a 20nm full-width half-maximum (FWHM), making the module ideal for precise spectral fingerprinting, material analysis,...
BDT 14,900
BDT 14,900 tax incl.
BDT 14,900 tax excl.
BDT 14,900 tax excl.
BDT 14,900 tax incl.
BDT 14,900 tax incl.
BDT 0 Tax
BDT 14,900 tax excl.
BDT 14,900 tax excl.
BDT 0 Tax
BDT 14,900 tax incl.
More AS7265x 3-in-1 Multispectral Sensor Module – AS72651/AS72652/AS72653 Compatible with STM32
Out-of-Stock
In stock: 0
Sold-out Digital Line Following Sensor - 8 Array Robotics Bangladesh Digital Line Following Sensor - 8 Array Robotics Bangladesh

Reference: RBD-0659

Digital Line Following Sensor - 8 Array

(0)
Operating voltage: 4.5V to 5.0 V Supply current: 150 mA Output format: 8 Digital voltages. Optimal sensing distance: 3 mm. Maximum recommended sensing distance: 6 mm Uses 8 sensors for best resolution Comes with easy to use digital outputs that can be connected directly to microcontrollers Sample Programming Code is available. RoboticsBD
BDT 450
BDT 450 tax incl.
BDT 450 tax excl.
BDT 450 tax excl.
BDT 450 tax incl.
BDT 450 tax incl.
BDT 0 Tax
BDT 450 tax excl.
BDT 450 tax excl.
BDT 0 Tax
BDT 450 tax incl.
More Digital Line Following Sensor - 8 Array
Sold-out
In stock: 0
Sold-out IR Beam Interruption Sensor - LED 3mm - 0-50 cm Robotics Bangladesh IR Beam Interruption Sensor - LED 3mm - 0-50 cm Robotics Bangladesh

Reference: RBD-2661

IR Beam Interruption Sensor - LED 3mm - 0-50 cm

(0)
Infrared beam interruption sensor with 0–50 cm detection range Features a 3mm IR LED with a narrow 10° illumination angle Operates on 3.3V–5V, compatible with Arduino & microcontrollers Fast 2 ms response time for accurate object detection Open-collector output with pull-up resistor support Ideal for measuring gates, counters, automation &...
BDT 450
BDT 450 tax incl.
BDT 450 tax excl.
BDT 450 tax excl.
BDT 450 tax incl.
BDT 450 tax incl.
BDT 0 Tax
BDT 450 tax excl.
BDT 450 tax excl.
BDT 0 Tax
BDT 450 tax incl.
More IR Beam Interruption Sensor - LED 3mm - 0-50 cm
Sold-out
In stock: 0
LDR 5 mm Light Depending Resistor Robotics Bangladesh LDR 5 mm Light Depending Resistor Robotics Bangladesh

Reference: RBD-0995

LDR 5 mm Light Depending Resistor

(0)
Diameter: 5mm No. of Pins: 2 Type of Mounting: PCB Through Hole Maximum Operating Temperature: +800°C (Approx.) Dark resistance:1-20 Mohm
BDT 5
BDT 5 tax incl.
BDT 5 tax excl.
BDT 5 tax excl.
BDT 5 tax incl.
BDT 5 tax incl.
BDT 0 Tax
BDT 5 tax excl.
BDT 5 tax excl.
BDT 0 Tax
BDT 5 tax incl.
More LDR 5 mm Light Depending Resistor
In-Stock
In stock: 1101
ISL29125 RGB Color Light Sensor Module 3.

Reference: RBD-2363

ISL29125 RGB Color Light Sensor Module 3.3V

(0)
RGB Color Light Sensor Module powered by ISL29125 for accurate color detection. I2C Interface compatible with Arduino, Raspberry Pi, and other microcontrollers. Features 16-bit ADC for precise color measurement in two selectable sensitivity ranges. Designed for low power consumption, ideal for battery-powered applications. Operates in a wide range of...
BDT 1,490
BDT 1,490 tax incl.
BDT 1,490 tax excl.
BDT 1,490 tax excl.
BDT 1,490 tax incl.
BDT 1,490 tax incl.
BDT 0 Tax
BDT 1,490 tax excl.
BDT 1,490 tax excl.
BDT 0 Tax
BDT 1,490 tax incl.
More ISL29125 RGB Color Light Sensor Module 3.3V
In-Stock
In stock: 7
AS7343 Visible Spectrum Infrared Color Spectrometer Sensor Robotics Bangladesh AS7343 Visible Spectrum Infrared Color Spectrometer Sensor Robotics Bangladesh

Reference: RBD-2330

AS7343 Visible Spectrum Infrared Color Spectrometer Sensor

(0)
AS7343 14-channel spectral sensor covering 380nm to 1000nm (VIS to NIR range) Features 12 visible spectrum channels, 1 near-infrared channel, and clear/flicker detection channels Optimized for reflective, transmissive, and emissive measurements in consumer and industrial applications Compact design with I²C interface for easy integration Ideal for color...
BDT 5,990
BDT 5,990 tax incl.
BDT 5,990 tax excl.
BDT 5,990 tax excl.
BDT 5,990 tax incl.
BDT 5,990 tax incl.
BDT 0 Tax
BDT 5,990 tax excl.
BDT 5,990 tax excl.
BDT 0 Tax
BDT 5,990 tax incl.
More AS7343 Visible Spectrum Infrared Color Spectrometer Sensor
Last items in stock
In stock: 3
Photoresistor LDR Light Sensor Module 4 Pin Digital and Analog Robotics Bangladesh

Reference: RBD-4197

Photoresistor LDR Light Sensor Module 4 Pin Digital and Analog

(0)
The Photoresistor LDR Light Sensor Module is designed to detect ambient brightness and light intensity. It is simple to use and ideal for microcontroller-based projects. The module supports both Analog and Digital outputs, allowing flexible integration depending on your application.
BDT 90
BDT 90 tax incl.
BDT 90 tax excl.
BDT 90 tax excl.
BDT 90 tax incl.
BDT 90 tax incl.
BDT 0 Tax
BDT 90 tax excl.
BDT 90 tax excl.
BDT 0 Tax
BDT 90 tax incl.
More Photoresistor LDR Light Sensor Module 4 Pin Digital and Analog
In stock
In stock: 98
CNY70 Reflective Optical Sensor with Transistor Output Robotics Bangladesh

Reference: RBD-3931

CNY70 Reflective Optical Sensor with Transistor Output

(0)
The CNY70 Reflective Optical Sensor by Vishay Telefunken integrates an infrared emitter and phototransistor in a compact, black plastic housing. The emitter and detector are positioned side-by-side, enabling it to detect objects by sensing infrared light reflected from nearby surfaces. It is a widely used sensor for line tracking, object detection, and...
BDT 145
BDT 145 tax incl.
BDT 145 tax excl.
BDT 145 tax excl.
BDT 145 tax incl.
BDT 145 tax incl.
BDT 0 Tax
BDT 145 tax excl.
BDT 145 tax excl.
BDT 0 Tax
BDT 145 tax incl.
More CNY70 Reflective Optical Sensor with Transistor Output
In stock
In stock: 17
VL53L1X Laser Ranging Sensor Module Time of Flight (ToF) Distance Sensor Robotics Bangladesh VL53L1X Laser Ranging Sensor Module Time of Flight (ToF) Distance Sensor Robotics Bangladesh

Reference: RBD-3912

VL53L1X Laser Ranging Sensor Module Time of Flight (ToF) Distance Sensor

(0)
The VL53L1X is an advanced Time of Flight (ToF) laser distance sensor capable of high-accuracy long-range measurement. It uses a 940 nm invisible VCSEL infrared laser and integrated SPAD (single photon avalanche diode) receiver array to measure the distance to objects with high precision.
BDT 840
BDT 840 tax incl.
BDT 840 tax excl.
BDT 840 tax excl.
BDT 840 tax incl.
BDT 840 tax incl.
BDT 0 Tax
BDT 840 tax excl.
BDT 840 tax excl.
BDT 0 Tax
BDT 840 tax incl.
More VL53L1X Laser Ranging Sensor Module Time of Flight (ToF) Distance Sensor
Last items in stock
In stock: 1
Tuya Low power waterproof lightsensor Robotics Bangladesh Tuya Low power waterproof lightsensor Robotics Bangladesh

Reference: RBD-2298

Tuya Low power waterproof lightsensor

(0)
Easy to install with adhesive sticker Detects light levels up to 30,000 LUX Sensitive to changes in light intensity Waterproof for outdoor use Linkage with other smart home devices for automation and control Battery-powered for convenient use
BDT 3,990
BDT 3,990 tax incl.
BDT 3,990 tax excl.
BDT 3,990 tax excl.
BDT 3,990 tax incl.
BDT 3,990 tax incl.
BDT 0 Tax
BDT 3,990 tax excl.
BDT 3,990 tax excl.
BDT 0 Tax
BDT 3,990 tax incl.
More Tuya Low power waterproof lightsensor
In-Stock
In stock: 10
Snow Rain Drops Steam Detection Sensor Module Robotics Bangladesh Snow Rain Drops Steam Detection Sensor Module Robotics Bangladesh

Reference: RBD-1049

Snow Rain Drops Steam Detection Sensor Module

(0)
Operating voltage: 5V Provide both digital and analog output Adjustable sensitivity Output LED indicator Compatible with Arduino TTL Compatible Bolt holes for easy installation
BDT 499
BDT 499 tax incl.
BDT 499 tax excl.
BDT 499 tax excl.
BDT 499 tax incl.
BDT 499 tax incl.
BDT 0 Tax
BDT 499 tax excl.
BDT 499 tax excl.
BDT 0 Tax
BDT 499 tax incl.
More Snow Rain Drops Steam Detection Sensor Module
In-Stock
In stock: 76
PM2.5 Air Quality Sensor PMS5003 High Precision Digital Output Module Robotics Bangladesh PM2.5 Air Quality Sensor PMS5003 High Precision Digital Output Module Robotics Bangladesh

Reference: RBD-1716

PM2.5 Air Quality Sensor PMS5003 High Precision Digital Output Module

(0)
Working Voltage: 5.0V Maximum Working Current: 100mA Data Interface Level: L＜0.8V, H>2.7V, maximum voltage level 3.3V Particle Measurement Range: 0.3 ~ 1.0μm; 1.0 ~ 2.5μm; 2.5 ~ 10μmNote: Please purchase this adapter board to use it with Arduino and Raspberry Pi.
BDT 2,990
BDT 2,990 tax incl.
BDT 2,990 tax excl.
BDT 2,990 tax excl.
BDT 2,990 tax incl.
BDT 2,990 tax incl.
BDT 0 Tax
BDT 2,990 tax excl.
BDT 2,990 tax excl.
BDT 0 Tax
BDT 2,990 tax incl.
More PM2.5 Air Quality Sensor PMS5003 High Precision Digital Output Module
Last items in stock
In stock: 2
Anemometer/Wind Speed Measurement Sensor 0-5V Robotics Bangladesh

Reference: RBD-1951

Anemometer/Wind Speed Measurement Sensor 0-5V

(0)
High hardness, Corrosion protection. Waterproofness and High precision. The mode of its output signal：0-5V(Voltage signal). supply voltage: DC 12-24V. Power consumption：Voltage MAX≤0.3W. Start wind speed：0.4-0.8m/s.
BDT 2,950
BDT 2,950 tax incl.
BDT 2,950 tax excl.
BDT 2,950 tax excl.
BDT 2,950 tax incl.
BDT 2,950 tax incl.
BDT 0 Tax
BDT 2,950 tax excl.
BDT 2,950 tax excl.
BDT 0 Tax
BDT 2,950 tax incl.
More Anemometer/Wind Speed Measurement Sensor 0-5V
In-Stock
In stock: 18
915MHz LoRa Antenna RP-SMA - 1/4 Wave 2dBi Robotics Bangladesh

Reference: RBD-2234

915MHz LoRa Antenna RP-SMA - 1/4 Wave 2dBi

(0)
¼ wave rubber duck antenna 860-960MHz communication center frequency of 915MHz RP-SMA connector Gain is 2dBi with an overall length of 110mm
BDT 190
BDT 190 tax incl.
BDT 190 tax excl.
BDT 190 tax excl.
BDT 190 tax incl.
BDT 190 tax incl.
BDT 0 Tax
BDT 190 tax excl.
BDT 190 tax excl.
BDT 0 Tax
BDT 190 tax incl.
More 915MHz LoRa Antenna RP-SMA - 1/4 Wave 2dBi
In-Stock
In stock: 39
BME688 Environmental Sensor Module Temperature, Humidity, Pressure, Gas Detection with AI Robotics Bangladesh BME688 Environmental Sensor Module Temperature, Humidity, Pressure, Gas Detection with AI Robotics Bangladesh

Reference: RBD-3647

BME688 Environmental Sensor Module Temperature, Humidity, Pressure, Gas Detection with AI

(0)
The BME688 is a powerful 4-in-1 environmental sensor module featuring temperature, humidity, barometric pressure, and advanced gas sensing capabilities. This sensor is based on Bosch’s BME68X series and includes support for artificial intelligence (AI) applications such as gas classification and odor analysis. Ideal for smart home systems, weather...
BDT 2,788
BDT 2,788 tax incl.
BDT 2,788 tax excl.
BDT 2,788 tax excl.
BDT 2,788 tax incl.
BDT 2,788 tax incl.
BDT 0 Tax
BDT 2,788 tax excl.
BDT 2,788 tax excl.
BDT 0 Tax
BDT 2,788 tax incl.
More BME688 Environmental Sensor Module Temperature, Humidity, Pressure, Gas Detection with AI
In stock
In stock: 7

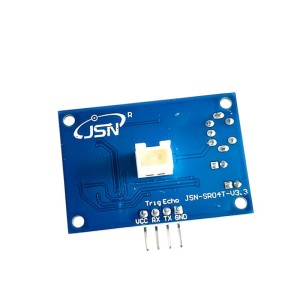

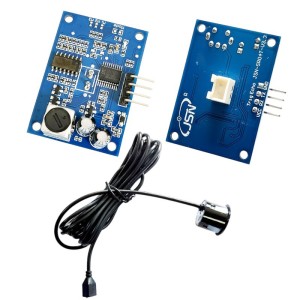

JSN-SR04T V3.3 Waterproof Integrated Ultrasonic Ranging Sonar Sensor Module Robotics Bangladesh JSN-SR04T V3.3 Waterproof Integrated Ultrasonic Ranging Sonar Sensor Module Robotics Bangladesh

Reference: RBD-3957

JSN-SR04T V3.3 Waterproof Integrated Ultrasonic Ranging Sonar Sensor Module

(0)
The JSN-SR04T V3.3 Integrated Ultrasonic Ranging Module is a waterproof, industrial-grade distance measurement sensor designed for outdoor and indoor applications requiring reliable non-contact ranging. This upgraded version improves measurement accuracy with built-in temperature compensation, enhanced stability, and stronger anti-interference filtering....
BDT 850
BDT 850 tax incl.
BDT 850 tax excl.
BDT 850 tax excl.
BDT 850 tax incl.
BDT 850 tax incl.
BDT 0 Tax
BDT 850 tax excl.
BDT 850 tax excl.
BDT 0 Tax
BDT 850 tax incl.
More JSN-SR04T V3.3 Waterproof Integrated Ultrasonic Ranging Sonar Sensor Module
In stock
In stock: 89
MLX90614 GY-906-BCC Infrared Temperature Sensor Module Robotics Bangladesh

Reference: RBD-4183

MLX90614 GY-906-BCC Infrared Temperature Sensor Module

(0)
GY-906-BCC is an infrared thermometer module based on the MLX90614ESF-BCC which is designed to be able to measure object temperatures without having to touch the object's surface directly. This module is quite small in size and has quite high accuracy, making it suitable for application for measuring human body temperature.
BDT 1,290
BDT 1,290 tax incl.
BDT 1,290 tax excl.
BDT 1,290 tax excl.
BDT 1,290 tax incl.
BDT 1,290 tax incl.
BDT 0 Tax
BDT 1,290 tax excl.
BDT 1,290 tax excl.
BDT 0 Tax
BDT 1,290 tax incl.
More MLX90614 GY-906-BCC Infrared Temperature Sensor Module
In stock
In stock: 19

Follow us on Facebook

Facebook
