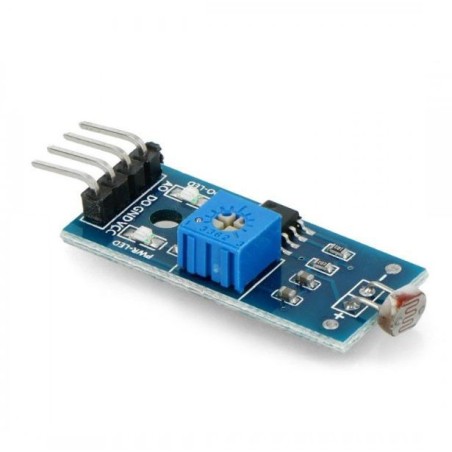

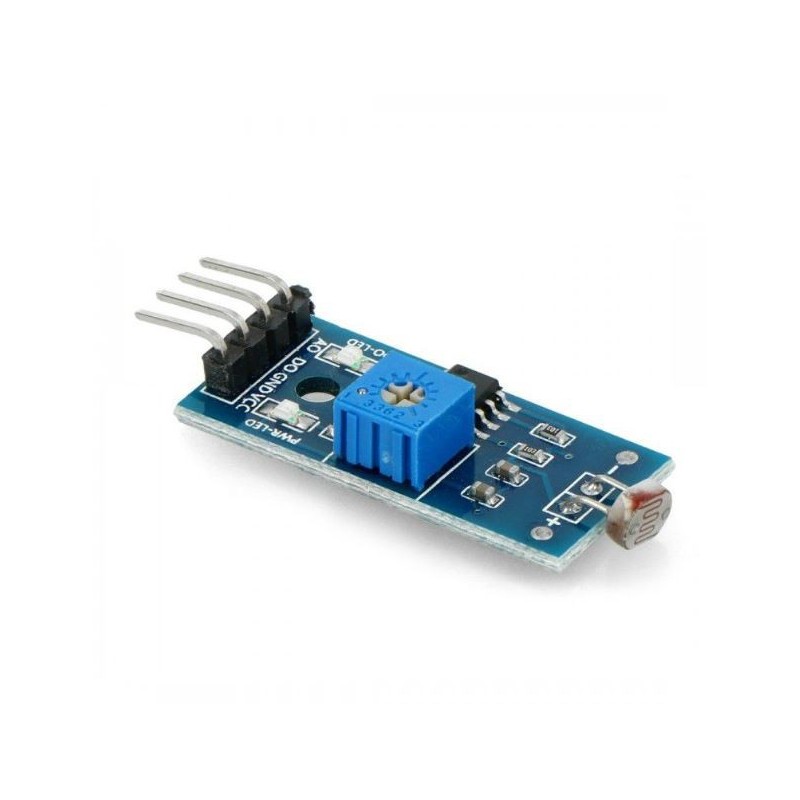

    Photoresistor LDR Light Sensor Module 4 Pin Digital and Analog Robotics Bangladesh
    • Photoresistor LDR Light Sensor Module 4 Pin Digital and Analog Robotics Bangladesh

    Photoresistor LDR Light Sensor Module 4 Pin Digital and Analog

    RBD-4197

    The Photoresistor LDR Light Sensor Module is designed to detect ambient brightness and light intensity. It is simple to use and ideal for microcontroller-based projects. The module supports both Analog and Digital outputs, allowing flexible integration depending on your application.

    BDT 90
    BDT 90 BDT 90 BDT 90 BDT 90
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 90 Tax excluded
    BDT 90 Tax included
    BDT 0 Tax
    BDT 90 Tax excluded
    BDT 0 Tax
    BDT 90 Tax included
    Quantity
    98 Items

    2 people have purchased this item
    2 people recently added this item to the cart
    98 items in stock
    Description

    The Photoresistor LDR Light Sensor Module is designed to detect ambient brightness and light intensity. It is simple to use and ideal for microcontroller-based projects. The module supports both Analog and Digital outputs, allowing flexible integration depending on your application.

    The digital output can be adjusted using the onboard potentiometer. When the ambient light level crosses the preset threshold, the D0 pin switches between HIGH and LOW, making this module suitable for automatic light-controlled switching applications.

    Features

    • Detects ambient brightness and light intensity

    • Adjustable sensitivity via onboard potentiometer

    • Supports Analog Output (A0) and Digital Output (D0)

    • Operating voltage: 3.3V – 5V

    • Uses LM393 comparator for stable performance

    • Power indicator LED (red)

    • Digital output indicator LED (green)

    • Mounting hole for easy installation

    • Compact PCB size

    Pin Configuration

    • VCC – 3.3V to 5V power input

    • GND – Ground

    • D0 (DO) – Digital output (TTL HIGH / LOW)

    • A0 (AO) – Analog voltage output

    How It Works

    • The module uses a photoresistor (LDR) to sense light intensity.

    • When the light level reaches the user-defined threshold:

      • D0 outputs HIGH or LOW depending on the setting.

    • Digital Output (D0):

      • Connect directly to a microcontroller to detect light changes

      • Can directly drive a relay module to form a light-activated switch

    • Analog Output (A0):

      • Connect to an ADC pin to obtain more precise light intensity values

    Specifications

    • Operating Voltage: 3.3V – 5V

    • Output Type: Analog (A0) and Digital (D0)

    • Comparator IC: LM393

    • PCB Size: Approx. 3.0 × 1.6 cm

    Applications

    • Automatic light control systems

    • Day/Night detection

    • Smart home and IoT projects

    • Arduino, ESP8266, ESP32, Raspberry Pi projects

    • Educational and DIY electronics projects

    Product Details
    RBD-4197
    98 Items

    Specific References

    EAN13
    4197
