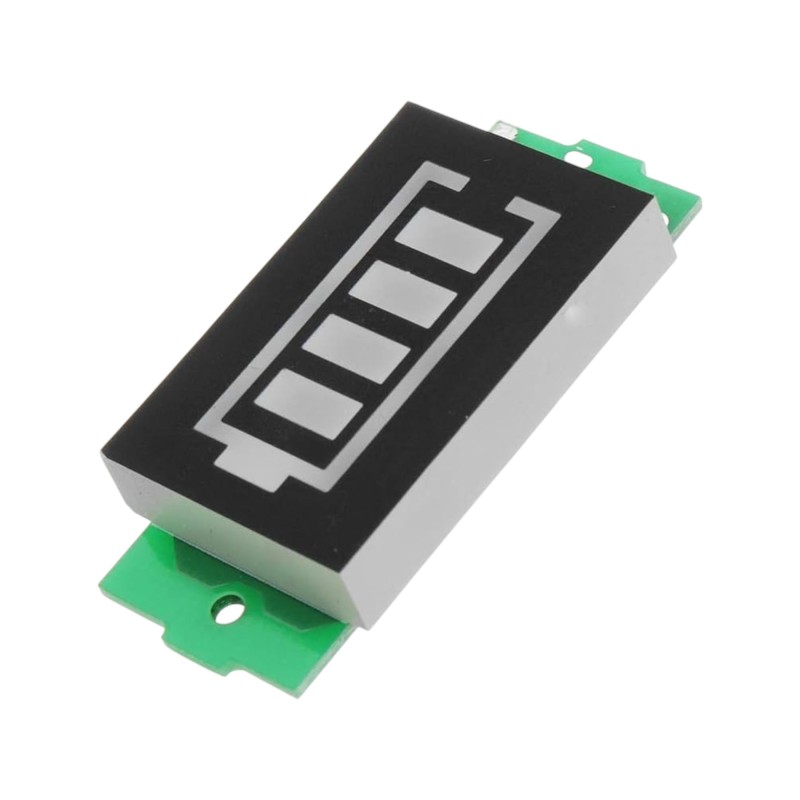

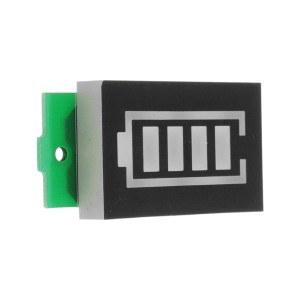

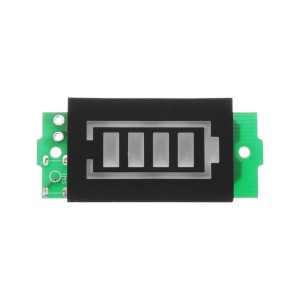

The Lithium Battery Level Indicator Module (MH-DL18S) is a versatile and compact solution for monitoring battery levels in various applications. Designed to support 1S to 8S lithium batteries, this module operates within a voltage range of 3V to 34V, providing real-time power status through a clear 4-bar LED display. Its intuitive operation displays the battery’s status based on preset voltage thresholds, making it ideal for use in electric vehicles, power tools, and other electronic equipment. With reverse connection protection and broad compatibility, the MH-DL18S is a reliable and easy-to-integrate solution for battery monitoring. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Wide Voltage Range: Supports 1S to 8S lithium batteries with a working voltage of 3V to 34V.
- Intuitive LED Display: Shows up to 4 bars based on battery voltage levels for quick monitoring.
- Reverse Connection Protection: Prevents damage even if connected with reversed polarity.

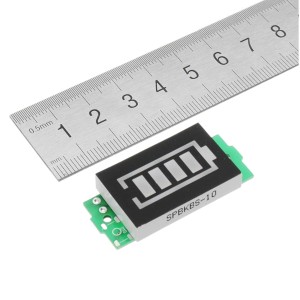

- Compact Design: Measures 44 x 20 x 7 mm for seamless integration into projects.
- Broad Compatibility: Works with lithium batteries, NiMH batteries, lead-acid batteries, and electric vehicle power packs.
- Low Power Consumption: Draws only 5mA of working current for efficient operation.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Battery Packs: Ideal for monitoring 18650, polymer lithium, and NiMH battery packs.
- Electric Vehicles: Used in electric bikes and scooters to monitor power levels.
- Power Tools: Ensures reliable battery status display for cordless tools.
- Lead-Acid Batteries: Compatible with lead-acid battery setups in various applications.
- DIY Electronics: Perfect for custom electronic projects requiring battery level monitoring.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | MH-DL18S |
| Battery Type Supported | 1S to 8S lithium batteries |
| Operating Voltage | 3V to 34V |
| Working Current | 5mA |
| Measurement Range | 3V to 34V |
| Measurement Accuracy | ±2% |
| Operating Temperature | -20℃ to +50℃ |
| Display Type | LED bar graph with up to 4 bars |
| Module Dimensions | 44 x 20 x 7 mm |
| Reverse Connection Protection | Yes |
| Shipment Weight | 0.0057 kg |
| Shipment Dimensions | 5 x 3 x 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
Jumper Pad Settings
The MH-DL18S Lithium Battery Level Indicator Module is designed to display the charge level of lithium battery packs ranging from 1 to 8 cells (1S to 8S). To configure the module for the specific number of cells in your battery pack, you'll need to adjust the jumper pads on the module.
Identify the appropriate jumper pad for your battery configuration (1S through 8S).
Short (bridge) the selected jumper pad by soldering it. Ensure that only one jumper pad is shorted at any given time.
For example, to configure the module for a 3-cell (3S) battery pack, locate the jumper pad labeled for 3S and solder it to create a short.
Important Note: Only one jumper pad should be shorted at a time to accurately measure the corresponding number of cells. Shorting multiple pads simultaneously can lead to incorrect readings or malfunction.
This configuration allows the module to correctly interpret and display the voltage levels corresponding to the number of cells in your battery pack, providing an accurate indication of the battery's charge status.
Operating Modes:
1 Bar: Battery voltage is above N × 3.3V (minimum charge level).
2 Bars: Battery voltage is above N × 3.5V (low charge).
3 Bars: Battery voltage is above N × 3.7V (medium charge).
4 Bars: Battery voltage is above N × 3.9V (fully charged).
If the battery voltage is below N × 3.3V, no bars will light up, indicating the battery needs charging.
(N is the number of cells in your battery pack.)
Connection Example:
Package Includes:
1 x Lithium Battery Level Indicator Module MH-DL18S 1S to 8S
