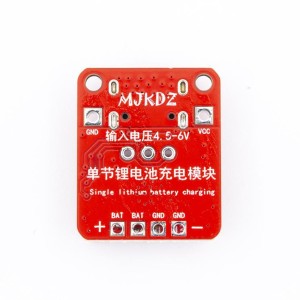

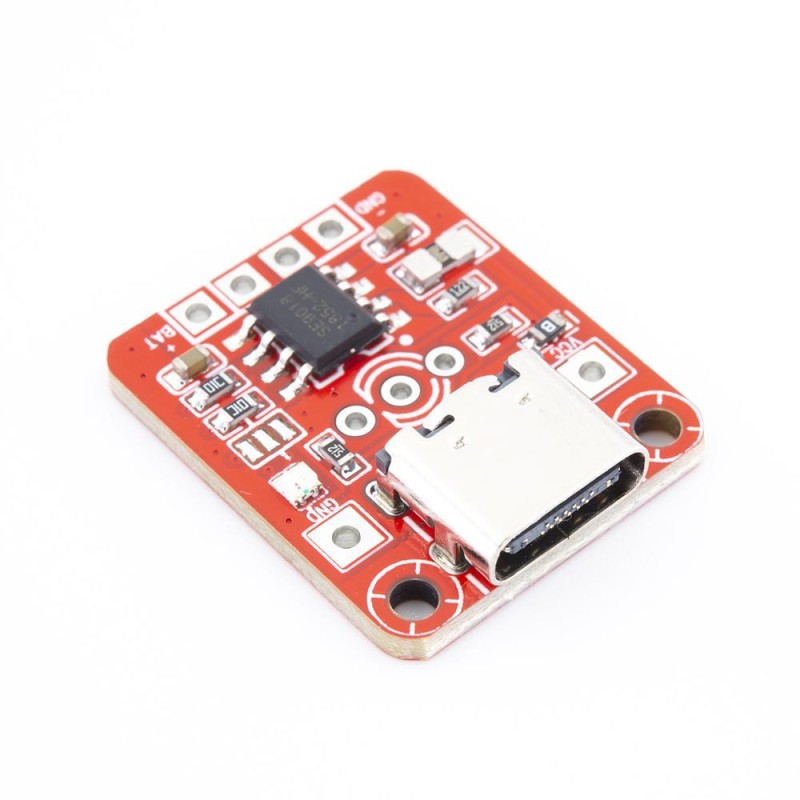

    SE9018 1A Solar USB MPPT Lithium Battery Charging Module Constant Voltage & Current Charging

    RBD-3866

    The SE9018 Solar MPPT Charging Module is a high-performance constant-current / constant-voltage lithium battery charging board designed for single-cell Li-ion or LiPo batteries.
    It integrates MPPT (Maximum Power Point Tracking) technology for efficient solar charging and supports both USB and solar panel input (DC 4.5–6V).

    Using an internal PMOSFET architecture, the SE9018 eliminates the need for external protection diodes while providing reverse-charge protection, thermal regulation, and automatic current adjustment to ensure safe, efficient battery charging in all conditions.

    BDT 399
    BDT 399 BDT 399 BDT 399 BDT 399
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 399 Tax excluded
    BDT 399 Tax included
    BDT 0 Tax
    BDT 399 Tax excluded
    BDT 0 Tax
    BDT 399 Tax included
    Quantity
    5 Items

    1 person has purchased this item
    Only 5 items left in stock
    Description

    The SE9018 Solar MPPT Charging Module is a high-performance constant-current / constant-voltage lithium battery charging board designed for single-cell Li-ion or LiPo batteries.
    It integrates MPPT (Maximum Power Point Tracking) technology for efficient solar charging and supports both USB and solar panel input (DC 4.5–6V).

    Using an internal PMOSFET architecture, the SE9018 eliminates the need for external protection diodes while providing reverse-charge protection, thermal regulation, and automatic current adjustment to ensure safe, efficient battery charging in all conditions.

    Features

    • High-efficiency MPPT charging algorithm for solar and USB inputs

    • Integrated PMOSFET design, no external protection diode required

    • Automatic temperature compensation and charging current regulation

    • Adjustable charging current (max 1A) via external resistor

    • Accurate 4.2V charging voltage (±1.5%)

    • Built-in thermal feedback loop prevents overheating (>140°C)

    • Compact design suitable for portable, solar, and DIY battery projects

    Specifications

    ParameterValue
    Input VoltageDC 4.5V – 6V
    Output Voltage4.2V (for 1-cell Li-ion/LiPo)
    Maximum Charging Current1A
    Charging ModeConstant Current / Constant Voltage (CC/CV)
    Efficiency>90% (solar input with MPPT)
    Operating Temperature-20°C to +85°C
    Operating Humidity5–80% RH
    Dimensions22 × 18 × 5 mm
    Battery Output PinsBAT+, BAT–, GND

    Protection & Control

    • Overtemperature protection: Automatically reduces charging current above 140°C

    • Overcharge / Overdischarge protection: Stops charging if battery voltage exceeds safe limits

    • Reverse polarity protection: Prevents damage from incorrect connections

    • Thermal feedback loop: Keeps the chip temperature within safe range

    Applications

    • Solar-powered devices and IoT nodes

    • DIY power banks and portable battery systems

    • USB or solar rechargeable projects

    • Smart battery charging stations

    • Environmental or off-grid electronics

    Package Includes

    • 1 × SE9018 1A Solar MPPT Lithium Battery Charging Module
