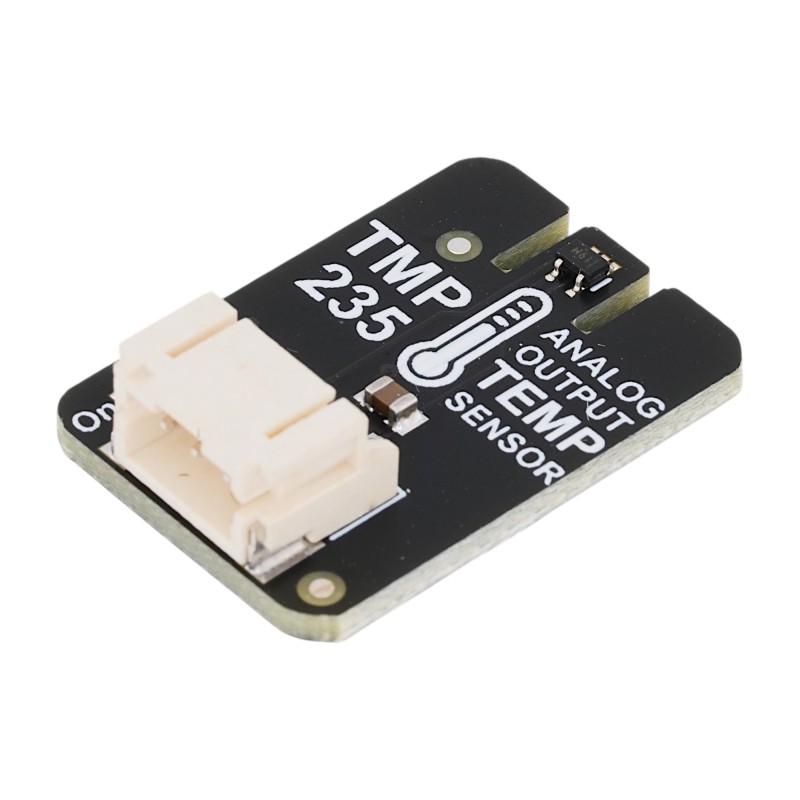

The TMP235 is an analog temperature sensor module that provides a linear voltage output proportional to ambient temperature. It is designed for easy integration with microcontrollers using an ADC input and is suitable for environmental monitoring, control systems, and low-power embedded applications.
The TMP235 is an analog temperature sensor module that provides a linear voltage output proportional to ambient temperature. It is designed for easy integration with microcontrollers using an ADC input and is suitable for environmental monitoring, control systems, and low-power embedded applications.
Analog voltage output proportional to temperature
Linear output for simple conversion
Low power consumption
Wide operating temperature range
Compact module form factor
Standard pin interface
Sensor Model: TMP235
Sensor Type: Analog temperature sensor
Operating Voltage: 2.7V to 5.5V
Output Voltage Range: 0.4V to 2.0V
Temperature Measurement Range: -40°C to +125°C
Temperature Accuracy: ±1°C (typical)
Output Type: Analog voltage
Module Dimensions: 18 x 25.4 mm
Country of Origin: Made in China
Ambient temperature monitoring
Smart home temperature control
Industrial equipment temperature sensing
Laboratory and research projects
Smart agriculture and environmental monitoring
Embedded and IoT systems
Connect VCC and GND to the power supply
Connect the output pin to an ADC input of the microcontroller
Convert the analog voltage to temperature using the linear relationship
1 x TMP235 temperature sensor module
Requires an ADC-capable microcontroller input
Ensure supply voltage remains within the specified range
Accuracy depends on ADC resolution and reference stability
The TMP235 analog temperature sensor module offers a simple and reliable solution for temperature measurement where low power consumption and straightforward analog interfacing are required. It is well suited for a wide range of monitoring and control applications.
