    Flame Sensor Relay Module Robotics Bangladesh
    • Flame Sensor Relay Module Robotics Bangladesh

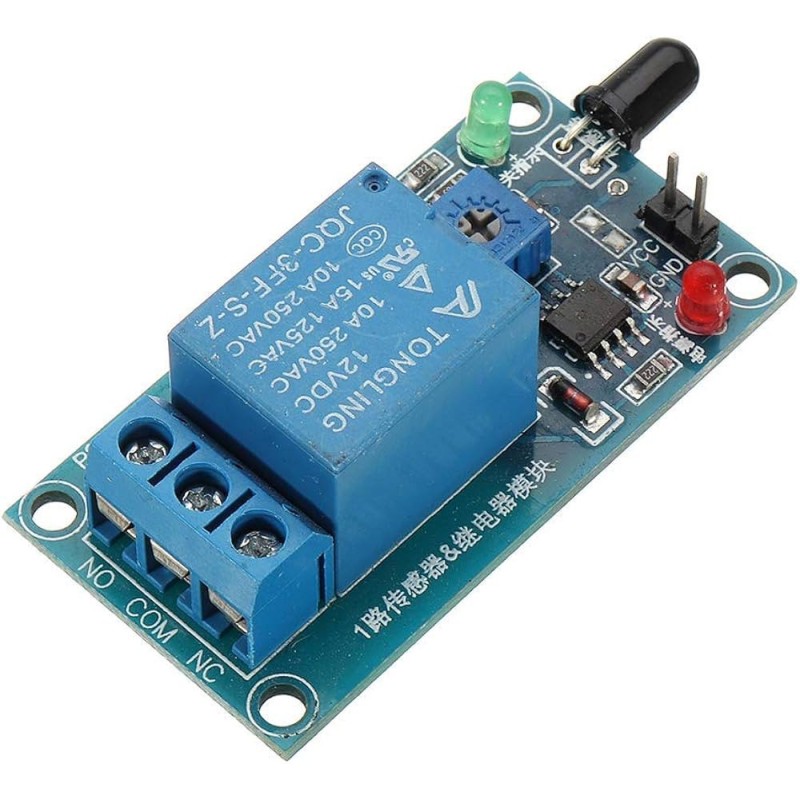

    Flame Sensor Relay Module

    RBD-3501

    • Flame Sensor Relay Module with 760nm–1100nm infrared flame detection range
    • Detects flames up to 80cm with 60° wide detection angle
    • Built-in relay output (10A) for direct AC/DC load control
    • Adjustable sensitivity using onboard potentiometer
    • 5V DC operation with comparator-based reliable triggering
    • Compact design with mounting holes for easy installation
    BDT 220
    BDT 220 BDT 220 BDT 220 BDT 220
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 220 Tax excluded
    BDT 220 Tax included
    BDT 0 Tax
    BDT 220 Tax excluded
    BDT 0 Tax
    BDT 220 Tax included
    Quantity
    In-Stock
    26 Items

    4 people have purchased this item
    26 items in stock
    Description

    The Flame Sensor Relay Module is a highly sensitive and practical fire detection solution designed for safety and automation systems. Operating within the 760nm–1100nm infrared wavelength range, it accurately detects flame sources at distances up to 80cm, depending on flame intensity. Because it features an onboard 10A relay, the module can directly control high-current devices such as alarms, exhaust fans, or even disconnect 220V AC loads during fire incidents. Moreover, the adjustable sensitivity potentiometer allows precise tuning based on environmental conditions. Its 60-degree detection angle ensures wider coverage, while the compact 50×26mm board with mounting holes simplifies installation. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. Wide Infrared Detection Range – Detects flame signals between 760nm and 1100nm for accurate fire sensing.

    2. Long Detection Distance – Identifies flame sources up to 80cm, depending on flame size and intensity.

    3. High-Power Relay Output – Controls loads up to 250V AC / 10A or 30V DC / 10A directly without additional driver circuits.

    4. Adjustable Sensitivity Control – Fine-tune detection threshold using the onboard potentiometer for different environments.

    5. Stable Comparator Circuit – Ensures accurate triggering and minimizes false alarms.

    6. Wide 60° Detection Angle – Provides better coverage compared to narrow-angle sensors.

    7. Compact & Mountable Design – Includes mounting holes for secure installation in panels or enclosures.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Applications:

    1. Fire alarm triggering systems for homes and commercial buildings.

    2. Industrial safety monitoring for factories and workshops.

    3. Smart home automation for automatic power cutoff during fire detection.

    4. Gas stove and burner flame monitoring systems.

    5. Environmental safety control and laboratory protection systems.

    6. DIY Arduino and embedded safety projects.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specifications
    Product NameFlame Sensor Relay Module
    Supply Voltage5V DC
    Operating Current>150mA
    Detection Wavelength Range760nm – 1100nm
    Detection DistanceUp to 80cm (depends on flame size)
    Detection Angle60°
    Relay Load Capacity250V AC / 10A or 30V DC / 10A
    Board Dimensions50mm × 26mm × 19mm
    Mounting HolesYes
    Comparator CircuitOnboard
    Shipment Weight0.015 kg
    Shipment Dimensions5 × 3 × 3 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Package Includes:

    1 x Flame Sensor Relay Module

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Product Details
    RBD-3501
    26 Items

    Specific References

    EAN13
    3501
    Comments (0)
    Grade
    No customer reviews for the moment.
    6 other products in the same category:
    Flame Sensor Fire Detection Module Robotics Bangladesh

    Reference: RBD-0149

    Flame Sensor Fire Detection Module

    (0)
    Output Channel: 1 Power Supply: 3.3/5V Built in a potentiometer for sensitivity control. Onboard signal output indication, output effective signal is high, at the same time the indicator light up, the output signal can directly connect to microcontroller IO. Detection angle about 60 degrees, the flame spectrum especially sensitive. The flame of the most...
    BDT 48
    BDT 48 tax incl.
    BDT 48 tax excl.
    BDT 48 tax excl.
    BDT 48 tax incl.
    BDT 48 tax incl.
    BDT 0 Tax
    BDT 48 tax excl.
    BDT 48 tax excl.
    BDT 0 Tax
    BDT 48 tax incl.
    More Flame Sensor Fire Detection Module
    In-Stock
    In stock: 68
    Flame Sensor Module Robotics Bangladesh Flame Sensor Module Robotics Bangladesh

    Reference: RBD-2100

    Flame Sensor Module Digital & Analog Output

    (0)
    Comparator chip LM393 makes module readings stable. Operating voltage 3.3V-5V. Fast Response Time Sensitivity adjustable Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm. Detection range: up to 100 cm. Adjustable detection range. Detection angle about 60 degrees, it is sensitive to the flame spectrum.
    BDT 85
    BDT 85 tax incl.
    BDT 85 tax excl.
    BDT 85 tax excl.
    BDT 85 tax incl.
    BDT 85 tax incl.
    BDT 0 Tax
    BDT 85 tax excl.
    BDT 85 tax excl.
    BDT 0 Tax
    BDT 85 tax incl.
    More Flame Sensor Module Digital & Analog Output
    In-Stock
    In stock: 190
    Optical Sensitive Resistance Light Detection Photosensitive LDR Sensor Module Robotics Bangladesh

    Reference: RBD-0823

    Optical Sensitive Resistance Light Detection Photosensitive LDR Sensor Module

    (0)
    LDR module 4 PIN Operating voltage 3.3V-5V Signal output indicator light. LDR module 4 PIN Able to detect ambient brightness and light intensity Adjustable sensitivity (via blue digital potentiometer adjustment)
    BDT 75
    BDT 75 tax incl.
    BDT 75 tax excl.
    BDT 75 tax excl.
    BDT 75 tax incl.
    BDT 75 tax incl.
    BDT 0 Tax
    BDT 75 tax excl.
    BDT 75 tax excl.
    BDT 0 Tax
    BDT 75 tax incl.
    More Optical Sensitive Resistance Light Detection Photosensitive LDR Sensor Module
    In-Stock
    In stock: 122
    New IR Infrared Flame Detection Sensor Module 4 Pin Analog & Digital Robotics Bangladesh

    Reference: RBD-4198

    IR Infrared Flame Detection Sensor Module 4 Pin Analog & Digital

    (0)
    The 4-PIN IR Flame Detection Sensor Module is designed to detect infrared light emitted by flames within the 760 nm – 1100 nm wavelength range. This compact and reliable module provides both Digital (TTL) and Analog outputs, making it suitable for a wide range of fire detection, safety, and automation projects.
    BDT 90
    BDT 90 tax incl.
    BDT 90 tax excl.
    BDT 90 tax excl.
    BDT 90 tax incl.
    BDT 90 tax incl.
    BDT 0 Tax
    BDT 90 tax excl.
    BDT 90 tax excl.
    BDT 0 Tax
    BDT 90 tax incl.
    More IR Infrared Flame Detection Sensor Module 4 Pin Analog & Digital
    In stock
    In stock: 99
    - BDT 16 Reduced price 5 Way Flame/Fire Sensor Robotics Bangladesh 5 Way Flame/Fire Sensor Robotics Bangladesh

    Reference: RBD-0423

    5 Way Flame/Fire Sensor

    (0)
    Detecting range: >120 degree Analog and digital outputs On-board potentiometer and indicators 1% resistors to make this module more reliable and precise Operating Voltage: 3.3V – 9V Board Diameter: 40 mm.
    BDT 479 BDT 495
    BDT 495 BDT 479 tax incl.
    BDT 495 BDT 479 tax excl.
    BDT 495 BDT 479 tax excl.
    BDT 495 BDT 479 tax incl.
    BDT 495 BDT 479 tax incl.
    BDT 0 BDT 0 Tax
    BDT 495 BDT 479 tax excl.
    BDT 495 BDT 479 tax excl.
    BDT 0 BDT 0 Tax
    BDT 495 BDT 479 tax incl.
    More 5 Way Flame/Fire Sensor
    In-Stock
    In stock: 17
    Dual IR Flame Sensor Module Dual Digital Output Robotics Bangladesh Dual IR Flame Sensor Module Dual Digital Output Robotics Bangladesh

    Reference: RBD-3047

    Dual IR Flame Sensor Module Dual Digital Output

    (0)
    Dual IR flame sensor module with two independent flame detection channels Detects flame/light sources in the 760–1100nm wavelength range Detection distance up to 80cm and ~60° detection angle Equipped with LM393 comparator for stable and accurate digital output Adjustable sensitivity via onboard potentiometer for flexible use Strong drive capability...
    BDT 450
    BDT 450 tax incl.
    BDT 450 tax excl.
    BDT 450 tax excl.
    BDT 450 tax incl.
    BDT 450 tax incl.
    BDT 0 Tax
    BDT 450 tax excl.
    BDT 450 tax excl.
    BDT 0 Tax
    BDT 450 tax incl.
    More Dual IR Flame Sensor Module Dual Digital Output
    In-Stock
    In stock: 39
    - BDT 100 Reduced price Arduino Mega 2560 R3 Robotics Bangladesh Arduino Mega 2560 R3 Robotics Bangladesh

    Reference: RBD-0009

    Arduino Mega 2560 R3

    (0)
    54 Digital I/O terminals (14 of which have programmable PWM outputs). 16 Analog Inputs. 4 UARTs (hardware serial ports). 16 MHz crystal clock. RoboticsBD Operating voltage: 6 ~ 12v. Dimensions: 110 x 53 x 15 mm.
    BDT 1,788 BDT 1,888
    BDT 1,888 BDT 1,788 tax incl.
    BDT 1,888 BDT 1,788 tax excl.
    BDT 1,888 BDT 1,788 tax excl.
    BDT 1,888 BDT 1,788 tax incl.
    BDT 1,888 BDT 1,788 tax incl.
    BDT 0 BDT 0 Tax
    BDT 1,888 BDT 1,788 tax excl.
    BDT 1,888 BDT 1,788 tax excl.
    BDT 0 BDT 0 Tax
    BDT 1,888 BDT 1,788 tax incl.
    More Arduino Mega 2560 R3
    In-Stock
    In stock: 6
    - BDT 14 Reduced price Servo Motor Micro SG90 180 Degree Rotation Robotics Bangladesh Servo Motor Micro SG90 180 Degree Rotation Robotics Bangladesh

    Reference: RBD-0020

    Servo Motor Micro SG90 180 Degree Rotation

    (0)
    Model: SG90 Weight: 9 gm Operating voltage: 3.0V~ 7.2V Servo Plug: JR Stall torque @4.8V : 1.2kg-cm Stall torque @6.6V : 1.6kg-cm Note: Product images/ Components brand may vary from actual product as our stock rotates.
    BDT 129 BDT 143
    BDT 143 BDT 129 tax incl.
    BDT 143 BDT 129 tax excl.
    BDT 143 BDT 129 tax excl.
    BDT 143 BDT 129 tax incl.
    BDT 143 BDT 129 tax incl.
    BDT 0 BDT 0 Tax
    BDT 143 BDT 129 tax excl.
    BDT 143 BDT 129 tax excl.
    BDT 0 BDT 0 Tax
    BDT 143 BDT 129 tax incl.
    More Servo Motor Micro SG90 180 Degree Rotation
    In-Stock
    In stock: 1505
    - BDT 14 Reduced price Breadboard Full Size Bare 830 Tie Points Robotics Bangladesh Breadboard Full Size Bare 830 Tie Points Robotics Bangladesh

    Reference: RBD-0133

    Breadboard Full Size Bare 830 Tie Points

    (0)
    830 Solder-less Points Ideal for Experimenting With Circuit Design In Labs Compatible with resistance, diodes, transistors, LED’s, Capacitors and other types of electronic components Colored coordinates for easy components placement. Accept a variety of wire sizes 20-29 AWG
    BDT 145 BDT 159
    BDT 159 BDT 145 tax incl.
    BDT 159 BDT 145 tax excl.
    BDT 159 BDT 145 tax excl.
    BDT 159 BDT 145 tax incl.
    BDT 159 BDT 145 tax incl.
    BDT 0 BDT 0 Tax
    BDT 159 BDT 145 tax excl.
    BDT 159 BDT 145 tax excl.
    BDT 0 BDT 0 Tax
    BDT 159 BDT 145 tax incl.
    More Breadboard Full Size Bare 830 Tie Points
    In-Stock
    In stock: 163
    0.01uf 100v Ceramic Capacitor Robotics Bangladesh

    Reference: RBD-0221

    0.01uf 100v Ceramic Capacitor

    (0)
    Capacitor 0.01uF 100V Metallised polyester capacitors with epoxy coating Excellent heat and solvent resistance Suitable for coupling and decoupling applications Self-healing properties
    BDT 15
    BDT 15 tax incl.
    BDT 15 tax excl.
    BDT 15 tax excl.
    BDT 15 tax incl.
    BDT 15 tax incl.
    BDT 0 Tax
    BDT 15 tax excl.
    BDT 15 tax excl.
    BDT 0 Tax
    BDT 15 tax incl.
    More 0.01uf 100v Ceramic Capacitor
    In-Stock
    In stock: 66
    2 Channel 5V Relay Board Module Robotics Bangladesh

    Reference: RBD-0408

    2 Channel 5V Relay Board Module

    (0)
    Low Level Trigger Relay Module. RoboticsBD Two separate LEDs for On/Off indication of the Relay. Triggering input voltage 3.3V – 5V Two separate LEDs for On/Off indication of the Relay Triggering input voltage 3.3V – 5V 4) Back EMF protection Back EMF protection 2 LEDs to indicate when relays are ON. Works with logic level signals from 3.3V or 5V devices...
    BDT 148
    BDT 148 tax incl.
    BDT 148 tax excl.
    BDT 148 tax excl.
    BDT 148 tax incl.
    BDT 148 tax incl.
    BDT 0 Tax
    BDT 148 tax excl.
    BDT 148 tax excl.
    BDT 0 Tax
    BDT 148 tax incl.
    More 2 Channel 5V Relay Board Module
    In-Stock
    In stock: 92
    - BDT 141 On sale! Reduced price Waterproof DS18B20 Digital Thermal Probe or Sensor Robotics Bangladesh Waterproof DS18B20 Digital Thermal Probe or Sensor Robotics Bangladesh

    Reference: RBD-0414

    Waterproof DS18B20 Digital Thermal Probe or Sensor

    (0)
    A probe by new original installation import DS18B20 temperature sensor chip. RoboticsBD Chip each pin use heat shrinkable tube to prevent short circuit, internal sealing glue, waterproof, moistureproof. Stainless steel tube encapsulation waterproof moistureproof prevent rust. Stainless steel shell (6 * 45 mm), lead length 100 cm (shielding wire) use...
    BDT 209 BDT 350
    BDT 350 BDT 209 tax incl.
    BDT 350 BDT 209 tax excl.
    BDT 350 BDT 209 tax excl.
    BDT 350 BDT 209 tax incl.
    BDT 350 BDT 209 tax incl.
    BDT 0 BDT 0 Tax
    BDT 350 BDT 209 tax excl.
    BDT 350 BDT 209 tax excl.
    BDT 0 BDT 0 Tax
    BDT 350 BDT 209 tax incl.
    More Waterproof DS18B20 Digital Thermal Probe or Sensor
    In-Stock
    In stock: 96
    Male Pin Header Single Row (Short) Robotics Bangladesh Male Pin Header Single Row (Short) Robotics Bangladesh

    Reference: RBD-0654

    Male Pin Header Single Row (Short)

    (0)
    Single row. 2.54mm pitch. 1 x 40 pins. Through-hole mount. RoboticsBD
    BDT 10
    BDT 10 tax incl.
    BDT 10 tax excl.
    BDT 10 tax excl.
    BDT 10 tax incl.
    BDT 10 tax incl.
    BDT 0 Tax
    BDT 10 tax excl.
    BDT 10 tax excl.
    BDT 0 Tax
    BDT 10 tax incl.
    More Male Pin Header Single Row (Short)
    In-Stock
    In stock: 368
    Optical Sensitive Resistance Light Detection Photosensitive LDR Sensor Module Robotics Bangladesh

    Reference: RBD-0823

    Optical Sensitive Resistance Light Detection Photosensitive LDR Sensor Module

    (0)
    LDR module 4 PIN Operating voltage 3.3V-5V Signal output indicator light. LDR module 4 PIN Able to detect ambient brightness and light intensity Adjustable sensitivity (via blue digital potentiometer adjustment)
    BDT 75
    BDT 75 tax incl.
    BDT 75 tax excl.
    BDT 75 tax excl.
    BDT 75 tax incl.
    BDT 75 tax incl.
    BDT 0 Tax
    BDT 75 tax excl.
    BDT 75 tax excl.
    BDT 0 Tax
    BDT 75 tax incl.
    More Optical Sensitive Resistance Light Detection Photosensitive LDR Sensor Module
    In-Stock
    In stock: 122
    You might also like
    1-Channel Relay Module - 12V (High and Low Level Trigger) Robotics Bangladesh

    Reference: RBD-3445

    1-Channel Relay Module - 12V (High and Low Level Trigger)

    (0)
    1-Channel 12V Relay Module for switching high-voltage loads Selectable High or Low level trigger via onboard jumper Supports up to 10A at 250VAC / 30VDC load capacity Compatible with 3.3V and 5V logic systems Screw terminal block for secure load connection Built-in freewheeling diode and LED status indicator
    BDT 135
    BDT 135 tax incl.
    BDT 135 tax excl.
    BDT 135 tax excl.
    BDT 135 tax incl.
    BDT 135 tax incl.
    BDT 0 Tax
    BDT 135 tax excl.
    BDT 135 tax excl.
    BDT 0 Tax
    BDT 135 tax incl.
    More 1-Channel Relay Module - 12V (High and Low Level Trigger)
    In-Stock
    In stock: 45
    5-60V Real Time Delay Timer Relay Module with LED Display Robotics Bangladesh

    Reference: RBD-3497

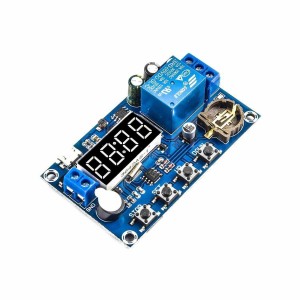

    5-60V Real Time Delay Timer Relay Module with LED Display

    (0)
    5-60V Real Time Delay Timer Relay Module with LED digital display Wide input range 5V–60V DC for flexible applications Supports 5 programmable time periods (PE-1 to PE-5) Multiple timing modes (P-1 to P-5) with date-based control Adjustable timing resolution from 0.1 seconds to minutes Built-in buzzer alarm, emergency stop, and sleep mode
    BDT 650
    BDT 650 tax incl.
    BDT 650 tax excl.
    BDT 650 tax excl.
    BDT 650 tax incl.
    BDT 650 tax incl.
    BDT 0 Tax
    BDT 650 tax excl.
    BDT 650 tax excl.
    BDT 0 Tax
    BDT 650 tax incl.
    More 5-60V Real Time Delay Timer Relay Module with LED Display
    In-Stock
    In stock: 17
    ESP8266 Dual WiFi Relay Module Internet Of Things Smart Home Mobile APP Remote Switch Robotics Bangladesh ESP8266 Dual WiFi Relay Module Internet Of Things Smart Home Mobile APP Remote Switch Robotics Bangladesh

    Reference: RBD-1337

    ESP8266 Dual WiFi Relay Module Internet Of Things Smart Home Mobile APP Remote Switch

    (0)
    Transmission Distance(m) :400 Relay Channel:2 Trigger Voltage (VDC): 5 Switching Voltage (VAC):250@10A Switching Voltage (VDC):30@10A Baud Rate:9600 Note: Relay might be different from the picture as per stock
    BDT 835
    BDT 835 tax incl.
    BDT 835 tax excl.
    BDT 835 tax excl.
    BDT 835 tax incl.
    BDT 835 tax incl.
    BDT 0 Tax
    BDT 835 tax excl.
    BDT 835 tax excl.
    BDT 0 Tax
    BDT 835 tax incl.
    More ESP8266 Dual WiFi Relay Module Internet Of Things Smart Home Mobile APP Remote Switch
    In-Stock
    In stock: 46
    Human Presence Sensing PIR Motion Sensor Relay Module Adjustable Delay & Dual Mode DC 5V Robotics Bangladesh Human Presence Sensing PIR Motion Sensor Relay Module Adjustable Delay & Dual Mode DC 5V Robotics Bangladesh

    Reference: RBD-3604

    Human Presence Sensing PIR Motion Sensor Relay Module Adjustable Delay & Dual Mode DC 5V

    (0)
    The Infrared Sensing Relay Module is a highly adaptable and intelligent motion detection solution designed to detect human presence and activate a relay accordingly. It features dual operational modes, adjustable sensitivity, and customizable delay timing, making it ideal for automation, lighting control, smart appliances, and energy-saving systems....
    BDT 490
    BDT 490 tax incl.
    BDT 490 tax excl.
    BDT 490 tax excl.
    BDT 490 tax incl.
    BDT 490 tax incl.
    BDT 0 Tax
    BDT 490 tax excl.
    BDT 490 tax excl.
    BDT 0 Tax
    BDT 490 tax incl.
    More Human Presence Sensing PIR Motion Sensor Relay Module Adjustable Delay & Dual Mode DC 5V
    In stock
    In stock: 20
    Relay Module Combined Light-Operated Switch 12V 10A/250VAC Robotics Bangladesh

    Reference: RBD-3447

    Relay Module Combined Light-Operated Switch 12V 10A/250VAC

    (0)
    Relay Module Combined Light-Operated Switch for automatic light-based control Operates on 12V DC supply with built-in light sensor Supports 10A load at 250VAC / 30VDC Integrated SRD-12VDC-SL-C high-quality relay Standard 2.54mm goldpin connectors for easy interfacing Ideal for automatic lighting, security & energy-saving systems
    BDT 260
    BDT 260 tax incl.
    BDT 260 tax excl.
    BDT 260 tax excl.
    BDT 260 tax incl.
    BDT 260 tax incl.
    BDT 0 Tax
    BDT 260 tax excl.
    BDT 260 tax excl.
    BDT 0 Tax
    BDT 260 tax incl.
    More Relay Module Combined Light-Operated Switch 12V 10A/250VAC
    In-Stock
    In stock: 30

    Follow us on Facebook

    Facebook
