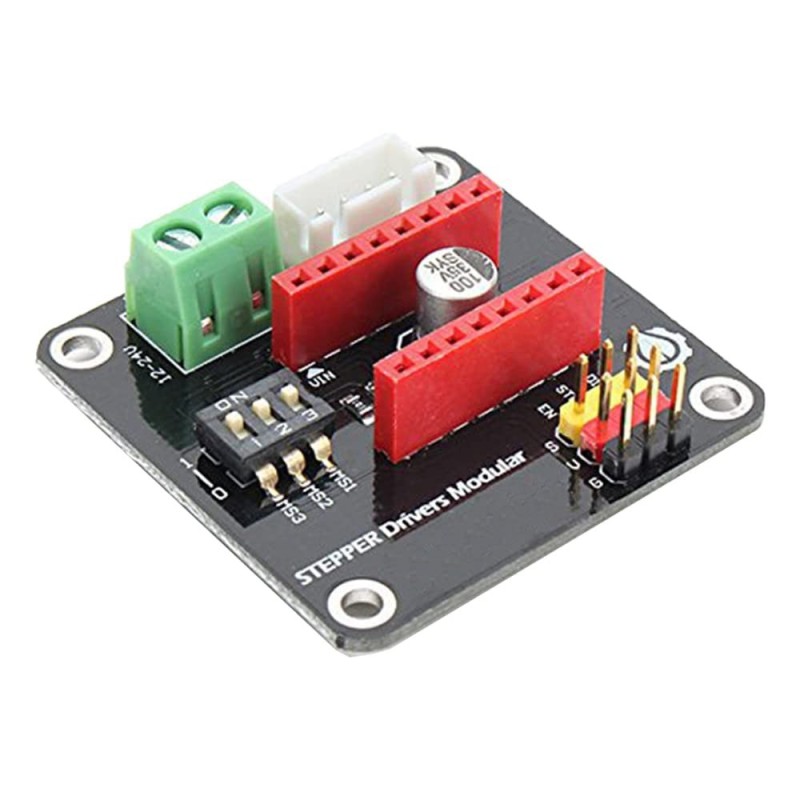

    DRV8825 A4988 Stepper Motor Driver Expansion Board

    RBD-3503

    • DRV8825 A4988 Stepper Motor Driver Expansion Board for easy stepper motor control
    • Compatible with A4988 and DRV8825 driver modules
    • Built-in DIP switch for quick microstepping configuration
    • Supports 12V–30V input voltage for flexible power systems
    • 5V logic interface for direct microcontroller connection
    • Ideal for 3D printers, CNC machines, and robotics projects
    BDT 199
    BDT 199 BDT 199 BDT 199 BDT 199
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 199 Tax excluded
    BDT 199 Tax included
    BDT 0 Tax
    BDT 199 Tax excluded
    BDT 0 Tax
    BDT 199 Tax included
    Quantity
    In-Stock
    33 Items

    9 people have purchased this item
    33 items in stock
    Description

    The DRV8825 A4988 Stepper Motor Driver Expansion Board is a practical and efficient solution for controlling stepper motors in 3D printers, CNC machines, and robotics systems. Designed to support both A4988 and DRV8825 driver modules, this board simplifies wiring and configuration while ensuring stable motor performance. Because it features a built-in DIP switch, users can easily adjust microstepping settings without modifying firmware. Moreover, the terminal power connector enables safe and convenient connection to 12V–30V power supplies. With a 5V logic interface, it connects directly to popular microcontrollers such as Arduino and STM32 boards. Its compact 42mm × 42mm design allows seamless integration into motion control systems. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. Dual Driver Compatibility – Works with both A4988 and DRV8825 modules for flexible system design.

    2. Microstepping Control via DIP Switch – Adjust stepping resolution quickly and easily.

    3. Wide Input Voltage Support – Operates between 12V and 30V for various motor applications.

    4. 5V Logic Interface – Directly compatible with Arduino, STM32, and other microcontrollers.

    5. Standard Control Signals – Dedicated Direction, Enable, and Step (Speed) pins ensure precise motion control.

    6. Compact & Mountable Design – 3mm mounting holes allow secure installation in CNC and printer frames.

    7. Clean Terminal Power Input – Simplifies wiring and improves system reliability.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Applications:

    1. 3D printer control systems (RepRap, Prusa, custom builds).

    2. CNC routers, milling machines, and laser engravers.

    3. Robotics motion control systems.

    4. DIY automation and positioning platforms.

    5. Educational stepper motor experiments and prototyping.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specifications
    Product NameDRV8825 A4988 Stepper Motor Driver Expansion Board
    Board Size42mm × 42mm × 15mm
    Mounting Hole Diameter3mm
    Mounting Hole Pitch35.56mm × 35.56mm (1400 × 1400 mil)
    Logic Voltage5V
    Input Voltage Range12V – 30V
    Interface PortsDirection, Enable, Step (Speed)
    Compatible Driver ModulesA4988, DRV8825
    Recommended Motor TypeNEMA 17 (42mm) Stepper Motor
    Shipment Weight0.011 kg
    Shipment Dimensions5 × 3 × 3 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Package Includes:

    1 x DRV8825 A4988 Stepper Motor Driver Expansion Board
