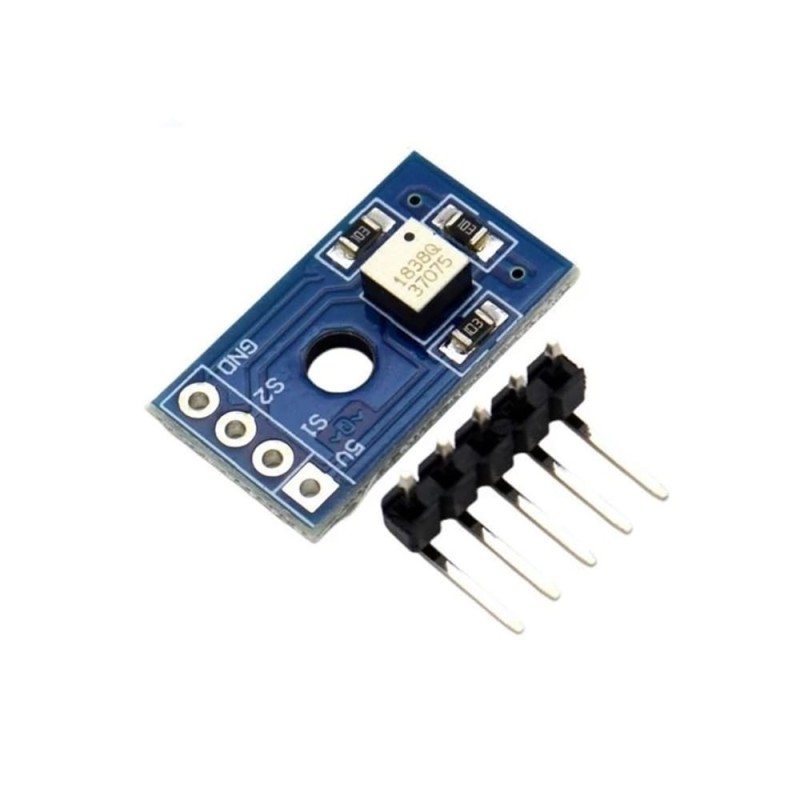

The RPI-1031 Angle Sensor is a high-precision 360° rotation detection module engineered for accurate angular position measurement. Utilizing optical-based sensing principles, it delivers superior precision with an accuracy of ±0.3°, making it ideal for robotics, automation, and industrial applications that demand reliability and accuracy. The compact design (20mm × 12mm × 4mm) and low power consumption make it perfect for embedded systems and IoT applications. Equipped with a digital output interface, the RPI-1031 ensures seamless communication with microcontrollers such as Arduino, ESP32, STM32, and Raspberry Pi. Its robust construction allows stable operation in varied environmental conditions, while its 4-DOF detection capability (pitch, roll, yaw, and rotation) makes it an excellent choice for motion tracking, control feedback systems, and research projects requiring precise angular feedback. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
360° Rotation Detection: Full-range angular sensing for continuous position tracking.
High Accuracy: Provides ±0.3° precision ideal for motion-sensitive systems.
Optical Sensing Technology: Ensures stable, contactless, and wear-free measurement.
Digital Output Interface: Simplifies communication with microcontrollers.
Compact Size: Small 20mm × 12mm × 4mm form factor for easy integration.
Low Power Consumption: Optimized for long-duration embedded or portable devices.
Industrial Durability: Resistant to dust and environmental variations.
Versatile Applications: Suitable for robotics, aerospace, automotive, and research use.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Robotics: Enables precise joint and arm rotation measurement.
Automation Systems: Used in industrial process control and actuator feedback.
Motion Tracking: Ideal for fitness equipment, VR devices, and gaming peripherals.
Aerospace & Automotive: Ensures accurate steering, stability, and flight control.
Smart Home Systems: Supports motorized control mechanisms and automation devices.
Educational & Research Projects: Used for academic experiments and mechatronics studies.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | RPI-1031 |
| Sensor Type | Optical Angle Sensor |
| Measurement Range | 0° – 360° (Continuous Rotation) |
| Accuracy | ±0.3° |
| Output Type | Digital |
| Detection Principle | Optical (Photosensitive Transistor Array) |
| Degrees of Freedom (DOF) | 4 (Pitch, Roll, Yaw, Rotation) |
| Operating Voltage | Low Voltage DC (3.3V – 5V typical) |
| Power Consumption | Low |
| Dimensions | 20mm × 12mm × 4mm |
| Interface Compatibility | Arduino, ESP32, STM32, Raspberry Pi |
| Operating Temperature Range | -20°C to +80°C |
| Material | PCB + Optical Elements |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 3 × 2 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
How It Works
The RPI-1031 Angle Sensor functions using optical principles, detecting rotation using a light-emitting diode (LED) and two photosensitive transistors:
- At rest, the LED is blocked, and both transistors are off, resulting in a low output.
- As the sensor rotates, one transistor receives light, and the other remains blocked, creating a high-low signal pattern.
- At full exposure, both transistors detect light, generating a high-high signal output.
- Further rotation reverses the signals, allowing for precise angle tracking.
Package Includes:
1 x RPI-1031 Angle Sensor
