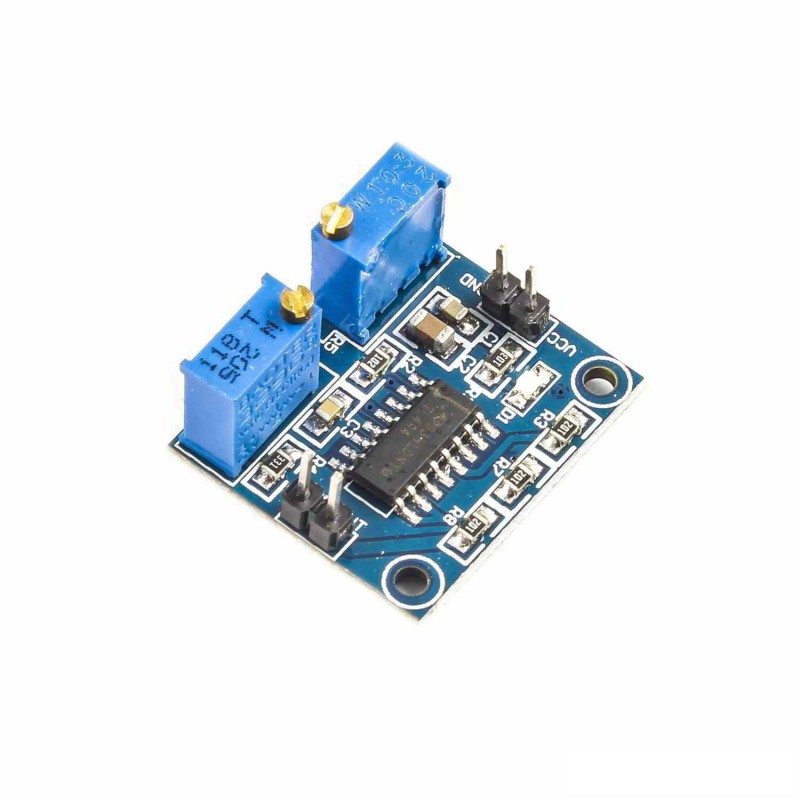

TL494 PWM Adjustable Pulse Generator Module

Reference RBD-3305

PWM signal generator module based on TL494 IC for adjustable frequency and duty cycle control.
Generates 5V PWM output with frequency range 500Hz to 100kHz.
Operates on a wide input voltage range (7V–40V DC).
Adjustable duty cycle and dead time for fine waveform tuning.
Compact 26×23mm module, ideal for embedded and automation applications.
Perfect for motor control, signal testing, power supply design, and frequency regulation.

Description
Product Details

Description

The TL494 PWM Adjustable Pulse Generator Module is a high-performance PWM control module designed for generating precise and stable pulse width modulation signals. Built around the TL494 control IC, it provides adjustable frequency (500Hz–100kHz) and duty cycle, allowing users to fine-tune pulse characteristics for various applications. Operating within a 7V–40V DC input range and delivering a 5V PWM output, it ensures compatibility with microcontrollers, sensors, and electronic circuits. This module supports push-pull or single-ended configurations, features dead-time adjustment, and includes an internal 5V voltage reference for reliable performance. Compact and efficient, the TL494 PWM Generator is widely used in motor speed control, switching power supplies, signal processing, and industrial automation systems, providing consistent and flexible signal generation for advanced electronic designs. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Adjustable Frequency Range: 500Hz to 100kHz for versatile PWM signal generation.
Duty Cycle Control: Fine-tune pulse width for precision applications.
Wide Input Voltage: Operates between 7V and 40V DC for flexible power options.
5V PWM Output: Compatible with logic-level devices and microcontrollers.
High Output Current: Capable of driving loads up to 250mA.
Dead Time Control: Enables fine-tuning of pulse intervals for stability.
Push-Pull or Single-Ended Mode: Suitable for various power and signal configurations.
Stable Internal Reference: Built-in 5V ±5% reference for consistent performance.
Compact Design: Small 26mm × 23mm board fits easily into embedded systems.
Reliable & Efficient: Ideal for signal control, modulation, and waveform testing.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Motor Speed Control: Adjust PWM signals for DC motor drive circuits.
Power Supply Design: Used in switching regulators and converters.
Signal Testing & Simulation: Generates square wave and PWM signals for lab use.
Industrial Automation: Provides timing and control signals for machinery.
LED Dimming: Controls brightness using PWM power regulation.
Embedded Systems: Enables microcontroller-based waveform generation and control.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Model	TL494 PWM Adjustable Pulse Generator
IC Chip	TL494 PWM Controller IC
Operating Voltage	7V – 40V DC
Output Voltage	5V DC
Output Current (Max)	250mA
Frequency Range	500Hz – 100kHz (Adjustable via R6)
Duty Cycle Control	Adjustable
Dead Time Control	Adjustable
Operation Mode	Push-Pull / Single-Ended
Internal Reference Voltage	5V ±5%
Output Signal Type	PWM (Pulse Width Modulated)
Module Dimensions	26mm × 23mm
Power Consumption	Low
Application Areas	Power control, signal generation, automation
Shipment Weight	0.01 kg
Shipment Dimensions	3 × 2 × 2 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x TL494 PWM Adjustable Pulse Generator Module
