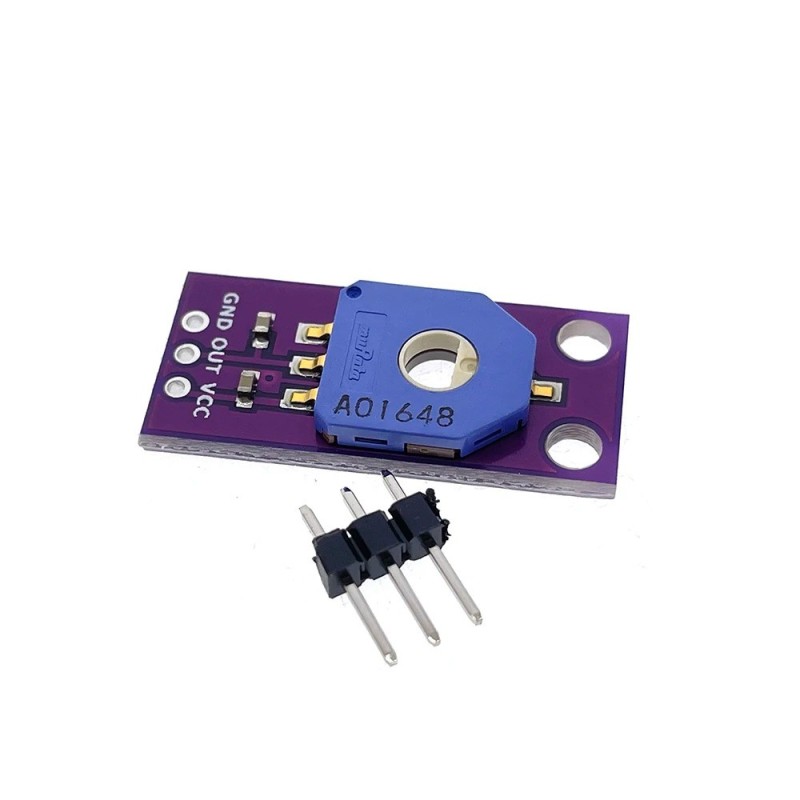

The SV01A103AEA01R00 Dust-Proof Rotation Angle Sensor Module is a high-precision rotary position sensor designed for stable and reliable angle measurement in demanding environments. Based on resistive sensing technology, this module provides smooth analog voltage output proportional to shaft rotation. Because it supports continuous mechanical rotation and a 0° to 333.3° electrical angle range, it delivers accurate position feedback for control systems and motion applications.
With a nominal resistance of 10kΩ and ±2% linearity, this sensor ensures consistent and precise analog output suitable for microcontroller ADC input. Its dust-proof construction, gold-plated SMD terminals, and ultra-thin surface-mount design make it highly durable and suitable for space-constrained PCB layouts. Additionally, it operates reliably within a wide temperature range from -40°C to 85°C.
The D-shaped rotor hole allows secure shaft coupling for gears or motor assemblies. Therefore, it is widely used in automotive systems, robotic joints, electric bicycles, and industrial automation equipment. If your project requires long-lasting, accurate rotary position feedback, this module offers a professional and dependable solution. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Dust-Proof Construction – Maintains stable performance even in harsh environments.
Continuous Mechanical Rotation – Enables flexible rotary applications.
High Linearity (±2%) – Provides accurate and smooth analog position feedback.
10kΩ Resistive Output – Easily interfaces with microcontroller ADC inputs.
Ultra-Thin SMD Design – Suitable for compact PCB layouts.
Gold-Plated Terminals – Enhances durability and solder reliability.
Wide Temperature Operation – Functions from -40°C to 85°C.
Long Lifespan – Withstands up to 1 million rotational cycles.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Robotic Joint Position Feedback – Measures precise angular movement.
Automotive Control Systems – Used in switches and motor drive units.
Electric Bicycle Controllers – Monitors throttle and motor position.
Industrial Automation – Provides analog feedback for motion control systems.
RC Equipment – Enhances precision control in remote systems.
Mechatronics Projects – Suitable for embedded rotary sensing applications.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | SV01A103AEA01R00 |
| Sensor Type | Rotary Position Sensor |
| Technology | Resistive |
| Electrical Rotation Angle | 0° ~ 333.3° |
| Mechanical Rotation | Continuous |
| Output Type | Analog Voltage |
| Resistance | 10kΩ |
| Resistance Tolerance | ±30% |
| Linearity | ±2% |
| Actuator Type | D-shaped Rotor Hole |
| Mounting Type | Surface Mount (SMD Tabs) |
| Operating Temperature | -40°C ~ 85°C |
| Termination | Gold-plated SMD Tabs |
| Lifespan | Up to 1 Million Cycles |
| Shipment Weight | 0.003 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
