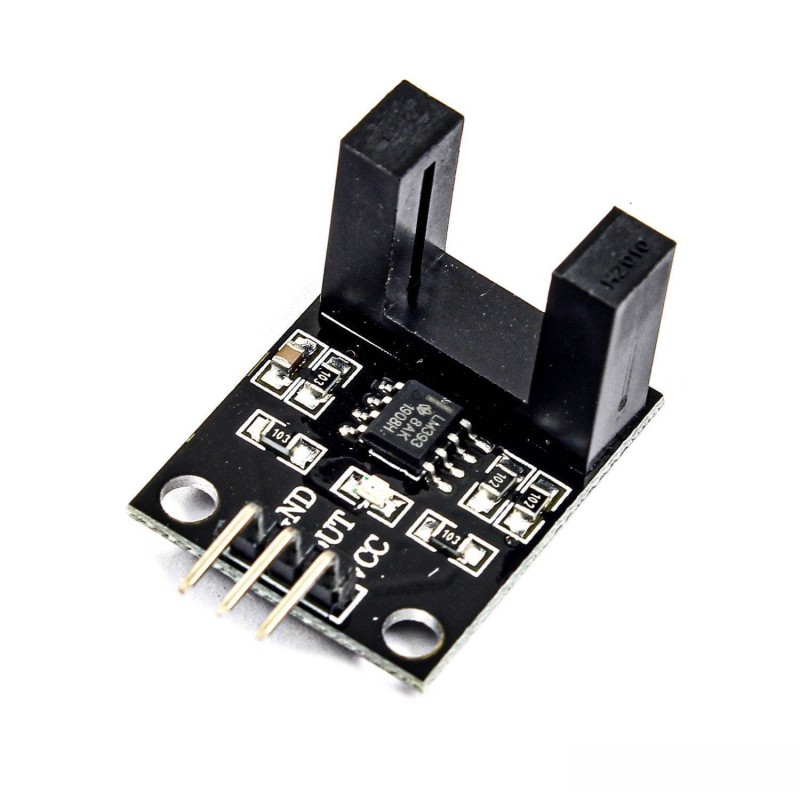

The LM393 Infrared Optocoupler Speed Sensor Module is designed for accurate motor speed measurement, pulse counting, and position detection in microcontroller-based projects. Using an infrared optocoupler sensor, it detects interruptions in the optical path (such as from a slotted wheel), generating a clean pulse output that can be read by Arduino, Raspberry Pi, or other microcontrollers.
The LM393 Infrared Optocoupler Speed Sensor Module is designed for accurate motor speed measurement, pulse counting, and position detection in microcontroller-based projects. Using an infrared optocoupler sensor, it detects interruptions in the optical path (such as from a slotted wheel), generating a clean pulse output that can be read by Arduino, Raspberry Pi, or other microcontrollers.
With its infrared LED and matched phototransistor design, the module minimizes interference from external light sources, ensuring stable and reliable performance even in challenging environments. The onboard LM393 comparator chip processes the signal, providing a clear digital output for further use in motor control and automation systems.
Operating Voltage: DC 5V
Output Signal: Digital pulse output
Chip: LM393 comparator
Dimensions: 32mm x 11mm x 20mm
Output Indicator LED for signal status
High output when path is blocked, low output when unblocked
Immune to interference from ambient light
Simple plug-and-play design for microcontrollers
Motor speed measurement
Workpiece counting systems
Position limit sensing
Pulse counting experiments
Robotics and automation projects
A compact, reliable, and cost-effective solution for real-time speed and counting applications in DIY electronics, robotics, and embedded system projects.
