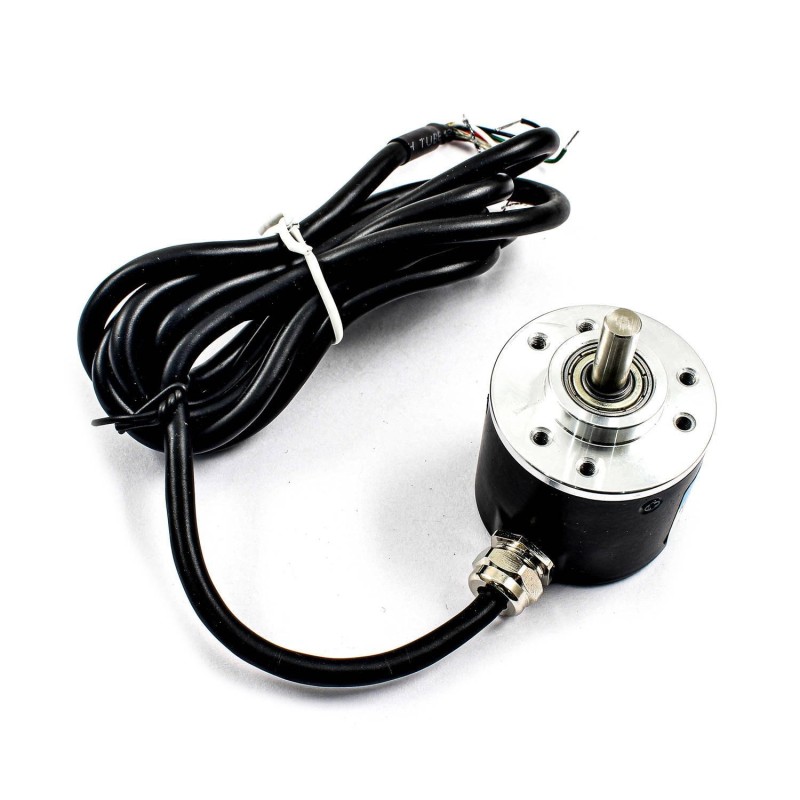

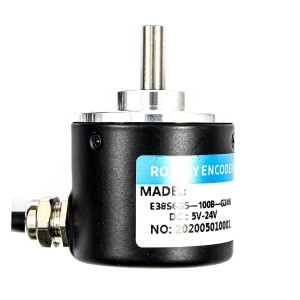

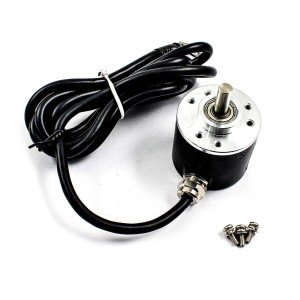

HN3806 Photoelectric Rotary Encoder - 600 P/R, 2-Phase Robotics Bangladesh

LPD3806-600BM-G5-24C Rotary Encoder - 600 P/R, 2-Phase

Reference RBD-3322

High-performance incremental rotary encoder with 600 pulses/rev for precise motion tracking
Wide operating voltage range (DC 5-24V) suitable for various industrial applications
Solid shaft with compact 38mm aluminum body for durability and ease of installation
Supports AB phase output with color-coded wiring for simple integration
Handles mechanical speeds up to 5000 RPM and electrical response frequency of 20K/sec
Includes 1.5m cable and M3 mounting holes for easy and secure setup

Description
Product Details

Description

The LPD3806-600BM-G5-24C Pulse Solid Shaft Rotary Encoder is a compact and robust incremental photoelectric encoder engineered for accurate position and speed sensing in automation, CNC machinery, and robotics applications. With 600 pulses per revolution and AB phase output, it delivers precise digital feedback for rotational movement. This encoder supports a wide voltage range of 5V to 24V and operates reliably at mechanical speeds up to 5000 RPM. Built from durable polyamide with a 38mm diameter body and 6mm x 13mm shaft, it features a high-speed response of 20K/sec and a compact design for space-constrained installations. The 1.5m integrated cable and clearly labeled wire connections (Green=A, White=B, Red=VCC, Black=GND) simplify setup and wiring. Ideal for use in motor control, automation systems, and measurement equipment. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

High-Resolution Output: Provides 600 pulses per revolution for accurate incremental position feedback.
Wide Voltage Compatibility: Operates on DC 5V to 24V, making it compatible with a variety of systems.
Durable Construction: Compact, polyamide-built 38mm encoder body with solid shaft for long-term reliability.
High-Speed Capability: Supports up to 5000 RPM and 20K/sec electrical response for fast applications.
Color-Coded Wiring: Clearly marked 4-wire connection ensures easy and error-free integration.
Integrated Cable: Includes a 1.5m cable for flexible and extended installations.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

CNC Machines: Use for spindle and axis position tracking in CNC routers and milling machines.
Robotics: Monitor and control joint positions or wheel rotations in robotic systems.
Industrial Automation: Accurate motion feedback in conveyor belts, pick-and-place machines, and sorting systems.
3D Printers and Plotters: Enhance precision in platform positioning and movement synchronization.
Motor Control Systems: Feedback loop for speed and direction control in servo and stepper motor applications.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Model	LPD3806-600BM-G5-24C
Output Type	AB Phase Incremental
Pulse Per Revolution	600 PPR
Operating Voltage	DC 5-24V
Maximum Mechanical Speed	5000 RPM
Electrical Response Frequency	20K/sec
Integrated Speed	2000 RPM
Shaft Size	6mm diameter x 13mm length
Encoder Body Diameter	38mm
Axis Platform Height	5mm, 20mm
Mounting Hole Type	M3 screw compatible
Material	Polyamide
Cable Length	1.5 meters
Wire Connection	Green: A, White: B, Red: VCC, Black: GND
Shipment Weight	0.315 kg
Shipment Dimensions	15 x 10 x 5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Internal link to related products like Incremental Encoders or Motor Drivers
Rotary encoder

Package Includes:

1 x HN3806 Photoelectric Rotary Encoder - 600 P/R, 2-Phase
