Pure Sine Wave Inverter Driver Board EGS002 Display Screen

Reference RBD-3302

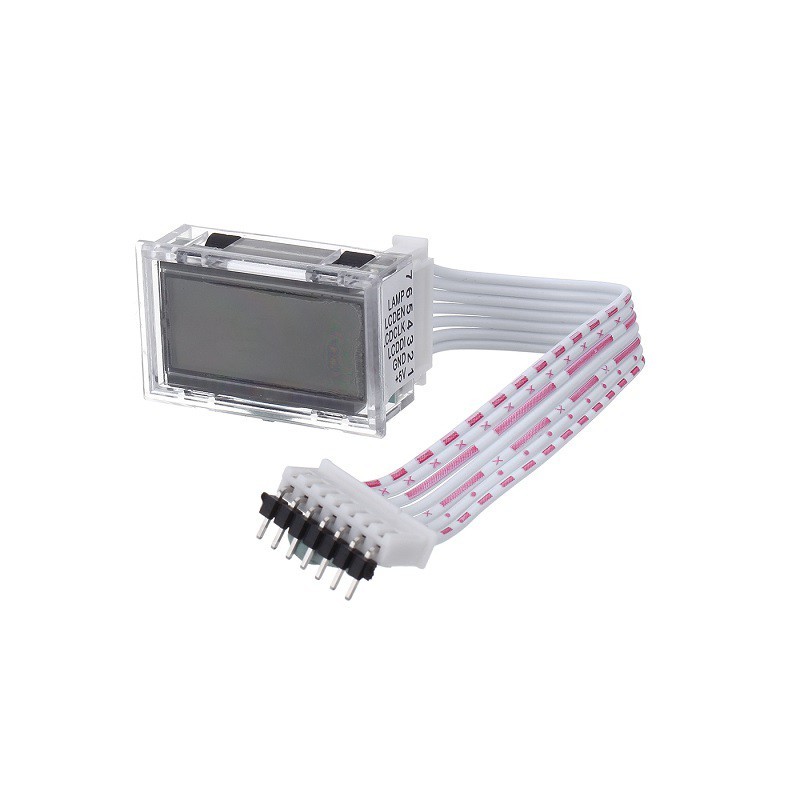

LCD Display Screen designed for use with EGS002 Pure Sine Wave Inverter Driver Board.
Compatible with EG8010 chip, supporting 128×32 LCD (default) or LCD3220 displays.
Includes a 110mm shielding cable to minimize electrical interference.
Ideal for testing and monitoring inverter output parameters.
Widely used in pure sine wave inverters, solar, wind, and UPS systems.
Ensures stable operation and reliable real-time display performance.

Description
Product Details

Description

The Pure Sine Wave Inverter Driver Board EGS002 Display Screen is a dedicated LCD display module designed to work seamlessly with the EGS002 inverter driver board. It allows users to monitor and test the built-in display functions of the EG8010 sine wave inverter controller chip. Supporting both 128×32 LCD (default) and LCD3220 models, this display module provides flexibility for various inverter setups. The included 110mm shielding cable ensures stable communication between the display and the inverter board by reducing high-voltage interference in power-intensive environments. This screen is commonly used in solar inverters, uninterruptible power supplies (UPS), photovoltaic converters, and digital generator systems, providing real-time data visualization for performance monitoring and control. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Dedicated EGS002 Compatibility: Designed to pair perfectly with EGS002 inverter driver boards.
Supports EG8010 Chip: Displays real-time parameters and control information.
Dual Display Options: Works with 128×32 LCD (default) and optional LCD3220 screens.
Shielded Connection Cable: 110mm cable minimizes EMI interference for stable operation.
Durable and Compact Design: Easy to integrate into inverter enclosures or testing setups.
Wide Application Use: Suitable for solar, wind, and UPS inverter systems.
User-Friendly Monitoring: Enables clear, real-time display of inverter performance.
Easy Installation: Plug-and-play connection with EGS002 board.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Pure Sine Wave Inverters: Used to monitor output waveform and voltage status.
Photovoltaic Power Systems: Ideal for solar inverter control and feedback.
Wind Power Inverters: Monitors system output and inverter efficiency.
UPS (Uninterruptible Power Supply): Ensures stable and efficient power management.
Digital Generator Systems: Displays waveform and power conversion parameters.
AC Motor Controllers: Used in speed and frequency regulation systems.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Model	EGS002 Display Screen
Compatible Board	EGS002 Pure Sine Wave Inverter Driver
Controller Chip Support	EG8010
Display Type	LCD (128×32 Default / LCD3220 Optional)
Cable Length	110mm (Shielded)
Interface Type	LCD Interface Connector
Power Supply Requirement	From EGS002 board
Communication Type	Parallel Data Interface
Functionality	Real-time display of inverter parameters
Application Fields	Solar, Wind, UPS, Generator, Motor Drive
Display Dimensions (Approx.)	Compact module size
Operating Environment	High-voltage inverter compatible
Installation Type	Plug-and-play connector design
Shipment Weight	0.02 kg
Shipment Dimensions	5 × 4 × 1 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x Pure Sine Wave Inverter Driver Board EGS002 Display Screen
