Capacitance & Inductance Meter with Frequency Measurement DIY Electronic Kit 8051 MCU Based Solderable

Product Description

The HU-053 DIY Capacitance, Inductance, and Frequency Meter Kit is a multi-functional measuring instrument designed around a 51-series microcontroller. It allows hobbyists, students, and engineers to measure capacitors, inductors, and frequencies with ease while also serving as a practical soldering and learning project.

This kit provides hands-on experience in assembling and soldering electronic components while deepening your understanding of microcontroller applications and the principles of measuring frequency, capacitance, and inductance. A perfect choice for DIY enthusiasts, educational training, and lab experiments.

Key Features

• 3-in-1 Measuring Instrument: Measures capacitance, inductance, and frequency.

• Wide Ranges Supported:

  • Non-polar capacitance: 1pF – 2200pF

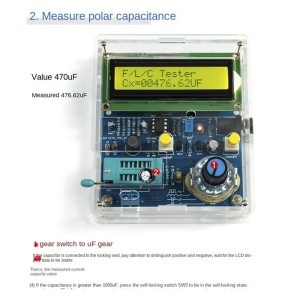

  • Polar electrolytic capacitance: 1µF – 12000µF

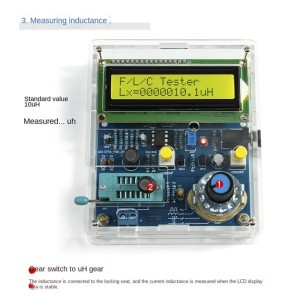

  • Inductance: 1µH – 1H

  • Frequency: 20Hz – 400KHz

• Microcontroller-Based Design: Stable and reliable measurements with a 51 monolithic MCU.

• DIY Soldering Practice: Gain valuable soldering skills and practical electronics knowledge.

• Educational Value: Learn about circuit design, measurement principles, and assembly techniques.

• USB Powered: Easy to power via a standard 5V USB connection.

Technical Specifications

• Kit Model: HU-053

• Supply Voltage: 5V DC (USB powered, DC socket)

• Capacitance Range:

  • Non-polar: 1pF ~ 2200pF

  • Polar (electrolytic): 1µF ~ 12000µF

• Inductance Range: 1µH ~ 1H

• Frequency Range: 20Hz ~ 400KHz

• Material: ABS + PCB (solderable kit)

• Color: As shown (may vary slightly)

Applications

• Electronic component measurement (capacitors, inductors, oscillators)

• DIY electronics and soldering practice

• Educational and lab projects for microcontroller applications

• Hobby electronics prototyping and troubleshooting

Package Includes

• 1 × Capacitance, Inductance & Frequency Meter Kit (DIY soldering set)

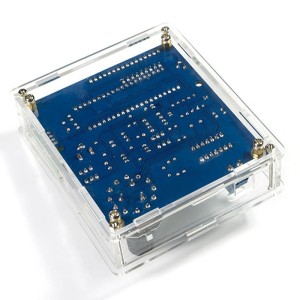

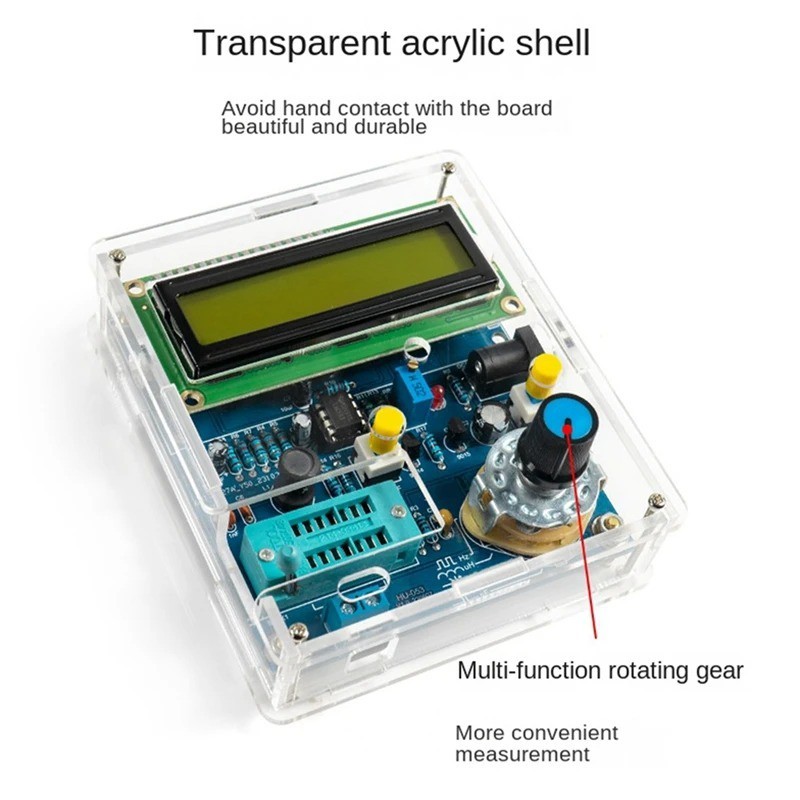

• 1 × Protective casing (delivered as parts, assembly required)

• Additional accessories (may vary, does not affect functionality)

(Note: Capacitors, inductors, or other components to measure are not included.)

Why Choose This Kit?

This kit is more than just a measuring instrument—it’s a learning platform. With its hands-on assembly, wide measurement range, and practical applications, it’s the perfect choice for electronics students, DIY hobbyists, and experimenters who want both knowledge and functionality.

 Build, learn, and measure with the HU-053 DIY Capacitance & Inductance Meter Kit—a complete educational tool and practical tester in one!
