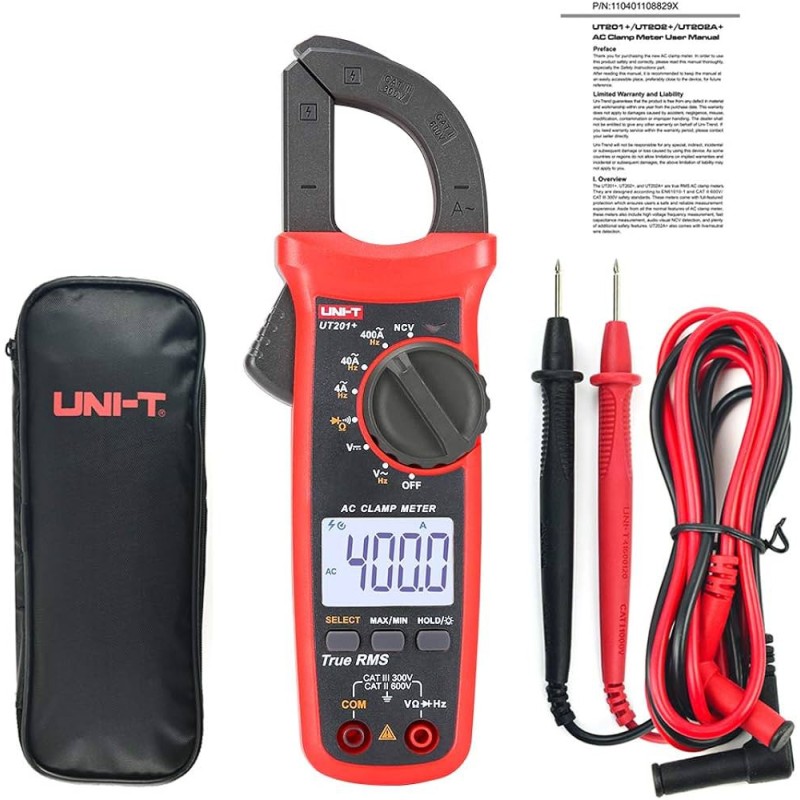

The UNI-T UT201+ Digital Clamp Meter is an essential tool for accurate and efficient electrical testing, designed to meet the demands of both professionals and DIY enthusiasts. With a 4000-count display, True RMS technology, and the ability to measure AC current up to 400A, this multimeter is equipped to handle complex waveforms reliably. It also provides AC/DC voltage, resistance, and frequency measurements, making it versatile for a range of tasks in maintenance, installation, and troubleshooting. This clamp meter prioritizes safety with a CAT III 300V/CAT II 600V rating, and convenient features like auto-ranging, Data Hold, MAX/MIN recording, and continuity testing streamline the testing process. With a compact design and user-friendly interface, the UT201+ is the ideal companion for accurate, reliable diagnostics. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- True RMS Technology: Ensures precise AC current measurements on complex waveforms.
- 400A AC Current Measurement: Reliable for a wide range of electrical diagnostic tasks.
- Multi-Functionality: Measures AC/DC voltage, resistance, and frequency up to 10kHz.
- Enhanced Safety: CAT III 300V/CAT II 600V safety ratings for professional use.
- User-Friendly Functions: Features auto-ranging, Data Hold, MAX/MIN recording, and NCV detection.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Electrical Diagnostics: Perfect for measuring AC current and voltage in commercial or residential settings.
- Installation and Maintenance: Suitable for installation tasks where voltage, continuity, and frequency testing are required.
- Troubleshooting: Helps identify electrical issues in appliances, HVAC systems, and automotive applications.
- DIY Electrical Work: Ideal for home users needing a reliable tool for safe electrical measurements.
- Electronics Testing: Measures frequency up to 10kHz, expanding its use in electronics and repair projects.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | UT201+ |
| Display Count | 4000 |
| True RMS | Yes |
| AC Current Measurement | Yes, up to 400A |
| AC/DC Voltage Measurement | Yes, up to 600V |
| Frequency Measurement | Yes, up to 10kHz |
| Continuity Test | Yes |
| MAX/MIN Recording | Yes |
| Jaw Opening | 28mm |
| Safety Rating | CAT II 600V / CAT III 300V |
| NCV (Non-Contact Voltage) | Yes |
| Power Supply | 1.5V Battery (R03) x 2 |
| Product Dimensions | 215 x 63 x 36 mm |
| Product Weight | 235g |
| Shipment Weight | 0.350 kg |
| Shipment Dimensions | 22 x 10 x 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
| Specification | Range | Accuracy |
| AC Current (A) | Up to 400A | ±(2% +10) |
| AC Voltage (V) | Up to 600V | ±(0.8% +5) |
| AC Voltage Frequency | 10Hz - 10kHz | ±(1% +5) |
| DC Voltage (V) | Up to 600V | ±(0.5% +2) |
| Resistance (Ω) | Up to 40MΩ | ±(0.8% +2) |
| Frequency (Hz) | 10Hz - 10kHz | ±(1% +5) |
Package Includes:
1 x UNI-T UT201+ Digital Clamp Meter AC Current Auto Range True RMS Multimeter
