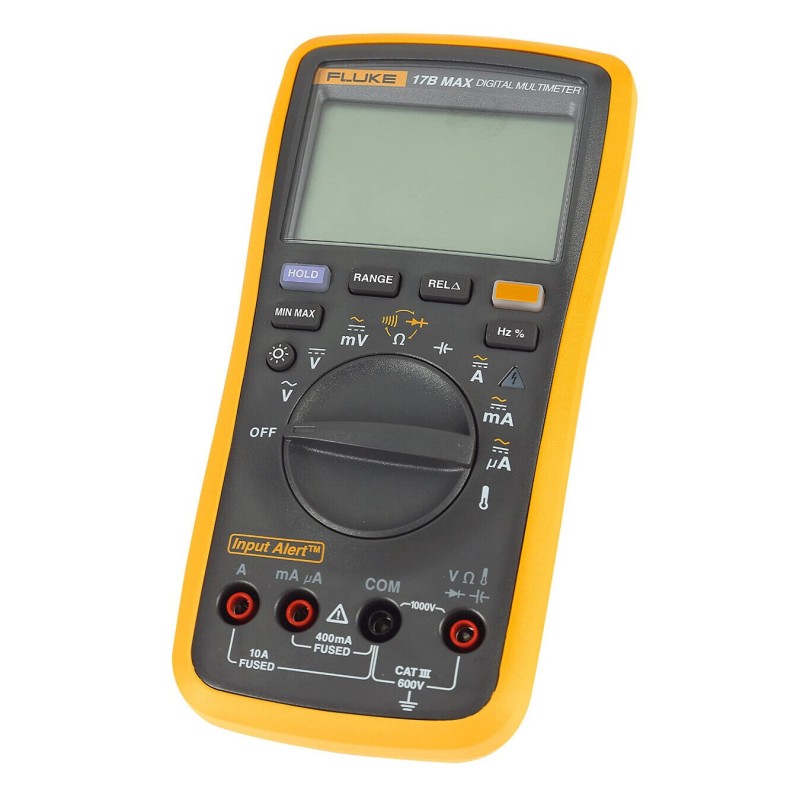

Fluke 17B MAX Digital Multimeter

Product Description:

Designed for professionals and electronics enthusiasts alike, the Fluke 17B MAX Digital Multimeter builds upon the legacy of the popular 17B+ model with enhanced functionality, robust protection, and improved ease of use. Ideal for both field and bench applications, the 17B MAX features audible and visual alerts for incorrect connections, fine-tip leads for PCB-level precision, and a straightforward interface for effortless operation.

Whether you're measuring voltage, current, resistance, frequency, capacitance, or temperature, the 17B MAX ensures dependable accuracy, extended battery life, and built-in safety features conforming to CAT III 600V ratings.

Key Features:

• Audible & Visual Alerts: Instantly identifies incorrect probe connections for added safety.

• Fine Tip Test Leads: Ideal for precision measurements on circuit boards.

• Smart Sleep Mode: Instantly wakes with a button press for uninterrupted workflow.

• Wide Measurement Range: Voltage up to 1000V, current up to 10A, capacitance up to 2000μF.

• Frequency & Temperature Measurement: Expands versatility for electronic and HVAC applications.

• CAT III 600V Safety Rated: Certified for high-reliability industrial and commercial environments.

Technical Specifications:

Voltage Measurement

• DC Voltage: 6.000V to 1000V (±0.5% + 3 digits)

• AC Voltage (40Hz–500Hz): 6.000V to 1000V (±1.0% + 3 digits)

Current Measurement

• DC & AC Current: 400μA to 10.00A (±1.5% + 3 digits)

Resistance & Capacitance

• Resistance: 400Ω to 40MΩ (±0.5% to ±1.5%)

• Capacitance: 40nF to 2000μF (±2% to ±5%)

Frequency / Duty Cycle

• Frequency: 50Hz to 100kHz (±0.1% + 3 digits)

• Duty Cycle: 1% to 99%

Temperature Measurement

• Range: -55°C to 400°C (±2% or 9% depending on range)

Other Functions

• Continuity Test: Audible beep at <70Ω

• Diode Test: Up to 2.000V

Input Characteristics

• Input Impedance: >10MΩ (V), >1MΩ (mV)

• CMRR (DC): >100dB @ 50/60Hz

Build and Safety

• Display: 6000-count LCD, updates 3 times/sec

• Battery: 2 × AA (500+ hours battery life)

• Dimensions: 183 × 91 × 49.5mm

• Weight: 455g

• Ingress Protection: IP40

• Safety: IEC61010 CAT III 600V

Applications:

• Electronic R&D and repair

• Industrial system diagnostics

• HVAC temperature monitoring

• Circuit design and verification

• Education and lab use

Package Includes:

• 1 x Fluke 17B MAX Digital Multimeter

• 1 x Set of fine-tip test leads

• 2 x AA Batteries (pre-installed)

• 1 x User Manual

Why Choose the Fluke 17B MAX?

Fluke's reputation for reliability, precision, and safety is unmatched, and the 17B MAX continues that legacy with enhanced alerts, durable design, and essential measurement capabilities tailored for modern technicians and engineers.
