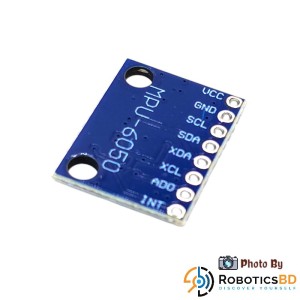

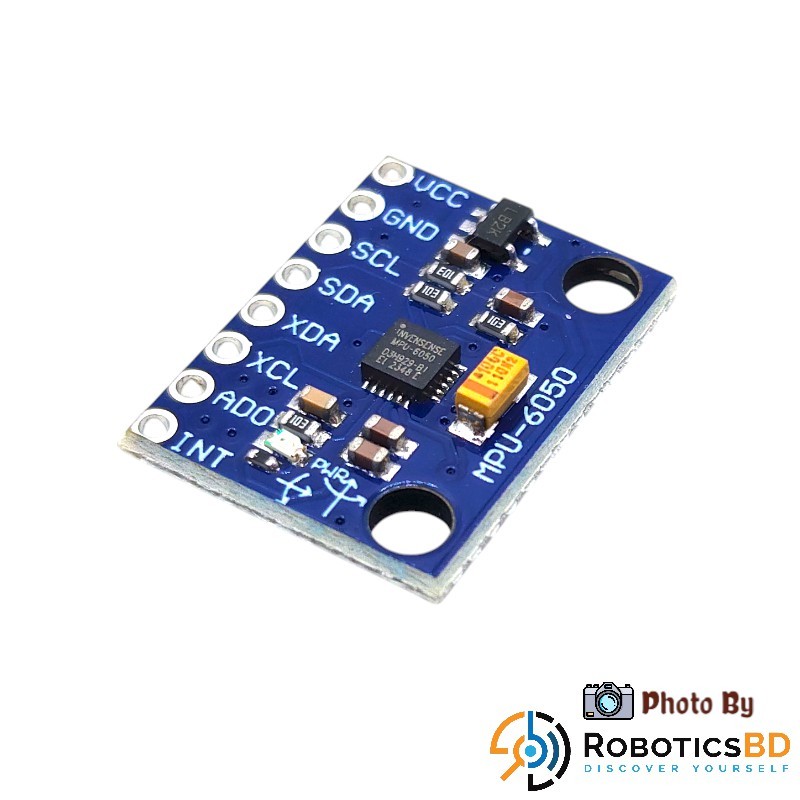

The 6DOF Accelerometer Gyroscope GY-521 MPU-6050 is a compact and powerful motion tracking module that combines a 3-axis accelerometer and 3-axis gyroscope into a single chip. Built around the MPU-6050 sensor, this module features a 16-bit analog-to-digital converter, delivering precise and stable motion data output through the I2C communication protocol.
Operating between 3V and 5V, the GY-521 module easily interfaces with popular development boards such as Arduino, STM32, ESP32, and Raspberry Pi. It supports selectable gyroscope ranges (±250, ±500, ±1000, ±2000 °/s) and accelerometer ranges (±2g, ±4g, ±8g, ±16g). Therefore, it is suitable for both low-speed tilt detection and high-speed motion measurement.
The built-in Digital Motion Processor (DMP™) offloads complex motion fusion calculations from the main microcontroller. As a result, you can obtain processed outputs like quaternion, Euler angles, or raw sensor data without heavy computation on your MCU. Additionally, the onboard temperature sensor improves calibration accuracy and system stability.
If you are building a self-balancing robot, drone flight controller, gesture recognition system, or motion tracking device, this GY-521 MPU-6050 module provides a reliable and cost-effective solution. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
6 Degrees of Freedom (6DOF) – Combines 3-axis accelerometer and 3-axis gyroscope in one module.
16-bit High-Resolution ADC – Ensures accurate digital motion data output.
I2C Communication Interface – Simple two-wire interface for easy microcontroller integration.
Digital Motion Processor (DMP™) – Handles complex motion fusion internally.
Selectable Sensitivity Ranges – Adjustable gyro and acceleration ranges for flexible applications.
Built-in Temperature Sensor – Improves stability and runtime calibration.
Compact Design (20mm × 16mm) – Easy to integrate into small robotics and drone systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Self-Balancing Robots – Maintain stability using tilt and orientation data.
Drone Flight Controllers – Monitor rotation and acceleration for stable flight.
Gesture Recognition Systems – Detect motion patterns and hand movements.
IoT Motion Detection Devices – Track movement and orientation changes.
Gaming & VR Projects – Implement motion-based control systems.
Educational Embedded Projects – Learn IMU sensor interfacing and motion tracking.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Module Name | GY-521 |
| Driver IC | MPU-6050 |
| Sensor Type | 3-Axis Accelerometer + 3-Axis Gyroscope |
| ADC Resolution | 16-bit |
| Operating Voltage | 3V – 5V DC |
| Communication Protocol | I2C / IIC |
| Gyroscope Range | ±250, ±500, ±1000, ±2000 °/s |
| Accelerometer Range | ±2g, ±4g, ±8g, ±16g |
| Built-in Features | DMP™, Temperature Sensor |
| Length | 20 mm |
| Width | 16 mm |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 3 × 2 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x 6DOF Accelerometer Gyroscope GY-521 MPU-6050
