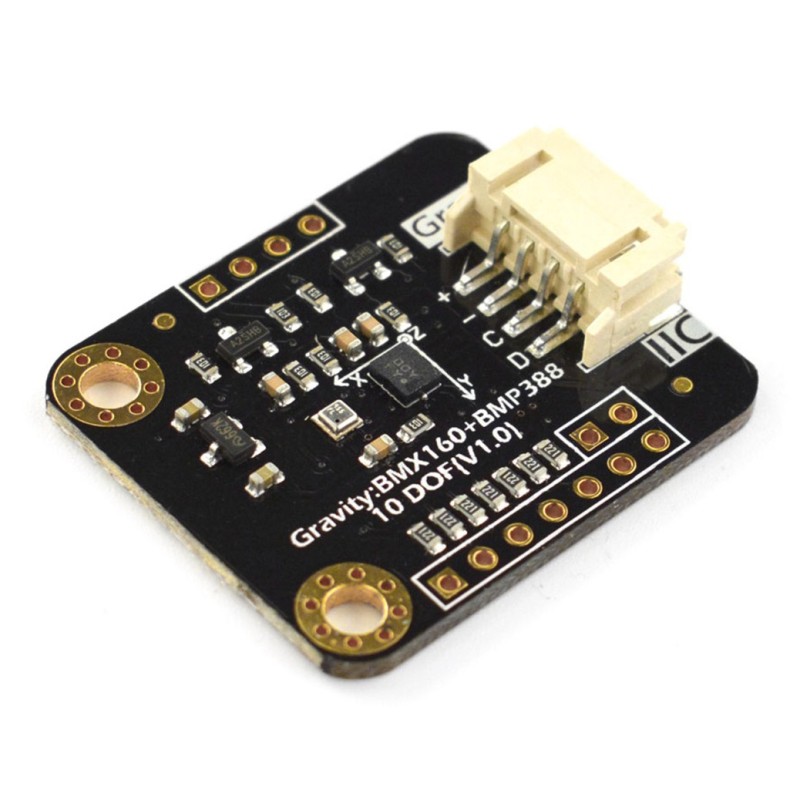

    Gravity BMX160+BMP388 10 DOF Sensor

    RBD-3654
    DFRobot

    The product is a compact 10 DOF sensor module for drones, combining 9-axis orientation and barometric pressure sensors, ideal for height and orientation measurement.

    BDT 3,850
    BDT 3,850 BDT 3,850 BDT 3,850 BDT 3,850
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 3,850 Tax excluded
    BDT 3,850 Tax included
    BDT 0 Tax
    BDT 3,850 Tax excluded
    BDT 0 Tax
    BDT 3,850 Tax included
    Quantity
    Last items in stock
    3 Items

    Only 3 items left in stock
    Description

    Introduction

    The BMX160 9-axis absolute orientation sensor from Bosch Sensortec is an ideal solution for applications that face strict constraints of board space, power consumption and appearance, especially for wearable device like smart watches or augmented reality glasses. This BMX160 sensor is the smallest 9-axis sensor in the industry. It comprises an accelerometer, gyroscope and geomagnetic sensor in a single package, and features less than 1.5mA power consumption. Combined with BSX sensor data fusion software library of Bosch Sensortec, the sensor performance can be further improved.

    BMP388 is a high performance barometric pressure sensor with compact body, high resolution, and the smallest size in same series. The BMP388 delivers outstanding altitude stabilization in drones, where accurate measurement of barometric pressure provides the essential altitude data for improving flight stability and landing accuracy.

    This module is a combination of BMX160 and BMP388 from DFRobot, which is perfectly suitable for using in drone applications to measure height, attitude and orientation.

    Features

    • Low Power
    • Low Noise
    • High accuracy
    • Small in Size
    • Acceleration Measurement
    • Angular Velocity Measurement
    • Barometric Pressure Measurement
    • Temperature Measurement

    Specification

    • BMX160 9-axis Sensor

      •  Accelerometer: ±2g/±4g/±8g/±16
      •  Gyroscope: ±125°/s~2000°/s
      •  Geomagnetic Sensor: ±1150uT(x-,y-axis);±2500uT(z-axis)
      •  Resolution: 0.3μT
    • BMP388 Barometric Pressure & Temperature Sensor

      • Operation Range: 300-1250 hPa
      • Relative Accuracy Pressure: ±0.08 hPa (equivalent to ±0.66m @700-900hPa, 25℃-40℃)
      • Absolute Accuracy Pressure: ±0.5 hPa（0℃-65℃@300-1100hPa）
      • Temperature Coefficient Offset: ±0.75 Pa/K（-20℃-65℃@700-1100hPa）
      • Absolute Accuracy Temperature: ±0.5℃（@0℃-65℃）
    • Operating Temperature: -40℃~80℃ (more accurate in 0℃-65℃)

    • Dimension: 27mm x 32mm/1.06 x 1.26”

    Documents

    Shipping List

    • Gravity: BMX160+BMP388 10 DOF Sensor x1
    • PH2.0-4P Connector x1
