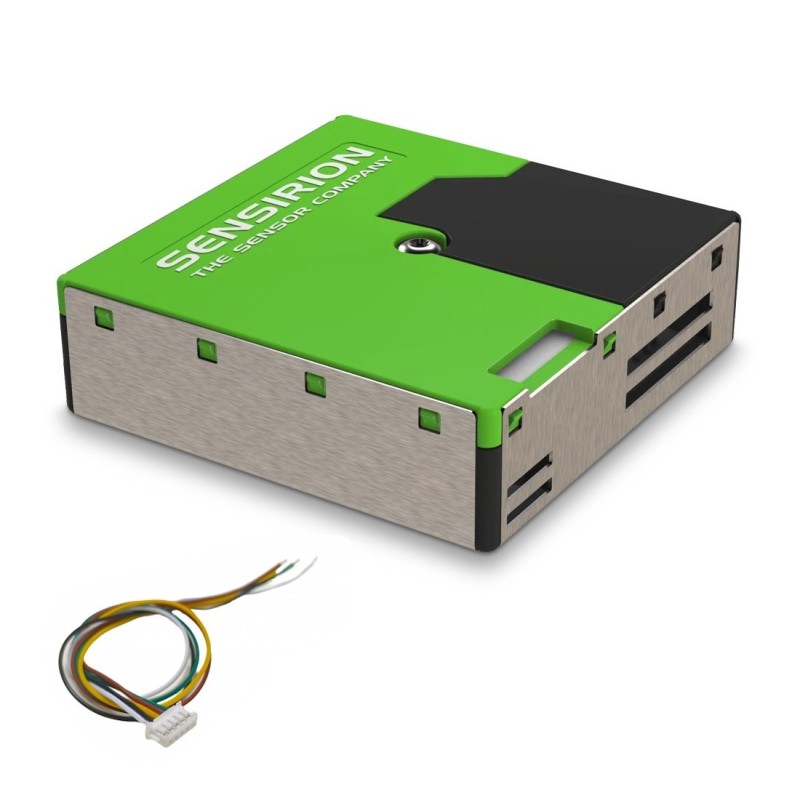

The Sensirion SPS30 Particulate Matter Sensor is a cutting-edge optical PM sensor engineered for high-accuracy air quality measurement. Leveraging laser scattering technology and Sensirion’s proprietary contamination-resistance design, the SPS30 delivers precise and stable readings for PM1.0, PM2.5, PM4.0, and PM10 particle sizes. It measures both the mass and number concentration of airborne particles, providing comprehensive air quality data with ±10% accuracy. With a compact 41×41×12 mm form factor, this sensor integrates effortlessly into IoT devices, smart air purifiers, and HVAC systems. The long-lasting design ensures over 10 years of continuous performance, supported by a self-cleaning fan that minimizes dust buildup. Featuring both I²C and UART digital interfaces, the SPS30 is ideal for developers and engineers designing next-generation environmental and health monitoring systems. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
High-Precision Measurement: Measures PM1.0, PM2.5, PM4.0, and PM10 with ±10% precision.
Laser Scattering Technology: Provides accurate particle detection and size classification.
Dual Output Data: Supports mass and number concentration measurements.
Long-Term Reliability: Over 10 years of stable operation with self-cleaning mechanism.
Contamination-Resistant Design: Maintains consistent accuracy in dusty environments.
Compact and Lightweight: Small footprint (41mm × 41mm × 12mm) ideal for embedded use.
Low Power Consumption: Operates efficiently with an average current of 55mA.
Digital Communication: Supports both I²C and UART for easy integration.
Fully Calibrated: Ready-to-use output with no additional calibration required.
Environmentally Friendly: Enables smart solutions for air quality improvement and health safety.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Air Quality Monitoring: Detects PM concentration in indoor and outdoor environments.
Smart Home Devices: Used in air purifiers, air conditioners, and HVAC systems.
Environmental Research: Supports air pollution tracking and environmental impact studies.
Industrial Monitoring: Ensures clean manufacturing conditions and emission control.
Health and Safety Systems: Monitors PM2.5 levels linked to respiratory and cardiovascular health risks.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Sensor Model | Sensirion SPS30 |
| Measurement Principle | Laser scattering optical sensing |
| Detected Particle Sizes | PM1.0, PM2.5, PM4.0, PM10 |
| Mass Concentration Range | 0 – 1000 µg/m³ |
| Accuracy | ±10% of reading |
| Lifetime | >10 years (self-cleaning fan) |
| Supply Voltage | 4.5V – 5.5V |
| Average Current | 55 mA |
| Max Current | 80 mA |
| Communication Interface | I²C and UART |
| Output Type | Digital (fully calibrated) |
| Dimensions | 41 mm × 41 mm × 12 mm |
| Operating Temperature | -10°C to +60°C |
| Applications | Air purifiers, HVAC, environmental monitoring, IoT systems |
| Shipment Weight | 0.028 kg |
| Shipment Dimensions | 6 × 5 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x Sensirion SPS30 Particulate Matter Sensor for PM2.5 Air Quality Monitoring and Control
