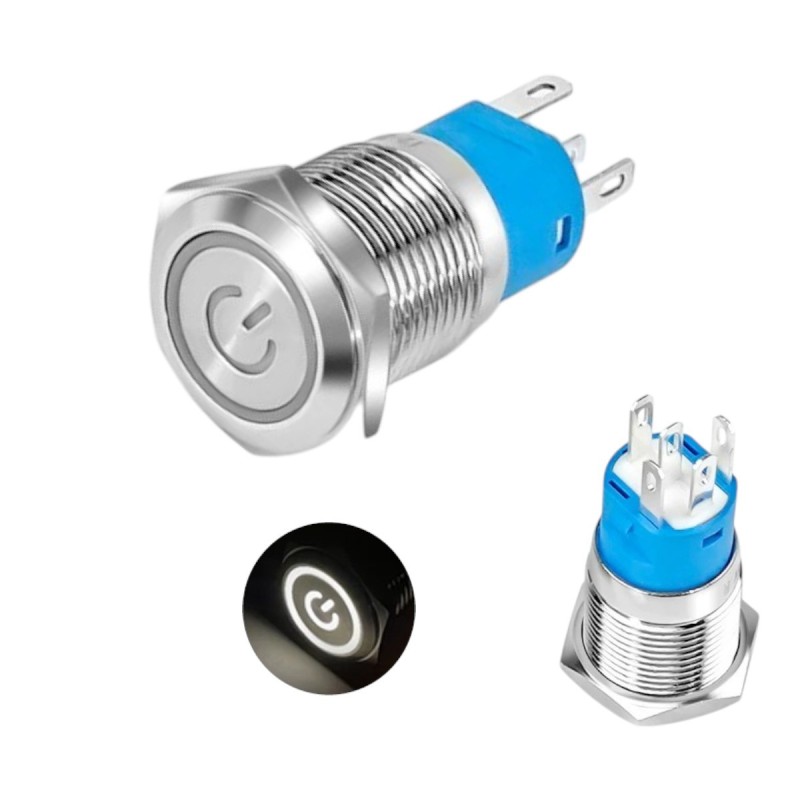

    Metal Power Pushbutton with White LED Ring - 16mm Momentary

    RBD-3371

    • Rugged chrome-plated metal pushbutton with White LED ring
    • Ideal for panels up to 1/2" thick
    • Easy installation with a simple drill hole
    • Built-in resistor for LED
    • Supports 3 to 6V for LED operation
    • Momentary pushbutton design
    BDT 199
    BDT 199 BDT 199 BDT 199 BDT 199
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 199 Tax excluded
    BDT 199 Tax included
    BDT 0 Tax
    BDT 199 Tax excluded
    BDT 0 Tax
    BDT 199 Tax included
    Quantity
    In-Stock
    47 Items

    4 people have purchased this item
    47 items in stock
    Description

    Enhance your control panels with the stylish and durable Metal Pushbutton with White LED Ring - 16mm Momentary. This chrome-plated metal button features a sleek design, a vibrant White LED ring, and a momentary pushbutton mechanism. It's perfect for a wide range of applications, from industrial control panels to home automation projects. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. Chrome-plated metal construction for durability and aesthetics
    2. White LED ring for clear visual indication
    3. Momentary pushbutton design for easy operation
    4. Built-in resistor for LED
    5. Supports 3 to 6V for LED operation
    6. Versatile wiring options for LED
    7. Easy installation with a simple drill hole

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Applications:

    1. Industrial control panels
    2. Automation systems
    3. Robotics
    4. Medical equipment
    5. Home automation projects
    6. DIY electronics projects

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    Drill hole diameter16mm
    Switch rating3A / 250VDC
    Switch contacts1 NO, 1 NC
    MaterialChrome plated brass
    Contact resistance1000 Mohm
    Temperature-20 C to +55 C
    Mechanical life> 500,000
    Electrical life> 50,000
    Panel thickness1-13mm
    Operating pressure1.5 - 2.5 N
    Operating stroke2mm
    Lamp rated voltage6V
    Shipment Weight0.015 kg
    Shipment Dimensions5 × 3 × 3 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation:

    Package Includes:

    1 x Metal Power Pushbutton with White LED Ring - 16mm Momentary
