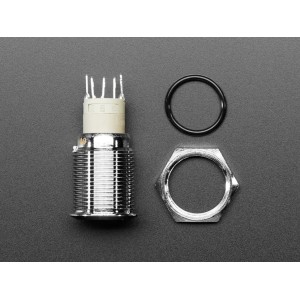

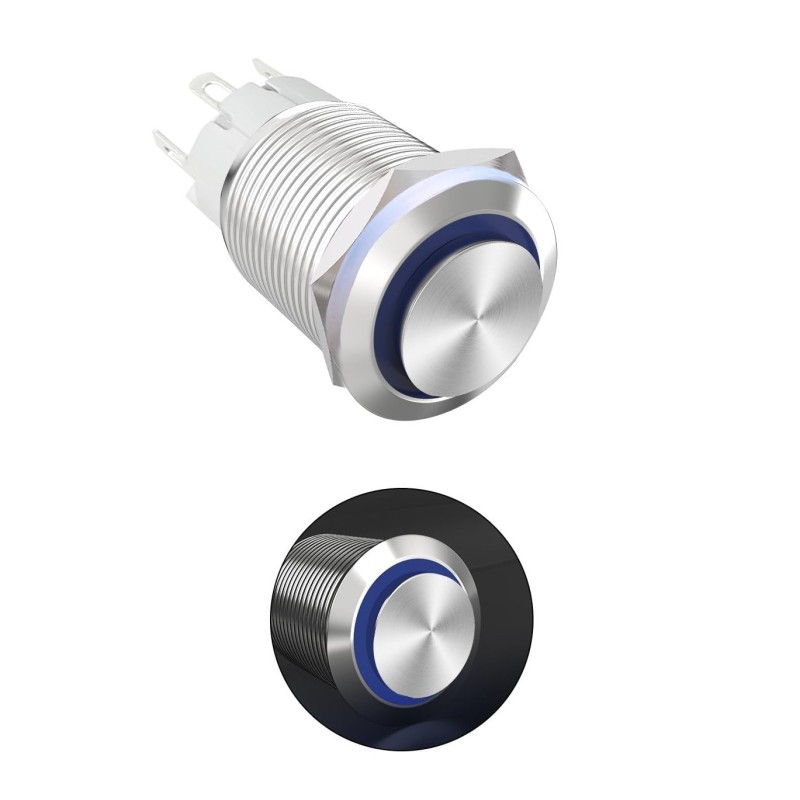

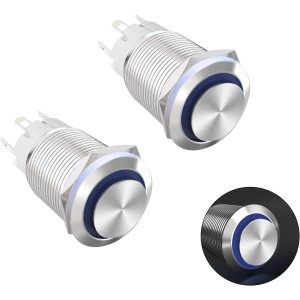

Metal Self-Locking Switch with Blue LED Ring - 16mm Latching

Reference RBD-0892

Rugged chrome-plated metal pushbutton with red LED ring
Latching design for maintaining the switch state
Built-in resistor for LED
Supports 3 to 6V for LED operation
IP65 and IK08 protection ratings
Durable stainless steel and chrome-plated brass construction

Description
Product Details

Description

Enhance your control panels with the stylish and durable Metal Self-Locking Switch with Blue LED Ring - 16mm Latching. This chrome-plated metal button features a sleek design, a vibrant blue LED ring, and a latching pushbutton mechanism. It's perfect for a wide range of applications, from industrial control panels to home automation projects. Featured By RoboticsBD.

This button is a latching push button, when you press and release it the 'normally-open' contact shorts to the common contact and stays that way. When you press and release it a second time, the contacts open up again.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Chrome-plated metal construction for durability and aesthetics
Blue LED ring for clear visual indication
Latching pushbutton design for maintaining the switch state
Built-in resistor for LED
Supports 3 to 6V for LED operation
IP65 and IK08 protection ratings for water resistance and impact resistance
Durable stainless steel and chrome-plated brass construction

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Industrial control panels
Automation systems
Robotics
Medical equipment
Home automation projects
DIY electronics projects

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Panel Cutout	Φ16mm
Rating	0.5A/220VAC
Contact Configuration	1NO1NC
Protection Class	IP65,IK08
Pin Terminal	2.8×0.5mm
Switching	C(Single-break slow-motion contact)
Panel Thickness	1～8mm
Torque	About 0.6Nm
Mechanical Life	500,000 cycles
Electrical Life	50,000 cycles
Actuator	Stainless steel/Chrome plated brass/Black plated brass
Body	Stainless steel/Chrome plated brass/Black plated brass
Base	PA
Actuation Force	About 1.7N
Actuation Travel	About 3mm
Shipment Weight	0.015 kg
Shipment Dimensions	7 × 5 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Datasheet

Package Includes:

1 x Metal Self-Locking Switch with Blue LED Ring - 16mm Latching
