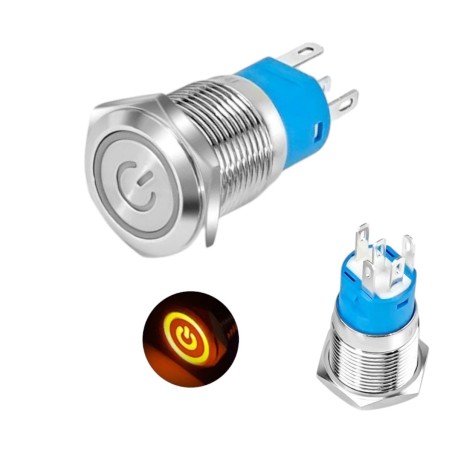

Enhance your control panels with the stylish and durable Metal Pushbutton with Orange LED Ring - 16mm Momentary. This chrome-plated metal button features a sleek design, a vibrant Orange LED ring, and a momentary pushbutton mechanism. It's perfect for a wide range of applications, from industrial control panels to home automation projects. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Drill hole diameter | 16mm |
| Switch rating | 3A / 250VDC |
| Switch contacts | 1 NO, 1 NC |
| Material | Chrome plated brass |
| Contact resistance | 1000 Mohm |
| Temperature | -20 C to +55 C |
| Mechanical life | > 500,000 |
| Electrical life | > 50,000 |
| Panel thickness | 1-13mm |
| Operating pressure | 1.5 - 2.5 N |
| Operating stroke | 2mm |
| Lamp rated voltage | 6V |
| Shipment Weight | 0.015 kg |
| Shipment Dimensions | 5 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

1 x Metal Power Pushbutton with Orange LED Ring - 16mm Momentary
