Metal Pushbutton with Blue LED Ring - 16mm Momentary Robotics Bangladesh

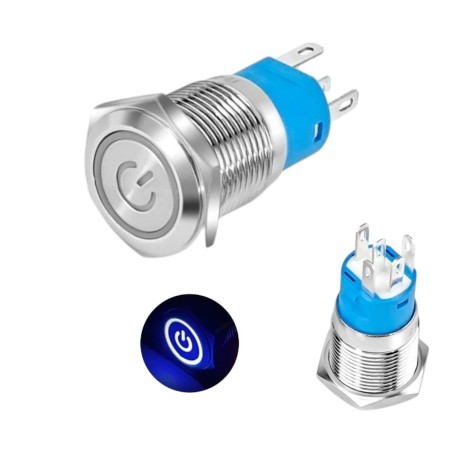

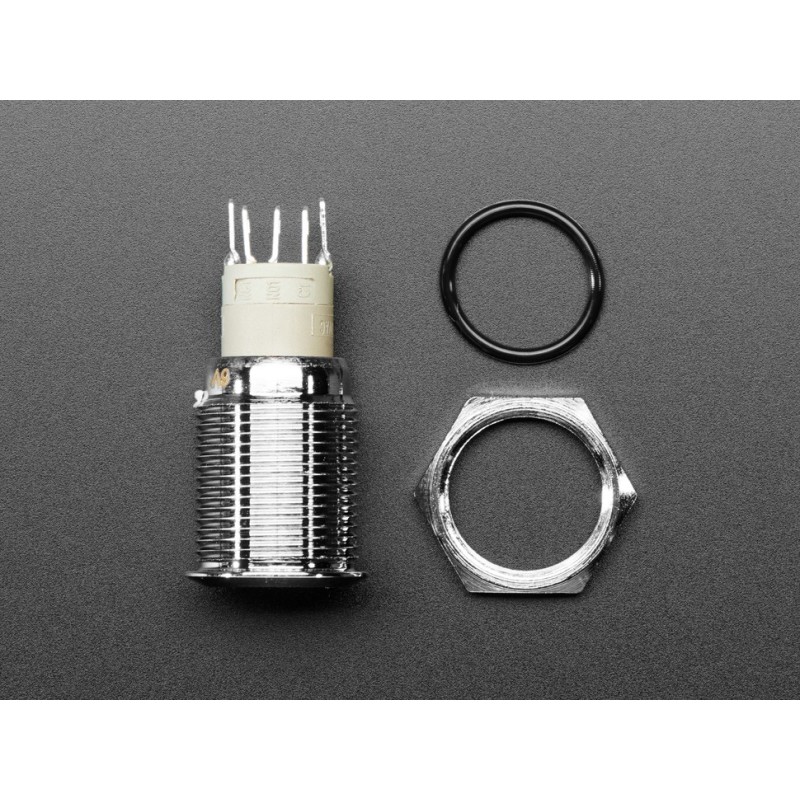

Metal Power Pushbutton with Blue LED Ring - 16mm Momentary

Reference RBD-3370

Rugged chrome-plated metal pushbutton with Blue LED ring
Ideal for panels up to 1/2" thick
Easy installation with a simple drill hole
Built-in resistor for LED
Supports 3 to 6V for LED operation
Momentary pushbutton design

Description
Product Details

Description

Enhance your control panels with the stylish and durable Metal Pushbutton with Blue LED Ring - 16mm Momentary. This chrome-plated metal button features a sleek design, a vibrant Blue LED ring, and a momentary pushbutton mechanism. It's perfect for a wide range of applications, from industrial control panels to home automation projects. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Chrome-plated metal construction for durability and aesthetics
Blue LED ring for clear visual indication
Momentary pushbutton design for easy operation
Built-in resistor for LED
Supports 3 to 6V for LED operation
Versatile wiring options for LED
Easy installation with a simple drill hole

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Industrial control panels
Automation systems
Robotics
Medical equipment
Home automation projects
DIY electronics projects

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Drill hole diameter	16mm
Switch rating	3A / 250VDC
Switch contacts	1 NO, 1 NC
Material	Chrome plated brass
Contact resistance	1000 Mohm
Temperature	-20 C to +55 C
Mechanical life	> 500,000
Electrical life	> 50,000
Panel thickness	1-13mm
Operating pressure	1.5 - 2.5 N
Operating stroke	2mm
Lamp rated voltage	6V
Shipment Weight	0.015 kg
Shipment Dimensions	5 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Package Includes:

1 x Metal Power Pushbutton with Blue LED Ring - 16mm Momentary
