Product Description:

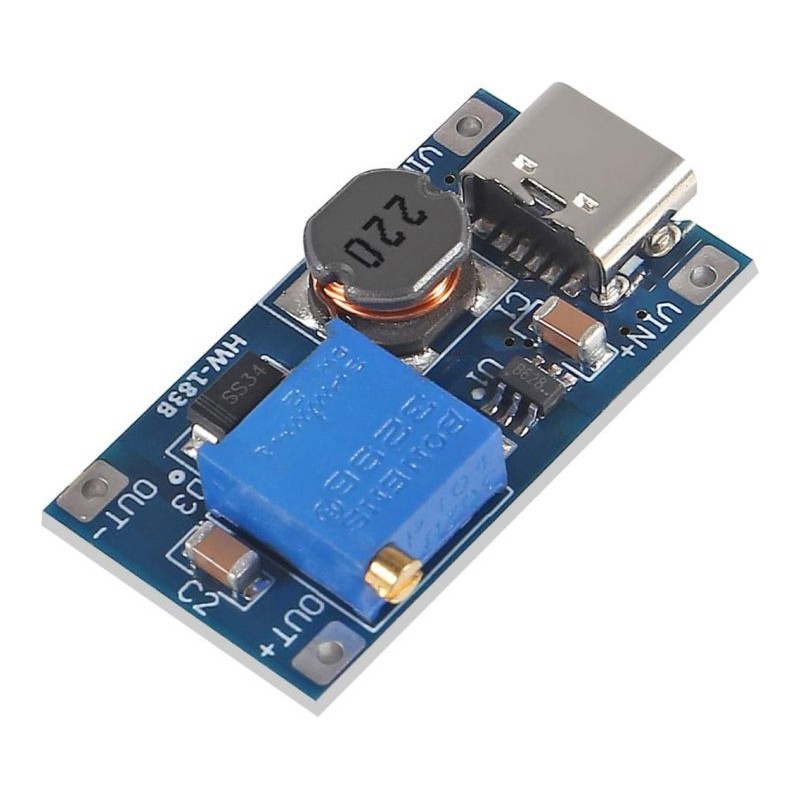

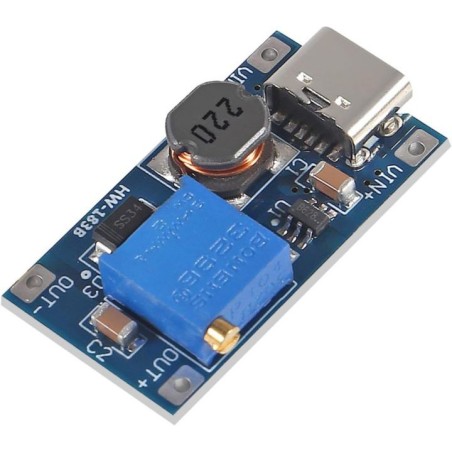

The MT3608 Type-C Step-Up Boost Converter Module is a compact and efficient DC-DC voltage regulator designed to step up (boost) low DC voltages to higher, stable outputs. Featuring a USB Type-C power input, it offers convenient connectivity for modern devices and projects.
Powered by the MT3608 boost IC, this module supports a wide input voltage range of 2V–24V and can output up to 28V, with a maximum current of 2A and efficiency exceeding 93%. It’s ideal for DIY electronics, battery-powered systems, and adjustable power supply projects where precise voltage control is required.
The onboard multi-turn potentiometer allows fine adjustment of the output voltage, while built-in under-voltage lockout, current limiting, and thermal protection ensure safe and reliable operation.
Key Features:
Wide input range: 2V – 24V DC
Adjustable output voltage: 5V – 28V DC (greater than input)
Maximum output current: 2A (peak)
High conversion efficiency: up to 93%
Type-C input port for easy connection and power supply
Integrated protection circuits: overcurrent, overtemperature, and under-voltage lockout
Compact, lightweight, and easy to integrate into any project
Ideal for battery charging, Arduino projects, and DIY power supply modules
Technical Specifications:
| Parameter | Description |
|---|
| Chipset | MT3608 |
| Input Voltage | 2V – 24V DC |
| Output Voltage | 5V – 28V DC (adjustable via potentiometer) |
| Max Output Current | 2A |
| Efficiency | Up to 93% |
| Interface | USB Type-C and solder pads (IN+/IN–, OUT+/OUT–) |
| Module Size | Approx. 36 × 17 × 14 mm |
| Protection | Under-voltage, current limiting, thermal overload |
| Weight | Approx. 6g |
Usage Notes:
Before use, rotate the potentiometer 10+ turns counterclockwise to ensure proper adjustment range if the output equals the input.
The output voltage must be higher than the input voltage.
Do not exceed 2A output current or 24V input voltage for safe operation.
Applications:
DIY Adjustable Power Supply
Battery Charging and Voltage Boosting
Arduino and ESP32 Projects
Portable Electronics and LED Drivers
Solar Power Systems
Industrial Sensor and Instrument Power Supply
Package Includes:
Why Choose This Module?
Compact, efficient, and easy to use, the MT3608 Type-C Boost Converter provides reliable voltage step-up performance with Type-C convenience. Whether you’re powering a sensor, microcontroller, or LED strip, this module is the perfect solution for adjustable DC voltage regulation
