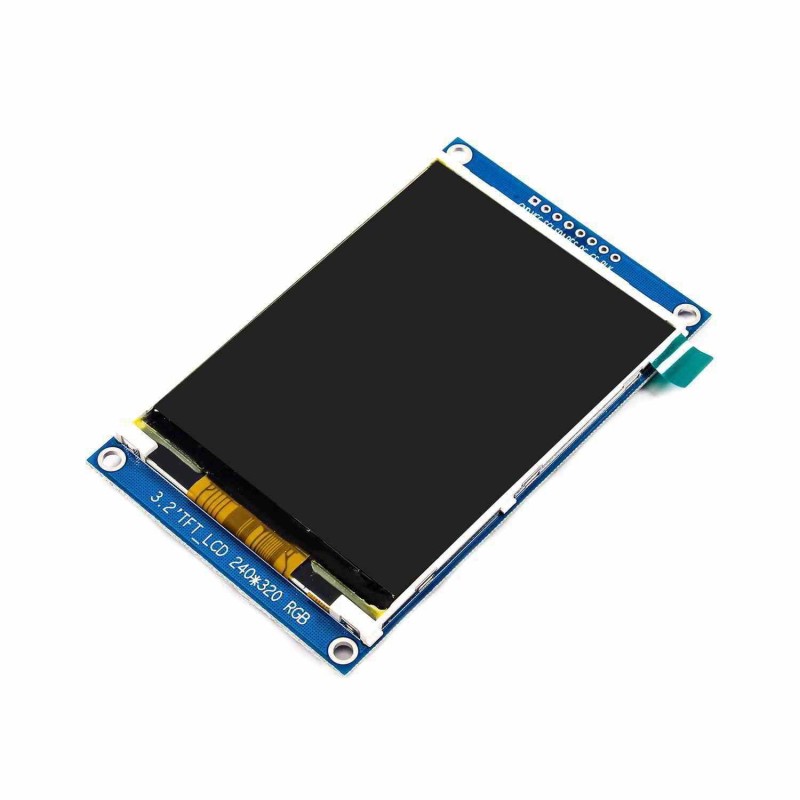

3.2inch TFT LCD Module - SPI, 8 Pin, ILI9341 Driver

Reference RBD-3483

3.2 Inch TFT LCD SPI ILI9341 Module with IPS full-view panel
240×320 resolution with 65K rich color display
4-wire SPI interface saves MCU I/O pins
Compatible with 5V & 3.3V microcontrollers
Built-in Micro TF card slot for storage expansion
Ideal for ESP32, STM32, Arduino, and embedded projects

Description
Product Details

Description

The 3.2 Inch TFT LCD SPI ILI9341 Module is a high-quality IPS color display designed for embedded systems and smart device interfaces. With a resolution of 240×320 pixels and rich 65K color depth, it delivers sharp images, vibrant colors, and wide viewing angles. Powered by the reliable ILI9341V driver IC, this module uses a 4-wire SPI interface, significantly reducing I/O pin usage on microcontrollers. It supports both 5V and 3.3V logic levels, making it compatible with popular development boards such as ESP32, STM32, Arduino UNO, Mega2560, C51, and CH32. Additionally, it features a Micro TF card slot for convenient data storage and offers an optional capacitive touch version using the FT6336U controller. This display module is ideal for IoT dashboards, handheld devices, industrial control panels, and DIY electronics. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

IPS Full View Display – Offers wide viewing angles with consistent brightness and color clarity.
240×320 High Resolution – Ensures sharp and detailed graphical output.
ILI9341V Driver IC – Provides stable and reliable display control.
4-Wire SPI Interface – Saves valuable microcontroller pins while maintaining fast communication.
5V & 3.3V Compatibility – Works directly with most development boards.
Micro TF Card Slot – Enables image and data storage expansion.
Optional Capacitive Touch Version – Available with FT6336U driver for touch-based applications.
Extensive Development Support – Sample codes available for ESP32, STM32, and Arduino platforms.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

DIY Handheld Devices – Create custom portable electronics with graphical UI.
Smart Home Interfaces – Display sensor data and system controls visually.
Industrial Control Panels – Monitor machine data and system parameters.
IoT Display Systems – Provide real-time visual feedback in connected projects.
Educational Projects – Learn graphics programming and display interfacing.
Data Logging Devices – Show measurement results with graphical representation.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Product Name	3.2inch TFT LCD Module – SPI, ILI9341
Screen Size	3.2 Inch IPS
Resolution	240 × 320 Pixels
Color Depth	65K Colors
Active Area	48.60mm × 64.80mm
Pixel Size	0.2025mm × 0.2025mm
Brightness	280 cd/m² (Typical)
Viewing Angle	Full View (IPS)
Driver IC	ILI9341V
Interface	4-Wire SPI
Working Voltage	5V (3.3V Logic Compatible)
Backlight	White LED × 6
Backlight Current	95mA
Power Consumption	0.5W
Operating Temperature	-30°C to 80°C
Storage Temperature	-30°C to 80°C
Module Size (No Touch)	55.04mm × 90.5mm × 12.88mm
Interface Connector	14P 2.54mm Header + 0.5mm FPC
Shipment Weight	0.035 kg
Shipment Dimensions	9 × 6 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 3.2inch TFT LCD Module - SPI, 8 Pin, ILI9341 Driver
