Product Description:

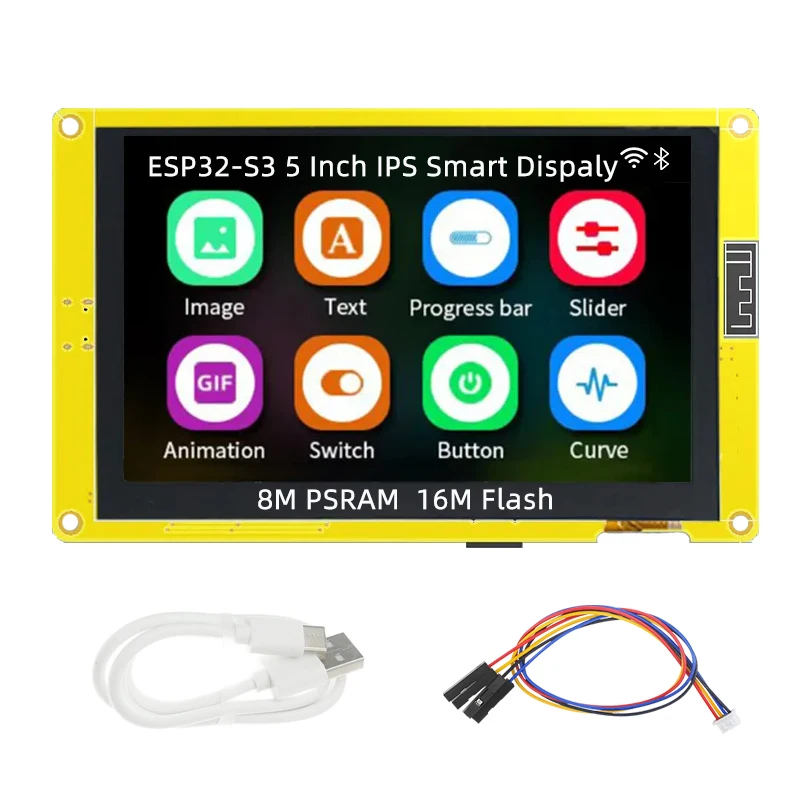

The ESP32-S3 5-Inch IPS Smart Display is a high-performance Wi-Fi and Bluetooth-enabled HMI development module designed for modern IoT interfaces, control panels, and smart visualization projects. Featuring a 5.0-inch 800×480 IPS TFT capacitive touchscreen, it combines excellent display clarity with the processing power of the ESP32-S3 dual-core microcontroller.
With 8MB PSRAM and 16MB Flash, this display delivers smooth LVGL graphics performance, multi-tasking capability, and stable data handling. It supports Arduino IDE, LVGL UI framework, and FreeRTOS, making it ideal for professional and educational IoT applications.
The board integrates a USB Type-C interface, TF card slot, camera support, and automatic firmware download functionality, offering developers a complete and ready-to-use platform for embedded display development.
Key Features:
ESP32-S3 dual-core 32-bit CPU, up to 240 MHz
Built-in Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 BR/EDR + BLE

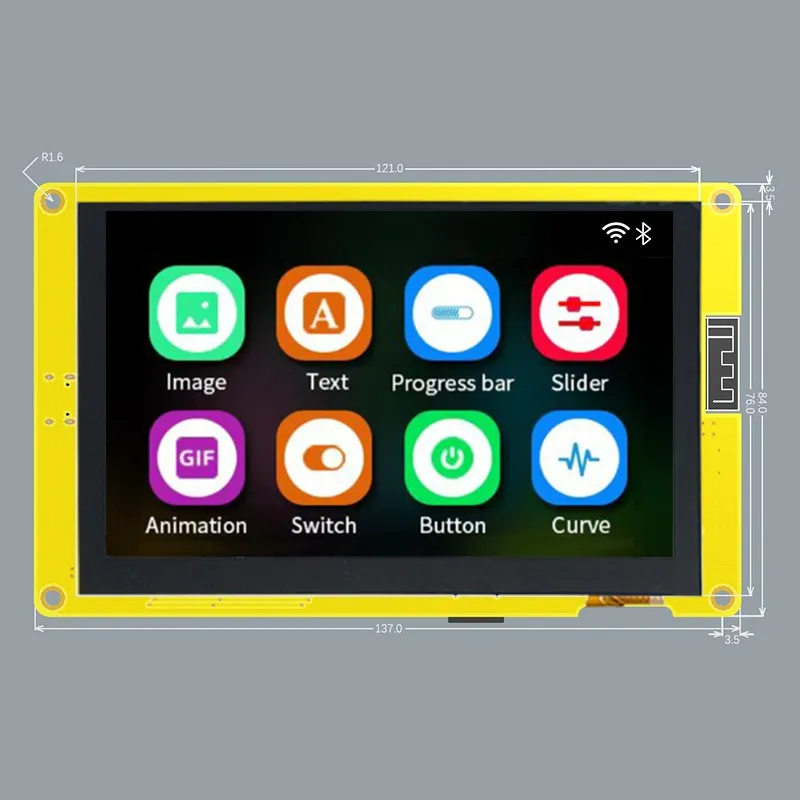

5.0-inch IPS TFT display, 800×480 resolution, vivid color and wide viewing angle
Capacitive touch screen for responsive user interaction
8 MB PSRAM + 16 MB Flash for fast graphics and data processing

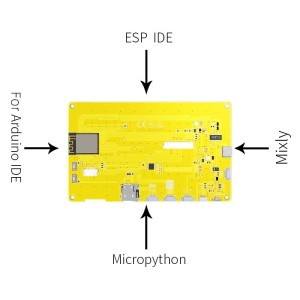

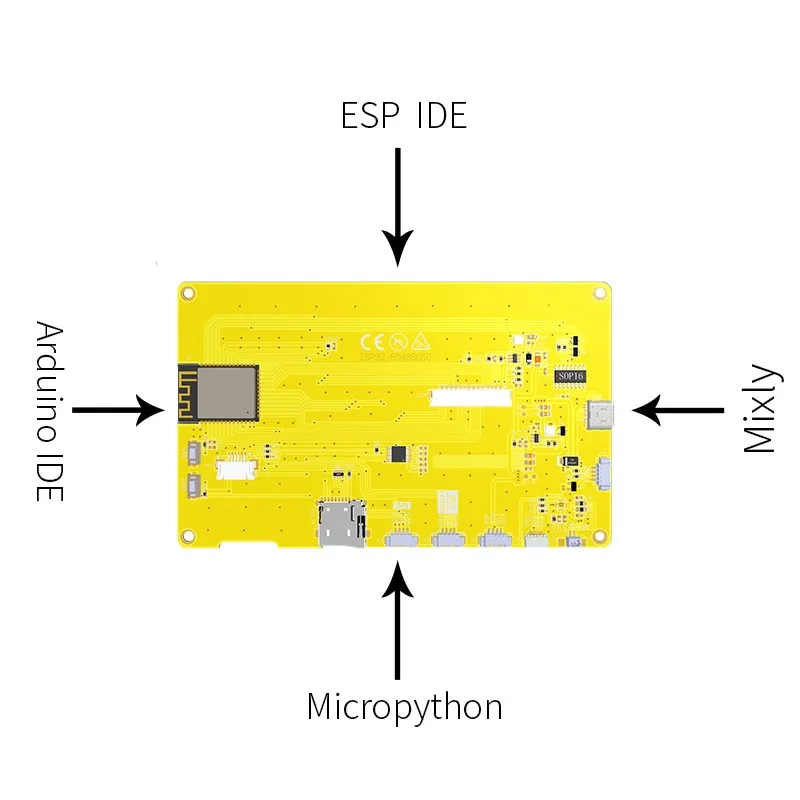

Supports Arduino, LVGL, FreeRTOS, and secondary development

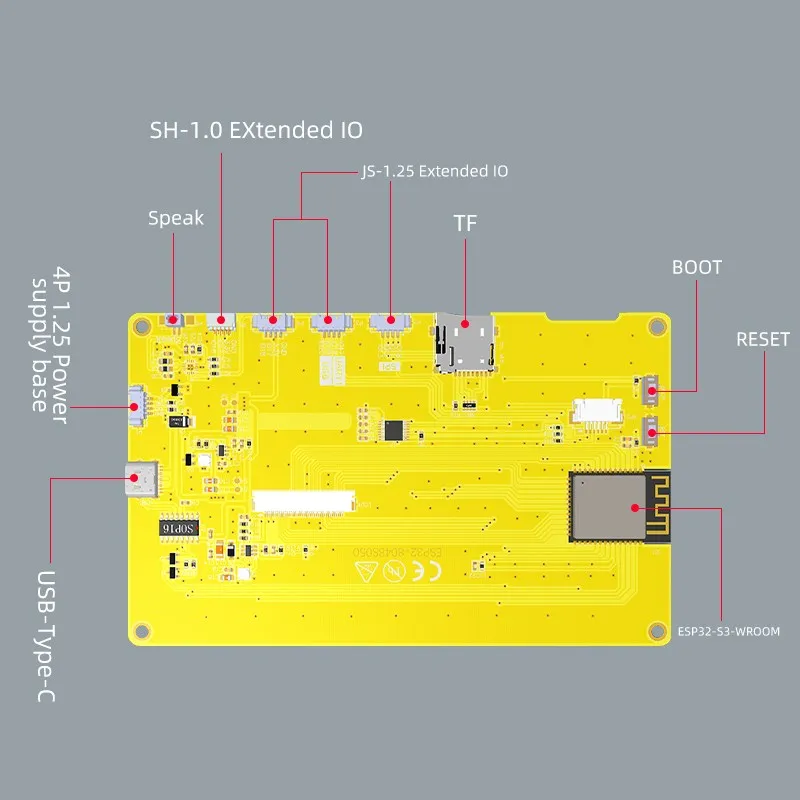

USB Type-C interface with one-key automatic download support
TF card slot (supports up to 4 GB)
Supports OV2640 / OV7670 camera modules for visual projects
Supports SmartConfig / AirKiss one-click Wi-Fi setup
Built-in PCB antenna with 2dBi gain
Supports multiple sleep modes for low power operation
Technical Specifications:
| Parameter | Description |
|---|
| CPU | ESP32-S3 Dual-Core 32-bit MCU, up to 240 MHz |
| Memory | 520 KB SRAM + 8 MB PSRAM |
| Flash | 16 MB SPI Flash |
| Display | 5.0″ IPS TFT LCD, 800×480 pixels, RGB interface |
| Touch | Capacitive Touch |
| Wi-Fi | 802.11 b/g/n/e/i |
| Bluetooth | 4.2 BR/EDR + BLE |
| Operating Voltage | 4.75–5.25V DC |
| Interfaces | UART, SPI, I2C, PWM, ADC, DAC, TF Card |
| TF Card | Supports up to 4 GB |
| Antenna | Onboard PCB Antenna (2dBi gain) |
| Power Consumption | 180–310mA @ 5V (active) / 6mA (deep sleep) |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -40°C ~ +125°C, <90%RH |
Applications:
Smart Home and IoT Dashboards
Industrial Control and HMI Panels
Wireless Camera and Image Display Systems
Smart Agriculture and Environment Monitoring
Robotics and Embedded Visualization Projects
Educational and Research IoT Development
Package Includes:
1 × ESP32-S3 5-Inch IPS TFT Smart Display Module
1 × Capacitive Touch Screen
1 × USB Type-C Cable (optional depending on package)
Download Resources:
Official LVGL demo, firmware, drivers, and schematics available at:
ESP32-8048S050 Official Download Link
Why Choose This Display?
This 5-inch ESP32-S3 Smart Display combines high processing performance, superior visual clarity, and developer flexibility. It’s a complete platform for building interactive IoT interfaces, smart dashboards, and touch-controlled embedded systems — all programmable via Arduino or LVGL with Wi-Fi and Bluetooth connectivity.

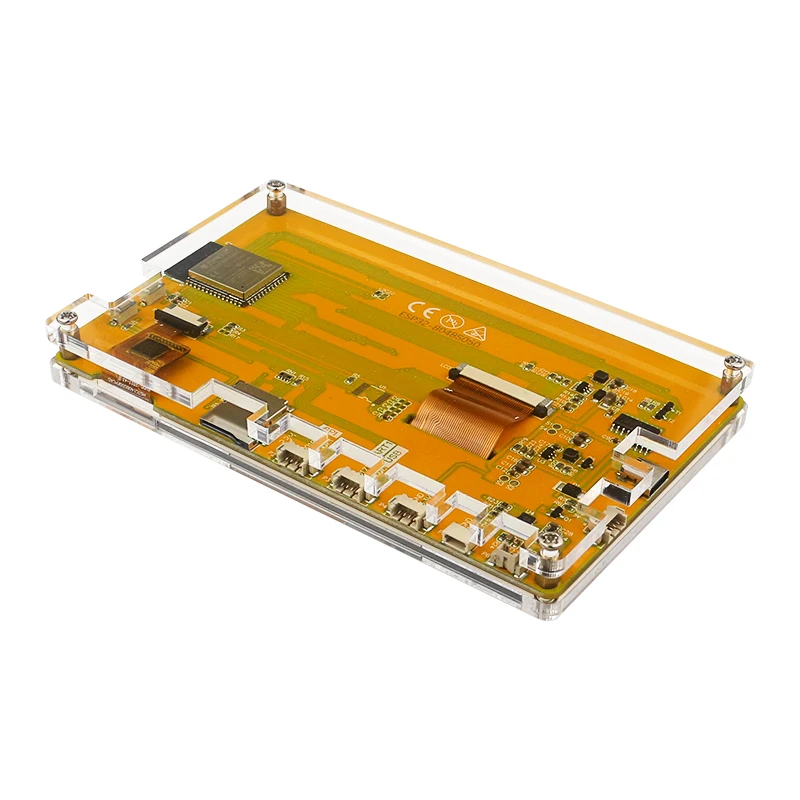

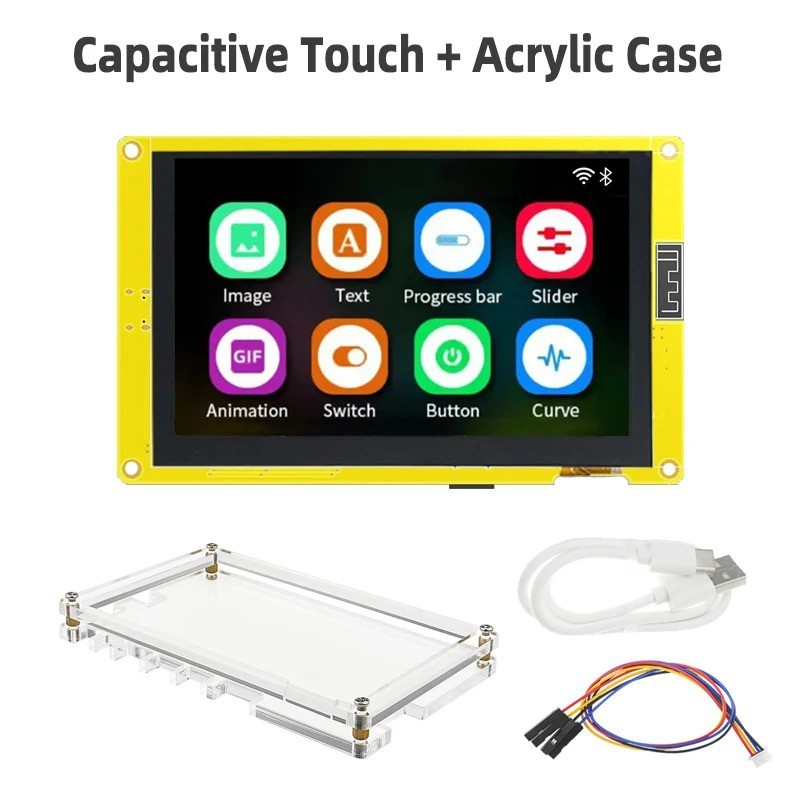

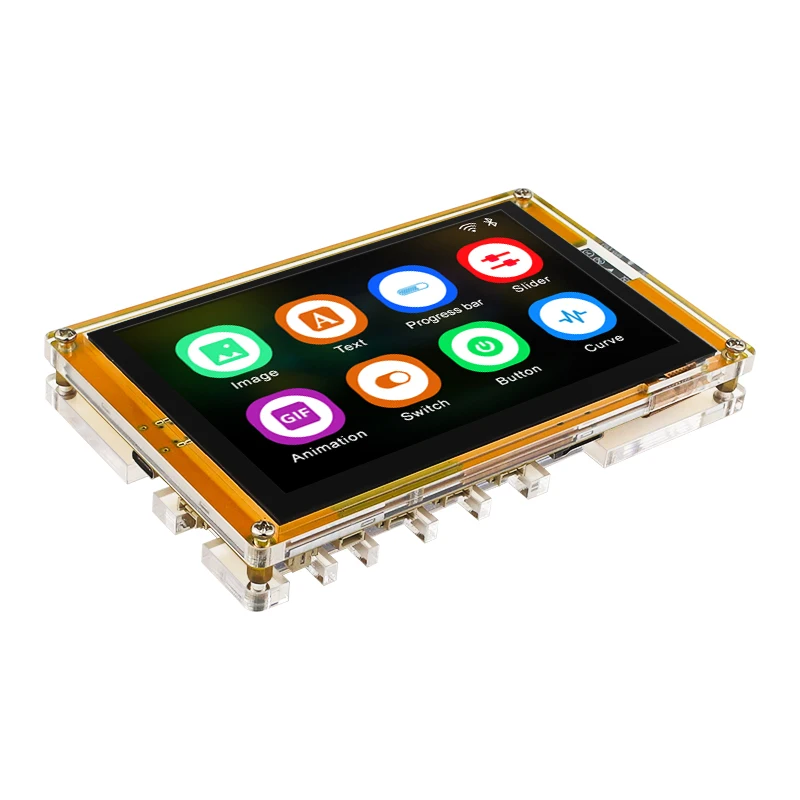

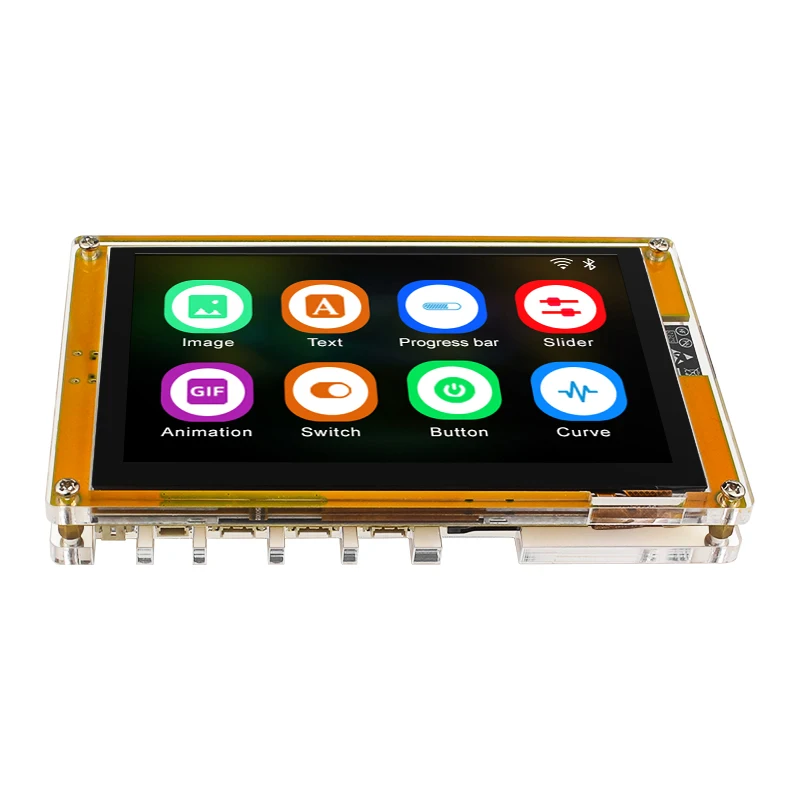

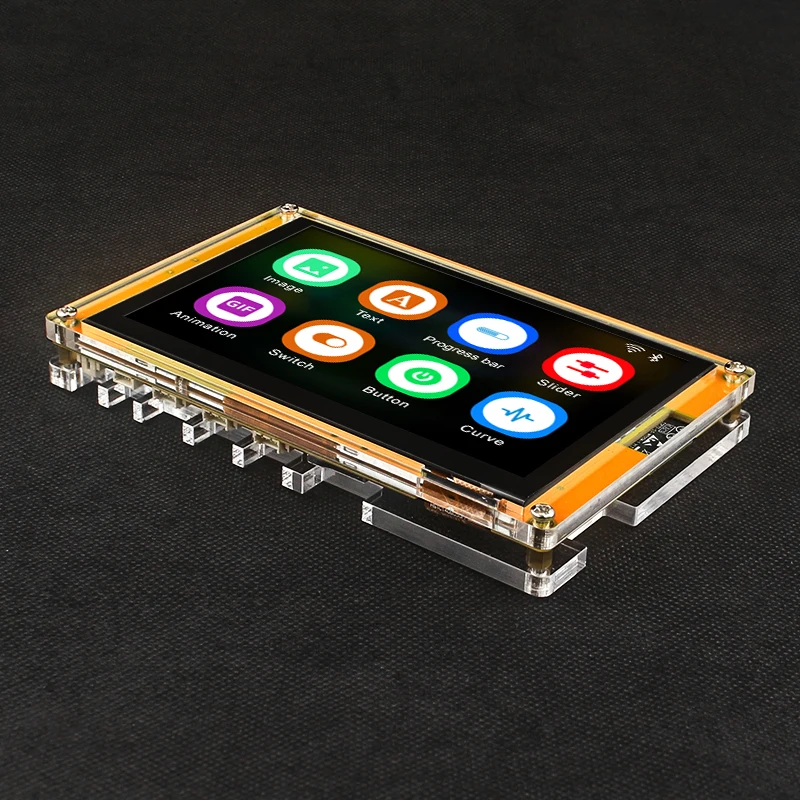

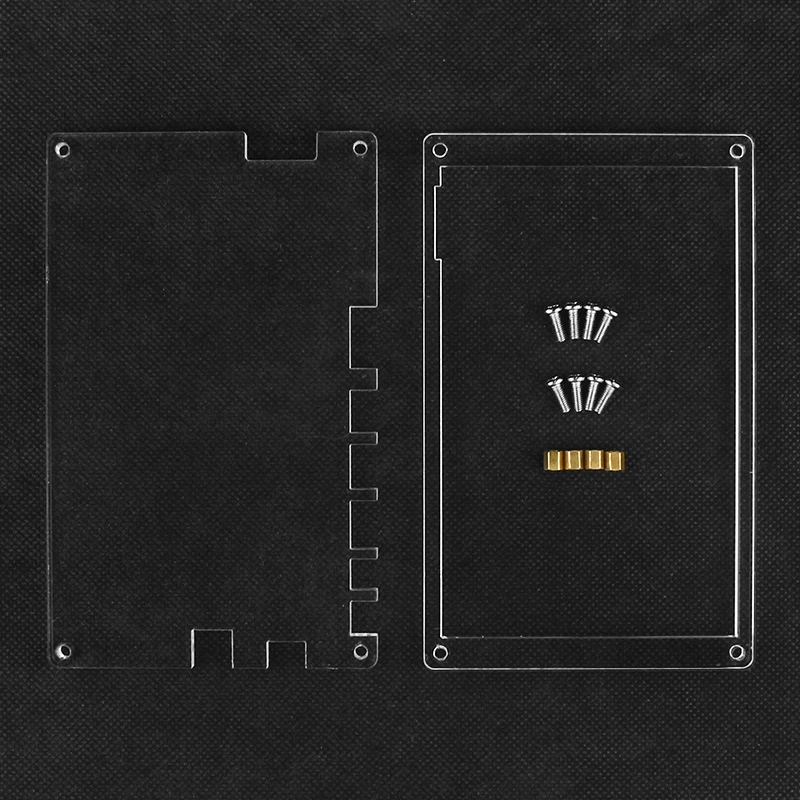

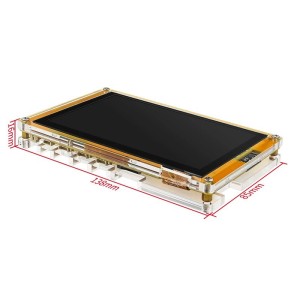

Acrylic Case
