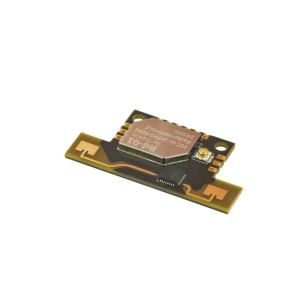

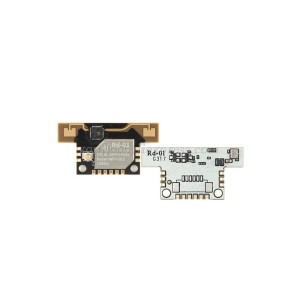

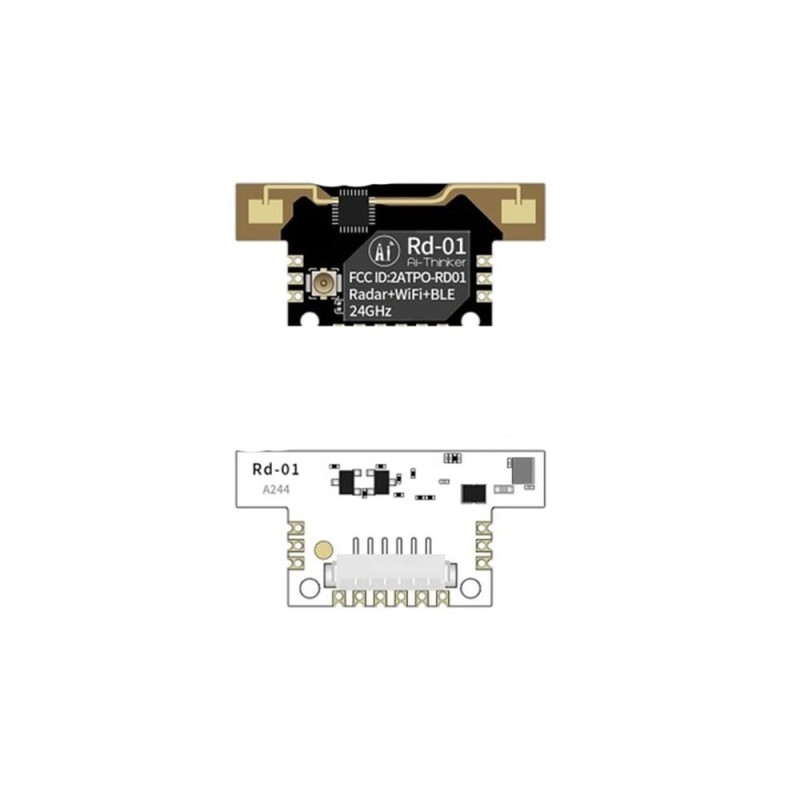

The Ai-Thinker RD-01 Human Presence Sensor with WiFi & Bluetooth is a highly advanced radar-based detection module designed for smart automation, security, and IoT applications. Utilizing FMCW (Frequency Modulated Continuous Wave) radar technology operating at 24GHz, it accurately detects both human motion and micro-motion—even when subjects are stationary. This gives it a major advantage over conventional PIR sensors that rely only on movement. The RD-01 integrates Wi-Fi 802.11 b/g/n and Bluetooth 5.0 (BLE) for seamless wireless connectivity, enabling real-time data transmission and configuration through IoT platforms. With its multiple interfaces including UART, GPIO, ADC, PWM, I2C, and SPI, it offers flexible integration into various embedded systems. The module’s energy-efficient design makes it perfect for battery-powered applications, while its compact form factor ensures easy installation in tight spaces. Whether for smart homes, security monitoring, or industrial automation, the Ai-Thinker RD-01 delivers next-generation human presence detection with high sensitivity, reliability, and wireless flexibility. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Advanced FMCW Radar Technology: Detects motion, presence, and micro-movements with high precision.
Dual Wireless Connectivity: Built-in Wi-Fi and Bluetooth 5.0 for real-time data communication and remote configuration.
Multiple Interfaces: Supports UART, GPIO, ADC, PWM, I2C, and SPI for integration with microcontrollers and IoT systems.
Wide Detection Range: Operates in the 24GHz radar band with 1GHz modulation bandwidth for enhanced accuracy.
Smart Configuration: Allows wireless adjustment of sensing distance, delay time, and sensitivity.
Energy-Efficient Operation: Optimized for ultra-low power consumption, suitable for continuous monitoring.
Compact & Lightweight Design: Small SMD-12 module form factor simplifies integration in space-limited devices.
Enhanced Security Protocols: Compatible with WPA3, WPA2, WPS, and other advanced wireless standards.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Smart Home Automation: Detect human presence for lighting, HVAC, and occupancy-based systems.
Security & Surveillance: Integrate into motion detection systems for intruder alerts and monitoring.
Office & Commercial Buildings: Enable intelligent lighting or energy-saving automation based on occupancy.
IoT & Embedded Devices: Real-time human detection data for connected devices and remote control systems.
Industrial Automation: Used for machine control, safety monitoring, and activity sensing in smart factories.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Radar Frequency | 24GHz ~ 24.25GHz |
| Modulation Type | FMCW Radar |
| Wireless Connectivity | Wi-Fi 802.11 b/g/n & Bluetooth 5.0 |
| Antenna Type | Onboard radar antenna |
| Power Supply | 3.0V – 3.6V (≥500mA) |
| Operating Temperature | -40°C to +85°C |
| Interfaces | UART, GPIO, ADC, PWM, I2C, SPI |
| Serial Port Speed | Default 256000 bps |
| Security Protocols | WPS, WEP, WPA, WPA2 Personal/Enterprise, WPA3 |
| Flash Storage | 2MB |
| Dimensions | 35mm × 18mm × 3.6mm |
| Package Type | SMD-12 |
| Shipment Weight | 0.010 kg |
| Shipment Dimensions | 4 × 3 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x Ai-Thinker Rd-01 Human Presence Sensor With Wifi & Bluetooth
