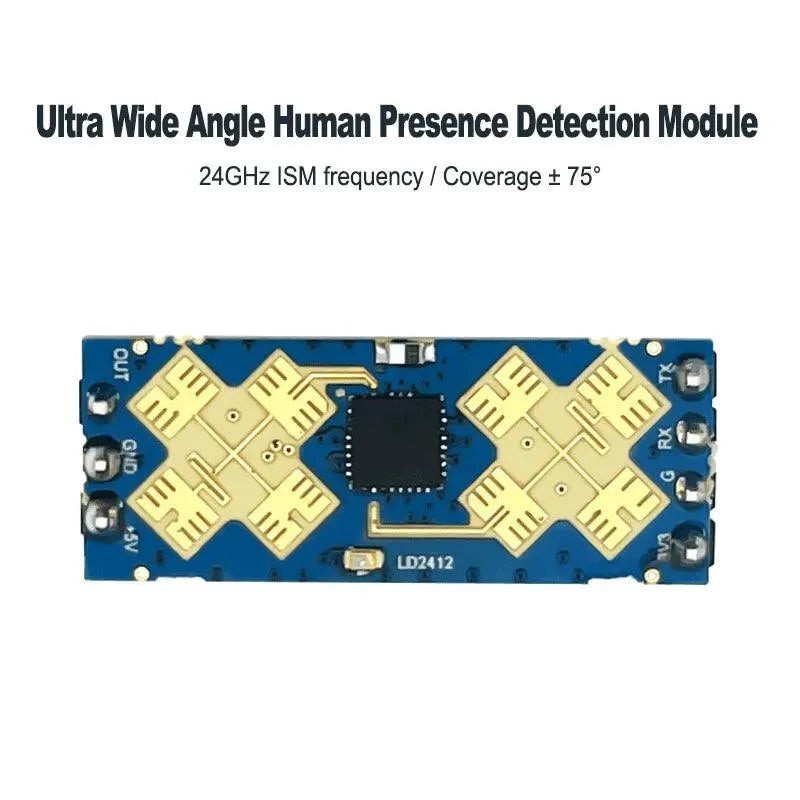

The HLK-LD2412 Wide Angle Sensing mmWave Human Presence Sensing Module is a high-performance 24GHz radar sensor developed by HI-LINK Electronics for real-time human presence detection. Utilizing FMCW (Frequency Modulated Continuous Wave) radar technology, it detects both moving and stationary human targets with high precision and stability. With a detection range adjustable from 0.75m to 9m, a 0.75m resolution, and a ±75° sensing angle, the HLK-LD2412 offers excellent coverage for indoor environments. Its user-configurable parameters—including detection range, sensitivity, and delay time—allow developers to tailor performance to specific applications. Operating on either 3.3V or 5V power, this compact module provides reliable performance at only ~90mA current draw. Ideal for smart home systems, security automation, and occupancy-based lighting, it ensures accurate, contactless human presence detection in a cost-effective form factor. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
FMCW Radar Technology: Detects both motion and micro-motion with high accuracy.
Wide Detection Coverage: ±75° field of view enables large-area sensing.
Configurable Range and Sensitivity: Adjustable from 0.75m to 9m via configuration tools.
High Precision: 0.75m distance resolution for accurate detection results.
Dual Voltage Support: Operates on 3.3V or 5V with ~90mA typical current.
Multiple Output Interfaces: Serial UART communication for flexible integration.
Compact and Lightweight: 11×28mm module size, easy to install in embedded systems.
Compliant Design: Operates in 24GHz ISM band, compliant with FCC and CE standards.
Plug-and-Play Ready: Default pin header for quick prototyping.
Versatile Applications: Ideal for smart home, energy-saving lighting, and security systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Smart Home Automation: Detect human presence for lighting and HVAC control.
Security Monitoring: Enable motion detection and intrusion alerts.
Energy-Efficient Systems: Trigger power-saving modes in absence of users.
Smart Office and Retail: Manage occupancy-based control systems.
Public Facilities: Integrate into smart lighting and building automation systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | HLK-LD2412 |
| Manufacturer | HI-LINK Electronics |
| Frequency | 24GHz – 24.25GHz |
| Modulation Type | FMCW (Frequency Modulated Continuous Wave) |
| Detection Distance | 0.75m – 9m (Adjustable) |
| Distance Resolution | 0.75m |
| Detection Angle | ±75° |
| Power Supply | 3.3V or 5V (≥200mA) |
| Current Consumption | ~90mA (Typical) |

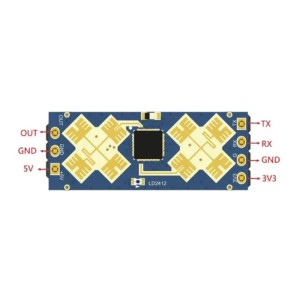

| Output Interface | UART (TX, RX), OUT Signal Pin |
| Output Logic | High = Presence, Low = No Presence (Configurable) |
| Frequency Bandwidth | 250MHz |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 11mm × 28mm |
| Compliance | CE, FCC (24GHz ISM Band) |
| Applications | Smart home, security, lighting automation |
| Shipment Weight | 0.0016 kg |
| Shipment Dimensions | 3 × 2 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
