Reference: RBD-2652
Banner

The ESP32 3.5 inch TFT Touch Display Module offers a larger screen area with high clarity, making it ideal for advanced graphical interfaces, dashboards, smart panels and IoT projects. Equipped with the powerful ESP32 controller, this module delivers strong wireless performance and a highly responsive capacitive touch system.
Product Description
The ESP32 3.5 inch TFT Touch Display Module offers a larger screen area with high clarity, making it ideal for advanced graphical interfaces, dashboards, smart panels and IoT projects. Equipped with the powerful ESP32 controller, this module delivers strong wireless performance and a highly responsive capacitive touch system.
Case not included.
• Large 3.5 inch IPS TFT screen
• Capacitive touch panel with fast response time
• ESP32 dual core processor with WiFi and Bluetooth
• USB Type C plug and play programming
• microSD storage support
• Ready to use single board HMI solution
• Supports Arduino IDE, MicroPython and ESP IDF
• Suitable for professional and DIY embedded projects
Display Size 3.5 inch
Display Type IPS TFT
Resolution 480 x 320
Touch Panel Capacitive
Main Controller ESP32 dual core
Connectivity WiFi 802.11 b g n and Bluetooth
Storage microSD card slot
Interface USB Type C
Operating Voltage 5V
Software Support Arduino IDE, ESP IDF, MicroPython
• Connect via USB Type C
• Install ESP32 board library in your development environment
• Upload your GUI or IoT firmware
• Navigate and control your interface using touch
• Store assets or logs on microSD if needed
• Industrial style control panels
• Robotics controllers
• Smart home wall displays
• IoT monitoring dashboards
• Educational and prototyping systems
• Embedded graphical products

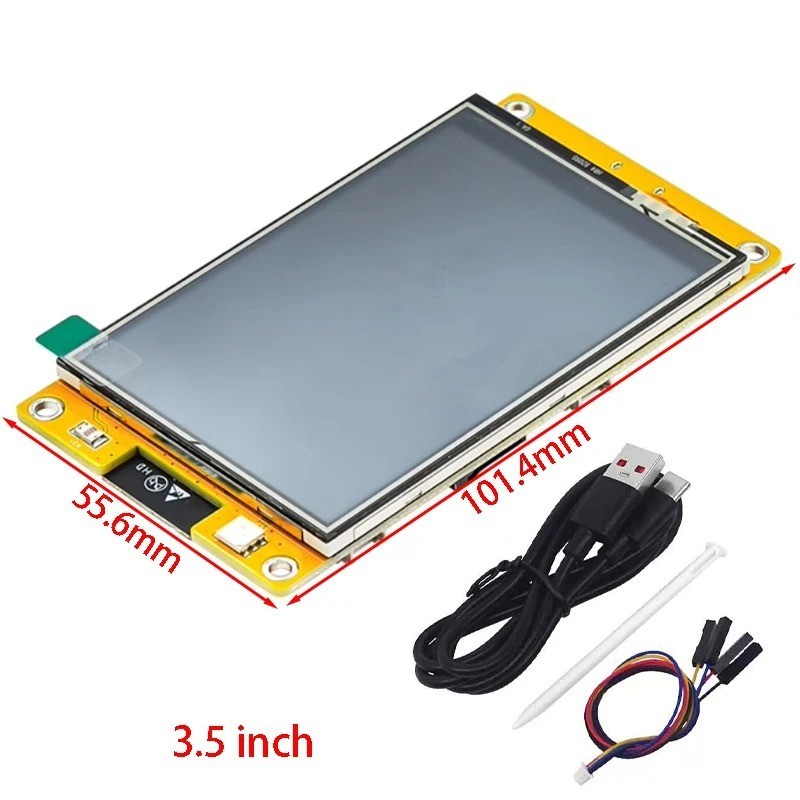

1 x ESP32 Development Board with 3.5 inch TFT Touch Display
Case not included
• Larger display for detailed UI layouts
• Excellent wireless capabilities
• High quality capacitive touch
• Perfect for complex embedded or IoT projects
Upgrade your projects with the larger and more powerful 3.5 inch ESP32 touch display. Order now and enhance your interface experience.
