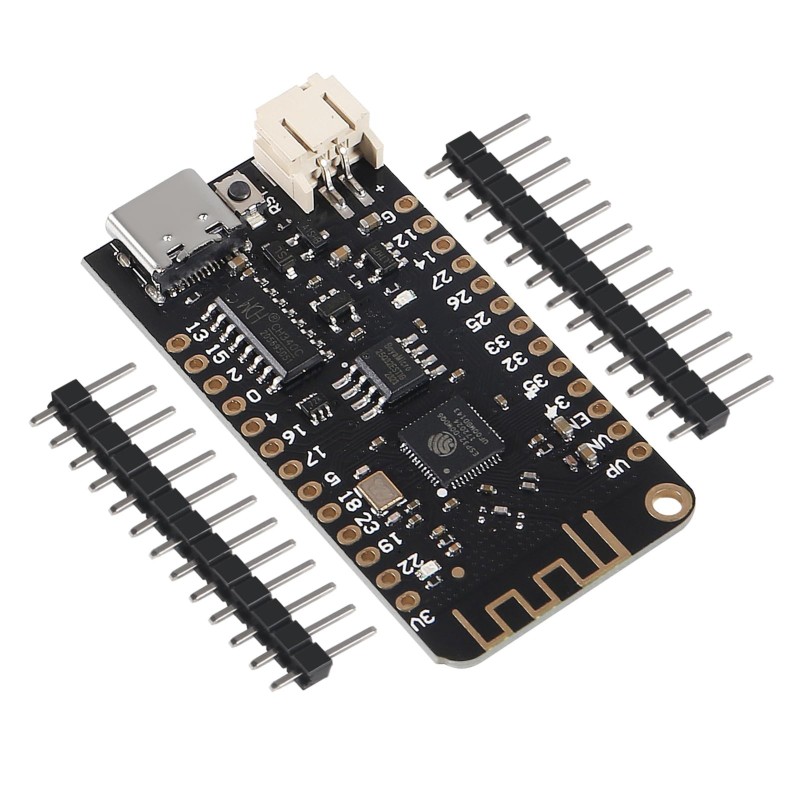

The ESP32 Lite V1.0.0 Development Board is a compact and cost-effective WiFi + Bluetooth solution based on the ESP32 Rev1 chip. With 4MB Flash memory, integrated RF antenna, and dual-mode Bluetooth, this board delivers strong wireless performance for IoT, smart home, and embedded projects.
Product Description:
The ESP32 Lite V1.0.0 Development Board is a compact and cost-effective WiFi + Bluetooth solution based on the ESP32 Rev1 chip. With 4MB Flash memory, integrated RF antenna, and dual-mode Bluetooth, this board delivers strong wireless performance for IoT, smart home, and embedded projects.
Designed with convenience in mind, it features a USB Type-C interface for programming and power, as well as a dedicated lithium battery connector with up to 500mA charging current, making it suitable for both portable and stationary applications. With integrated RF balun, power amplifier, low-noise amplifiers, and filters, the ESP32 Lite offers excellent stability and range in wireless communication.
Key Features:
ESP32 Rev1 Chip with integrated WiFi (802.11 b/g/n) and dual-mode Bluetooth
4MB Flash Memory for code and storage
USB Type-C Interface for programming and power supply
Lithium Battery Connector with max 500mA charging current
Onboard Antenna + RF Components for strong wireless performance
Operating Voltage: 3.3V
Logic Level: 3.3V
Compact Design: 50mm × 25mm, with 2 × 3mm mounting holes
High-Speed Serial Communication: Supports baud rates up to 256000bps
Technical Specifications:
Chipset: ESP32 Rev1
Flash Memory: 4MB
PSRAM: 8MB (external, integrated version dependent)
WiFi: 802.11 b/g/n
Bluetooth: Dual-mode (Classic + BLE)
Power Supply: 2.2V – 3.6V
USB Interface: Type-C, with CH340G USB-to-UART driver
Charging Current: Up to 500mA via lithium battery interface
Serial Baud Rate: Up to 256000bps
Dimensions: 50 × 25 mm (1.97 × 0.98 in)
Applications:
IoT (Internet of Things) projects
Smart home automation
Wearables and portable devices
Robotics and wireless sensor networks
MicroPython and Arduino-based prototyping
Package Includes:
1 × ESP32 Lite V1.0.0 Development Board (Type-C, ESP32 Rev1)
Why Choose ESP32 Lite V1.0.0?
With its modern Type-C interface, lithium battery charging support, and powerful ESP32 dual-core chip, this board is the perfect balance of performance and portability. Whether for IoT, robotics, or wireless experiments, the ESP32 Lite V1.0.0 makes prototyping easy and efficient.
Start building smarter projects today with the ESP32 Lite V1.0.0 Development Board—compact, versatile, and ready for WiFi + Bluetooth innovation.
