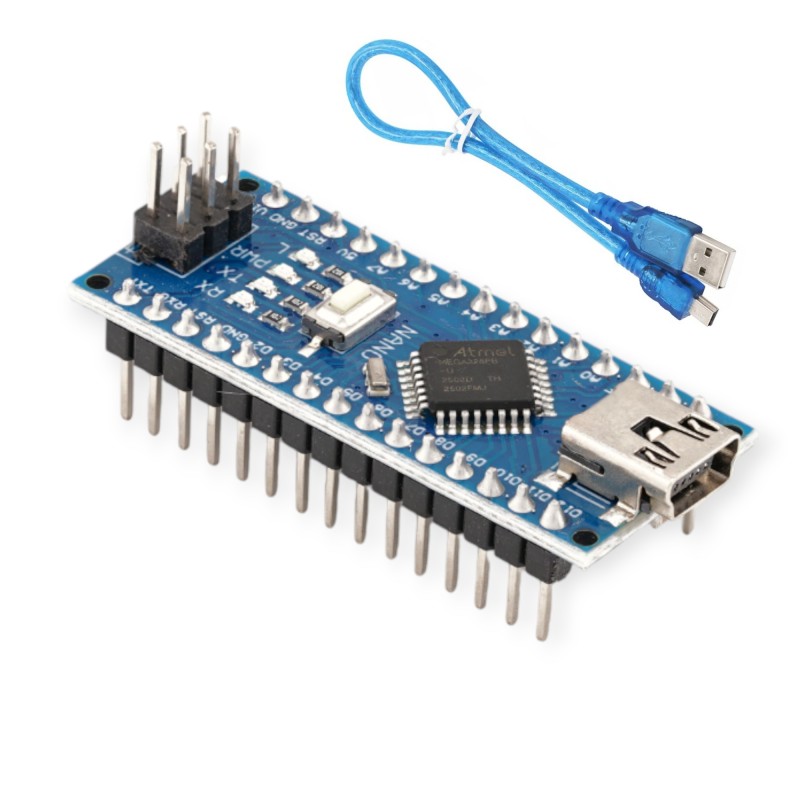

Arduino Nano CH340

Reference RBD-4005

USB Driver: Original CH340 Driver
Operating Voltage (logic level): 5V
With Mini USB
8 analog inputs ports: A0 ~ A7
14 Digital input / output ports: TX, RX, D2 ~ D13
1 pair of TTL level serial transceiver ports RX / TX
Using Atmel Atmega328P-AU MCU
There is a bootloader installed in it
Standard 0.1” spacing DIP (breadboard friendly).
Manual reset switch.
Please select "Old Bootloader" during upload.

Description
Product Details

Description

Arduino Nano is a small, compact version of the Arduino microcontroller board. It is designed for projects that require a small footprint and low power consumption. It is based on the ATmega328P microcontroller and has a similar set of features as the Arduino Uno, including digital inputs/outputs, analog inputs, and PWM outputs. It can be programmed using the Arduino software development environment and is commonly used in projects such as robotics, automation, and home automation. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Please select "Old Bootloader" during upload. Install the driver attached below. Use Windows 10 and Arduino Software Version 1.8

Driver: https://store.roboticsbd.com/index.php?controller=attachment&id_attachment=9

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

1 pair of TTL level serial transceiver ports RX / TX
Using Atmel Atmega328P-AU MCU
There is a bootloader(old) installed in it (If needed)
Support USB download and Power
Support for external 5V ~ 12V DC power supply
Support power supply by 9V battery
Support ISP download
Automatic reset during program download.
Power OK blue LED on the bottom.
Green (TX), red (RX) and orange (L) LED.
+5V to AREF jumper.
Auto sensing/switching power input.
Small mini-B USB for programming and serial monitor.
ICSP header for direct program download.
Standard 0.1” spacing DIP (breadboard friendly).
Manual reset switch.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Model Type	Nano
Color	Blue
Microcontroller	ATmega328
Operating Voltage (VDC)	5
Country of Origin/Manufacture	China
Power Consumption (Watt)	1
Analog I/O Pins	8
Digital I/O Pins	22
PWM Output Pins	6
Architecture	AVR
Clock Speed	16 MHz
DC Current per I/O Pin (mA)	40
Flash Memory	32 KB
EEPROM	1KB
SRAM	2
Dimensions (mm) LxWxH	45x18x5
Weight (gm)	8
Shipment Weight	0.105 kg
Shipment Dimensions	6 × 5 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

Note: Product images/ Components brand may vary from actual product as our stock rotates.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

1 x Arduino Nano CH340
