Warning: Unlike most Arduino boards, the Zero runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board.

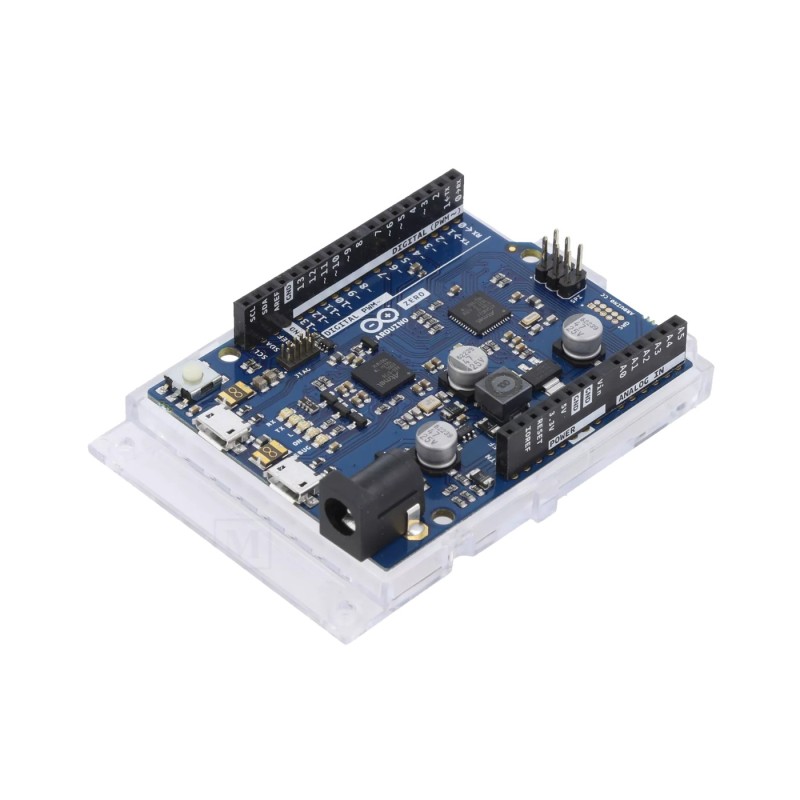

The Arduino Zero Original is a powerful yet simple 32-bit microcontroller board, expanding the capabilities of the Arduino family beyond the UNO. Powered by the Atmel SAMD21 MCU with an ARM Cortex-M0+ core, the Zero is perfect for developing next-generation projects in IoT, robotics, wearables, and high-tech automation. One of its standout features is the Atmel Embedded Debugger (EDBG), which provides a complete debug interface and virtual COM port without additional hardware—making programming and debugging seamless. With 20 digital I/O pins, 12-bit ADC, 10-bit DAC, PWM support, and multiple serial interfaces, the Zero offers great flexibility for developers. Running at 3.3V logic, it is compatible with shields that support this voltage level. Compact, lightweight, and versatile, the Arduino Zero is an excellent educational tool as well as a robust development platform for advanced embedded applicatio Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
32-bit ARM Cortex-M0+ MCU – Atmel SAMD21 for higher performance.
EDBG Debugger – Built-in debugging and virtual COM port, no extra hardware needed.
3.3V Operation – Designed for modern low-power systems.
Rich I/O Options – 20 digital I/O, 6 analog inputs, and 1 analog output.
High-Precision ADC/DAC – 12-bit ADC and 10-bit DAC for advanced signal processing.
Multiple Interfaces – UART, I2C, and SPI communication supported.
Flexible Power Supply – USB, battery, or AC-to-DC adapter.
Compact & Lightweight – Easy integration into projects and prototypes.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
IoT Development – Build connected devices with efficient 32-bit processing.
Robotics Projects – Suitable for motor control, sensor interfacing, and automation.
Wearable Technology – Low-power and compact for portable applications.
Educational Use – Excellent tool for learning 32-bit microcontroller programming.
High-Tech Automation – Reliable control for industrial and consumer projects.
Creative Prototyping – Ideal for makers and hobbyists building innovative systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Microcontroller | Atmel ATSAMD21G18, ARM Cortex-M0+ 32-bit |
| Operating Voltage | 3.3V |
| Digital I/O Pins | 20 |
| PWM Pins | 3, 4, 5, 6, 8–13 |
| UART | 2 (Native and Programming) |
| Analog Input Pins | 6 (12-bit ADC) |
| Analog Output Pins | 1 (10-bit DAC) |
| External Interrupts | All pins except pin 4 |
| DC Current per I/O Pin | 7 mA |
| Flash Memory | 256 KB |
| SRAM | 32 KB |
| EEPROM | None |
| Clock Speed | 48 MHz |
| Built-in LED | Pin 13 |
| Dimensions (L × W) | 68 mm × 53 mm |
| Weight | 12 g |
| Shipment Weight | 0.0438 kg |
| Shipment Dimensions | 8 × 6 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Arduino boards based on AVR microcontrollers get a reset and restart sketch execution each time the Serial Monitor of the Arduino Software (IDE) is opened. This is also the mechanism used to upload sketches to these boards. This board is different: when the Zero is connected through the Programming Port and you open the Serial Monitor, the board does not automatically reset and the sketch loaded keeps running. To restart the sketch you need to press the reset button on the board itself.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x Arduino Zero Original
