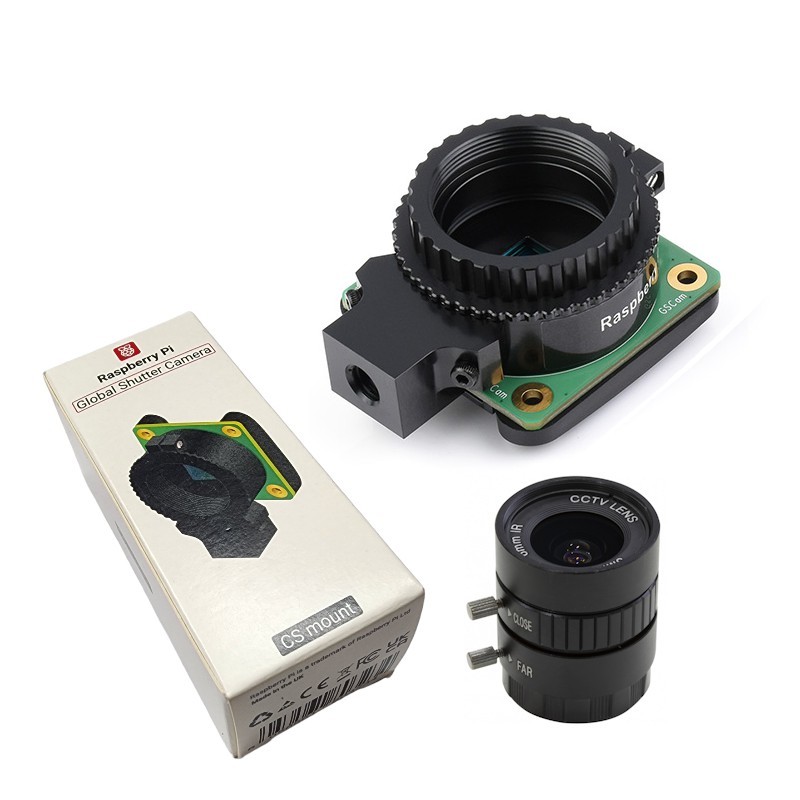

The Raspberry Pi Original Global Shutter Camera with 6mm Lens is engineered for high-performance imaging in motion-intensive applications. Featuring a 1.6MP Sony IMX296 sensor, it eliminates the distortions caused by rolling shutter, making it perfect for machine vision, robotics, and industrial automation. With large 3.45μm pixels, the camera delivers excellent light sensitivity and supports exposure times as short as 30μs under proper lighting conditions. Its C/CS-mount lens system ensures wide compatibility, while the included 6mm lens and adapter provide out-of-the-box functionality. Compact and robust, this camera module is compatible with all Raspberry Pi boards featuring a CSI connector, making it an essential tool for developers, makers, and researchers. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Global Shutter Sensor – Captures fast motion without distortion.
Sony IMX296 – 1.6MP sensor optimized for machine vision and robotics.
High Sensitivity – Large 3.45μm pixels support short exposure times (down to 30μs).
C/CS Lens Mount – Compatible with a wide range of lenses; adapter included.
Compact & Lightweight – Only 38 × 38 mm in size, weighs just 34g (41g with adapter).
Full Compatibility – Works with any Raspberry Pi board with a CSI connector.
Integrated IR Cut Filter – Ensures natural color reproduction.
Versatile Applications – Ideal for industrial automation, robotics, and scientific projects.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Machine Vision – Industrial inspection, quality control, and automation.
Robotics – Navigation, object detection, and real-time vision processing.
High-Speed Photography – Capture fast motion without rolling shutter artifacts.
Research & Education – Advanced imaging experiments and computer vision projects.
IoT & AI Projects – Image recognition and real-time monitoring systems.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Product Type | Global Shutter Camera Module |
| Resolution | 1.58MP (Sony IMX296) |
| Pixel Size | 3.45μm × 3.45μm |
| Sensor Size | 6.3mm diagonal |
| Output Format | RAW10 |
| Exposure Time | Min. 30μs |
| Form Factor | 38 × 38 × 19.8mm (29.5mm with adapter & dust cap) |
| Weight | 34g (41g with adapter & dust cap) |
| Lens Mount | C/CS mount (6mm lens included) |
| Adjustable Back Focus | 12.5–22.4mm |
| IR Cut Filter | Integrated |
| Ribbon Cable | 150mm included |
| Tripod Mount | 1/4”-20 standard |
| Compatibility | All Raspberry Pi with CSI connector |

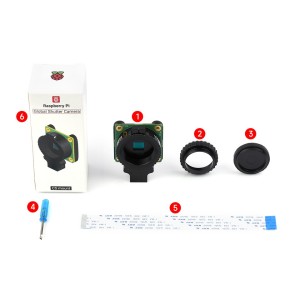

| Accessories Included | C-CS adapter, 6mm lens, screwdriver |
| Shipment Weight | 0.0732 kg |
| Shipment Dimensions | 17 × 13 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
| Model: | IMX296LQR-C |
| Resolution: | 1.58 MP (color), 1456 × 1088 |
| CMOS diagonal size: | 6.3mm |
| Pixel size: | 3.45µm × 3.45µm |
| OUTPUT | RAW10 |
|---|
| BACK FOCUS | Adjustable (12.5~22.4mm) |
|---|
| LENS SUPPORT | C-mount / CS-mount (C-CS adapter included) |
|---|
| IR CUT FILTER | Integrated |
|---|
| TRIPOD MOUNT | 1/4″-20 |
|---|
| WEIGHT | 41g |
|---|
| CABLE LENGTH | 150mm |
|---|
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

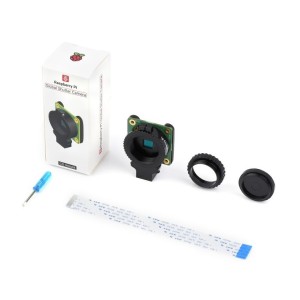

Package Includes:
1 x Raspberry Pi Original Global Shutter Camera Module with 6mm Lens
