Product Description:
The Raspberry Pi Global Shutter Camera Module is the official high-performance camera from the Raspberry Pi Foundation, designed for high-speed motion photography and machine vision applications. Built around the Sony IMX296 1.6MP global shutter sensor, this camera eliminates the “jelly effect” found in rolling shutter sensors, making it ideal for capturing fast-moving objects with precision.
With its large 3.45μm × 3.45μm pixel size, the module provides excellent low-light sensitivity and supports short exposure times as low as 30µs under adequate lighting. The included C-to-CS mount adapter makes it compatible with a wide range of industrial lenses, while the integrated IR-cut filter ensures accurate color reproduction.
Fully compatible with all Raspberry Pi boards, this module is the perfect solution for robotics, machine vision, industrial automation, and scientific imaging.
Key Features:
High-Speed Global Shutter Sensor: Sony IMX296, 1.6MP (1456 × 1088).
No Jelly Effect: Captures fast motion without distortion.
Large Pixel Size: 3.45µm × 3.45µm for high sensitivity and low-light performance.
Short Exposure Time: As low as 30µs with sufficient lighting.
Lens Compatibility: Supports C-mount and CS-mount lenses (C-CS adapter included).
IR Cut Filter: Built-in for accurate color imaging.
Tripod Mount: Standard 1/4″-20 mount for stability.
Broad Compatibility: Works with all Raspberry Pi series boards (adapter cable required for Raspberry Pi 5, Zero, and Compute Module series).
Technical Specifications:
Sensor: Sony IMX296LQR-C (Color)
Resolution: 1.58 MP (1456 × 1088)
Pixel Size: 3.45µm × 3.45µm
Sensor Size (Diagonal): 6.3mm
Output Format: RAW10
Back Focus: Adjustable (12.5–22.4mm)
Lens Support: C-mount / CS-mount (adapter included)
IR Cut Filter: Integrated
Tripod Mount: 1/4″-20 standard
Cable Length: 150 mm
Weight: 41g
Applications:
High-speed photography
Machine vision and robotics
Industrial inspection systems
Scientific imaging and research
Motion tracking and automation projects

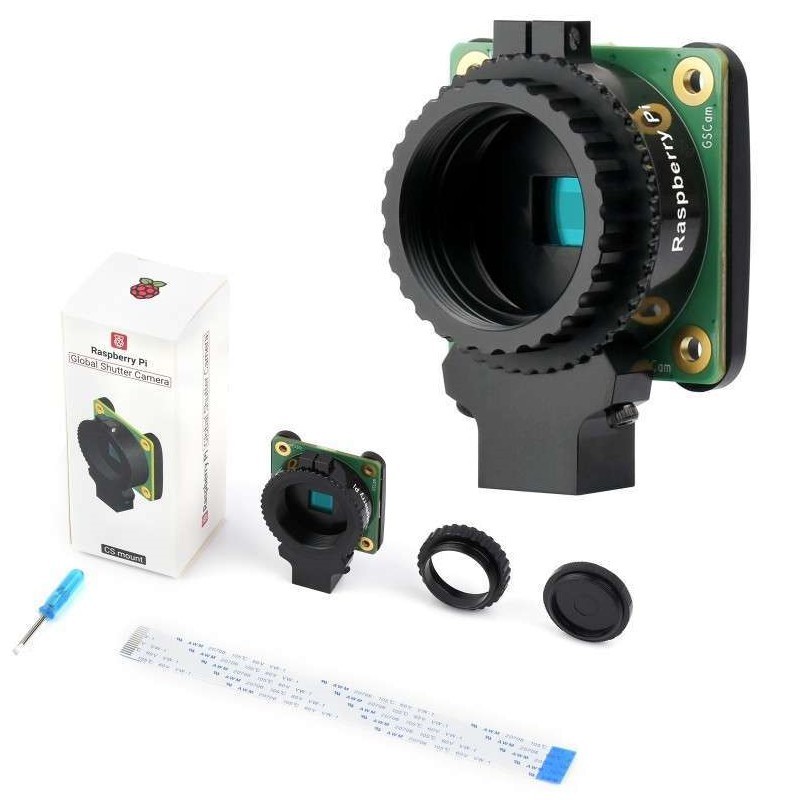

Package Includes:
Why Choose the Raspberry Pi Global Shutter Camera?
Unlike traditional rolling shutter modules, this global shutter version delivers distortion-free high-speed imaging, making it perfect for fast motion and professional vision applications. With its rugged build, lens flexibility, and Raspberry Pi ecosystem support, it’s a reliable choice for both hobbyists and professionals.
Capture motion with precision using the Raspberry Pi Original Global Shutter Camera Module—the ideal tool for next-gen imaging projects.
