Product Overview

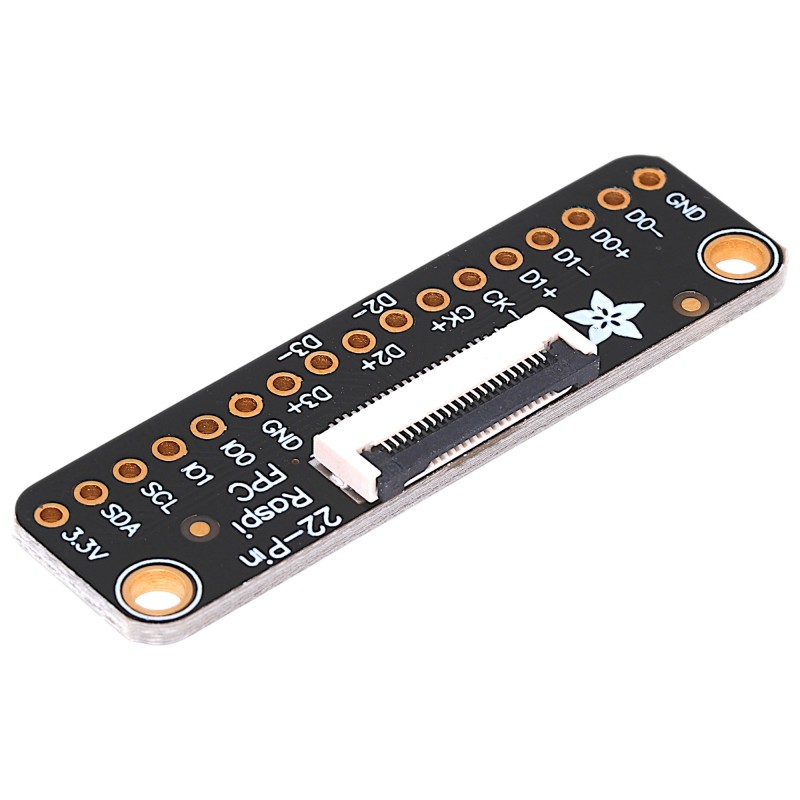

This FPC breakout board is designed for devices that use a high speed HSTX or DSI flexible cable interface, such as Raspberry Pi 5 and RP2350 based boards. It allows access to high speed differential video signals using a standard 22 pin 0.5 mm pitch FPC cable, making it suitable for custom adapters, signal probing, or experimental display connections.
The board breaks out high speed differential pairs along with power, control, and auxiliary signals onto solder pads for flexible integration into custom hardware designs.
Key Features
Supports 22 pin 0.5 mm pitch FPC cables
Compatible with Raspberry Pi 5 DSI interface
Compatible with RP2350 HSTX interface
Exposes multiple high speed differential data lanes
Includes differential clock pair
Provides 3.3 V power output
Includes I2C bus lines
Provides two general purpose GPIO signals
Large ground plane for improved signal integrity
Signal Access
Differential data lanes
Differential clock lane
3.3 V power
Ground
I2C SDA and SCL
Two GPIO pins
Design Notes
This breakout is intended for short distance and experimental use. High speed differential signals are sensitive to impedance mismatch, long wires, and breadboard connections. Care should be taken to keep traces and connections as short and clean as possible to reduce signal degradation.
Typical Applications
Custom display adapters
High speed signal testing and probing
Interface development for DSI or HSTX displays
Prototyping and educational use
Package Contents
One FPC breakout board
Not Included
22 pin 0.5 mm FPC cable
