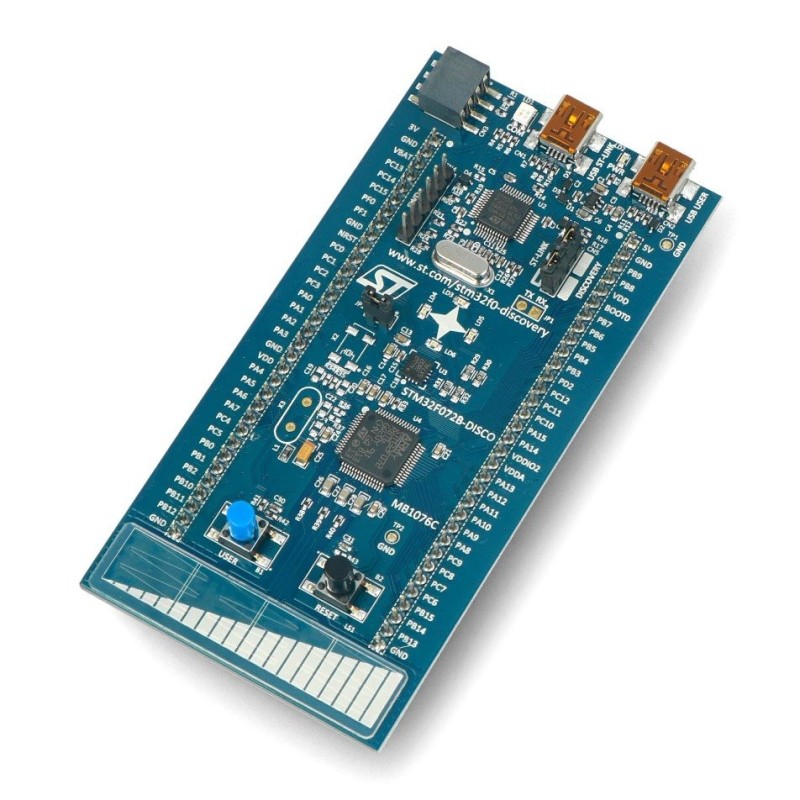

The STM32F072 Discovery Kit is a versatile development board based on the STM32F072RBT6 microcontroller, equipped with an ARM Cortex-M0 core running at 48 MHz. With 128 KB Flash and 16 KB SRAM, this kit is an excellent entry point into the STM32 family, providing developers with the tools to explore ARM Cortex-M0–based systems.
Product Description:
The STM32F072 Discovery Kit is a versatile development board based on the STM32F072RBT6 microcontroller, equipped with an ARM Cortex-M0 core running at 48 MHz. With 128 KB Flash and 16 KB SRAM, this kit is an excellent entry point into the STM32 family, providing developers with the tools to explore ARM Cortex-M0–based systems.
This Discovery board goes beyond a simple MCU platform by including an L3GD20 3-axis gyroscope, making it ideal for motion detection and sensor-based applications. It features six LEDs (four user-controllable), two push buttons (user + reset), goldpin headers for I/O access, and an integrated ST-LINK/V2 debugger/programmer with SWD output.
Designed for easy prototyping and experimentation, the kit also includes a universal mounting board, enabling users to quickly build and test custom circuits.
Key Features:
Microcontroller: STM32F072RBT6
ARM Cortex-M0, 48 MHz
128 KB Flash, 16 KB SRAM
Package: LQFP64
Onboard Sensor: 3-axis gyroscope (L3GD20)
Debugger: ST-LINK/V2 integrated (can be used standalone with SWD output)
Connectivity & I/O:
USB device support
Goldpin headers for GPIO access
Onboard Components:
6 LEDs (4 user-controllable)
2 Buttons (RESET and USER)
Mini-USB connector
Power Supply: USB or external (5V / 3.3V)
Extras: Includes universal prototyping board
Technical Specifications:
Core: ARM Cortex-M0, 32-bit, up to 48 MHz
Flash Memory: 128 KB
SRAM: 16 KB
Package: LQFP64
Onboard Sensor: L3GD20 gyroscope (3-axis)
Interfaces: USB, GPIO, SWD
Debugger/Programmer: ST-LINK/V2
Supply Voltage: 3.3V / 5V
Form Factor: Discovery board with goldpin headers
Applications:
Motion detection and orientation sensing
Robotics and automation projects
Educational and prototyping platforms
USB-enabled embedded systems
General embedded development with Cortex-M0
Package Includes:
1 × STM32F072 Discovery Kit with STM32F072RBT6 MCU
1 × Universal prototyping board
Why Choose the STM32F072 Discovery Kit?
With its built-in gyroscope, USB support, and integrated debugger, the STM32F072 Discovery Kit provides more than just a microcontroller board—it’s a complete development environment. Perfect for beginners and professionals, it combines affordability with the powerful STM32 ecosystem and extensive example libraries.
Kickstart your embedded development with the STM32F072 Discovery Kit—compact, sensor-equipped, and ready for innovation.
