Reference: RBD-1827
Banner

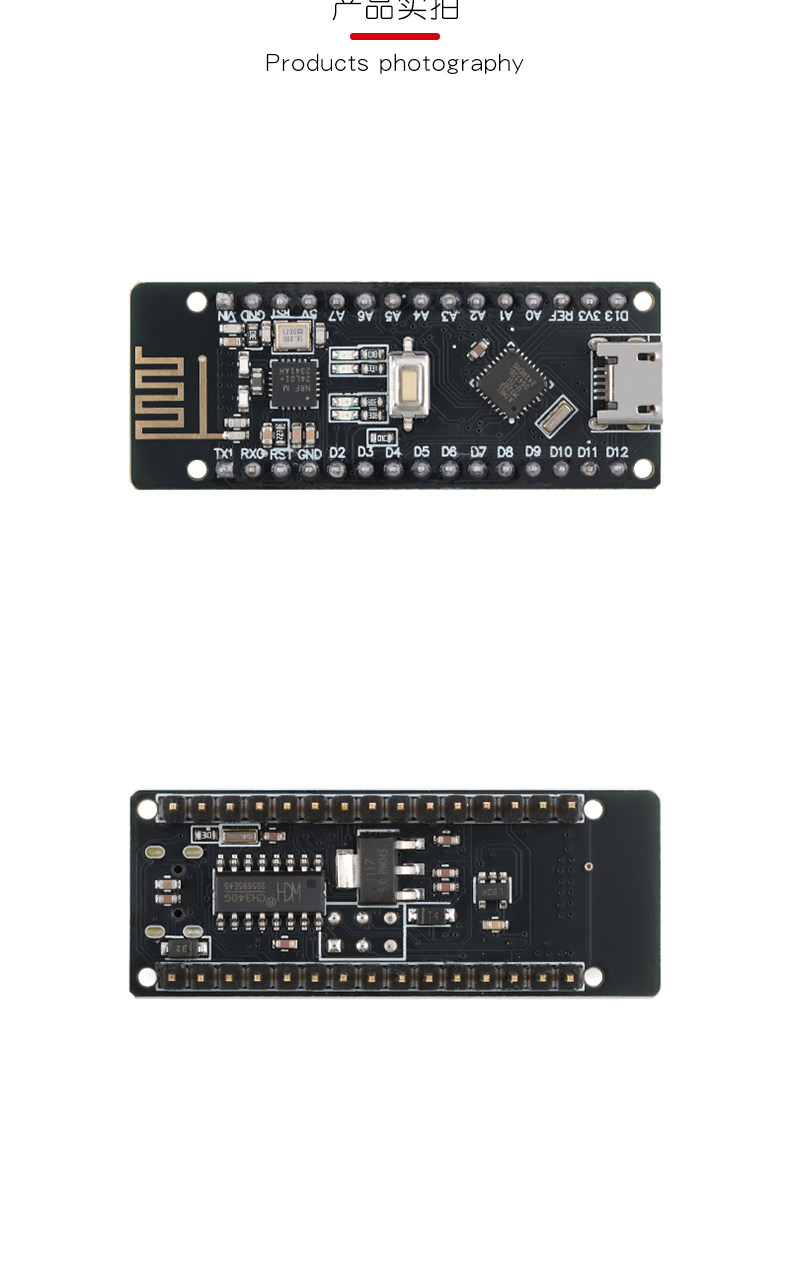

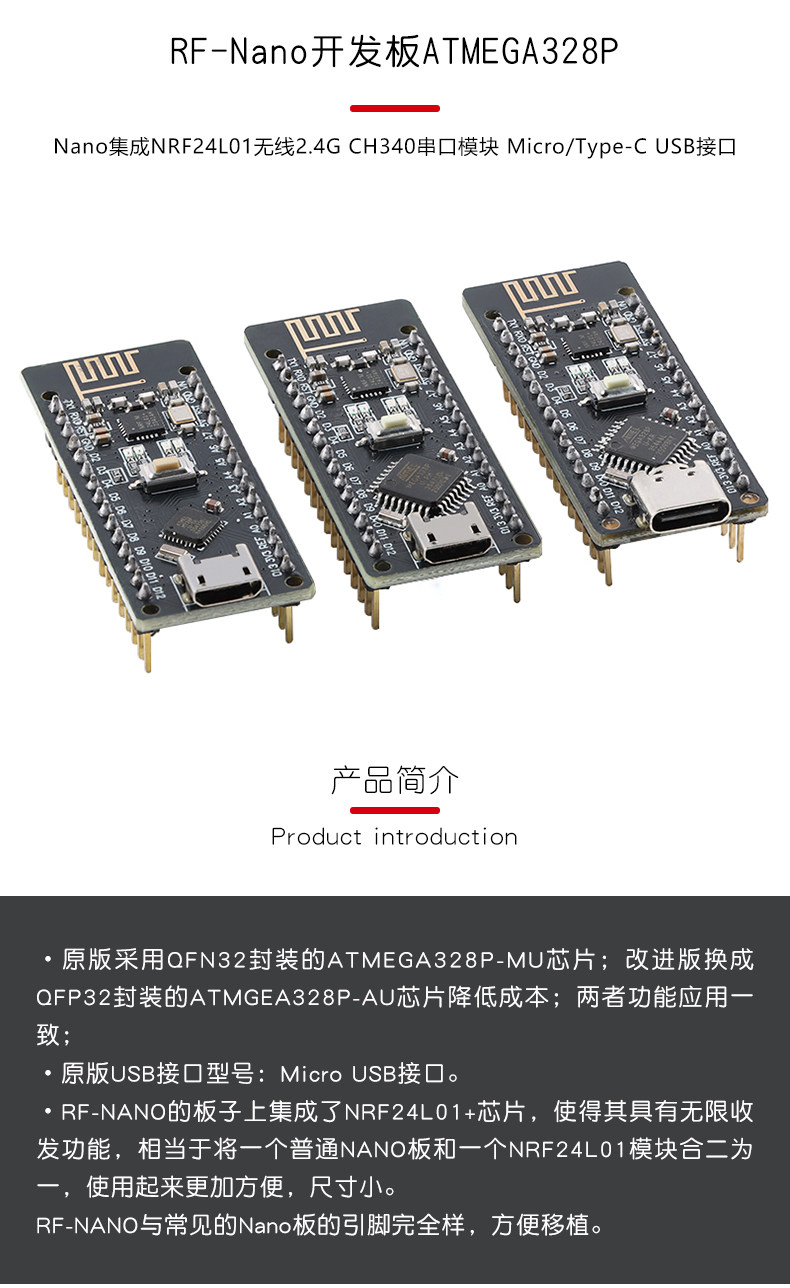

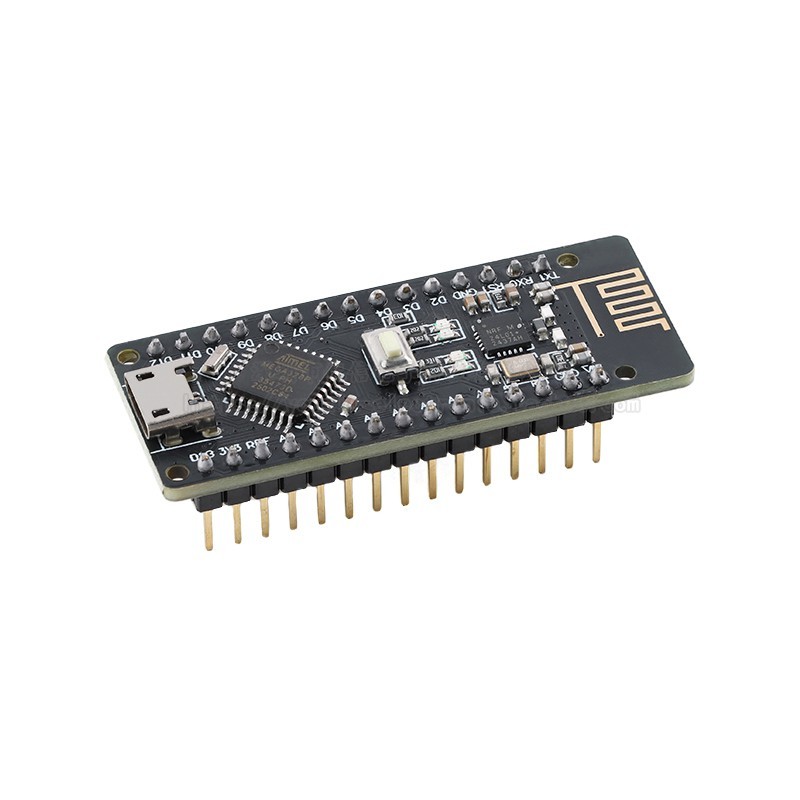

The RF-NANO Development Board (Micro USB version) is a compact wireless microcontroller board based on the ATmega328P, with an integrated 2.4GHz NRF24L01 wireless transceiver. It combines the functionality of a standard Nano board and an NRF24L01 module into a single PCB, reducing wiring complexity and saving space.
This improved version uses a Micro-USB interface with a CH340 USB-to-serial converter, making it easy to program using the Arduino IDE. The board maintains full pin compatibility with standard Nano layouts, allowing existing projects to be migrated easily.
Ideal for wireless sensor networks, remote control systems, IoT prototypes, and DIY RF projects.
The RF-NANO Development Board (Micro USB version) is a compact wireless microcontroller board based on the ATmega328P, with an integrated 2.4GHz NRF24L01 wireless transceiver. It combines the functionality of a standard Nano board and an NRF24L01 module into a single PCB, reducing wiring complexity and saving space.
This improved version uses a Micro-USB interface with a CH340 USB-to-serial converter, making it easy to program using the Arduino IDE. The board maintains full pin compatibility with standard Nano layouts, allowing existing projects to be migrated easily.
Ideal for wireless sensor networks, remote control systems, IoT prototypes, and DIY RF projects.
ATmega328P microcontroller (Nano-compatible)

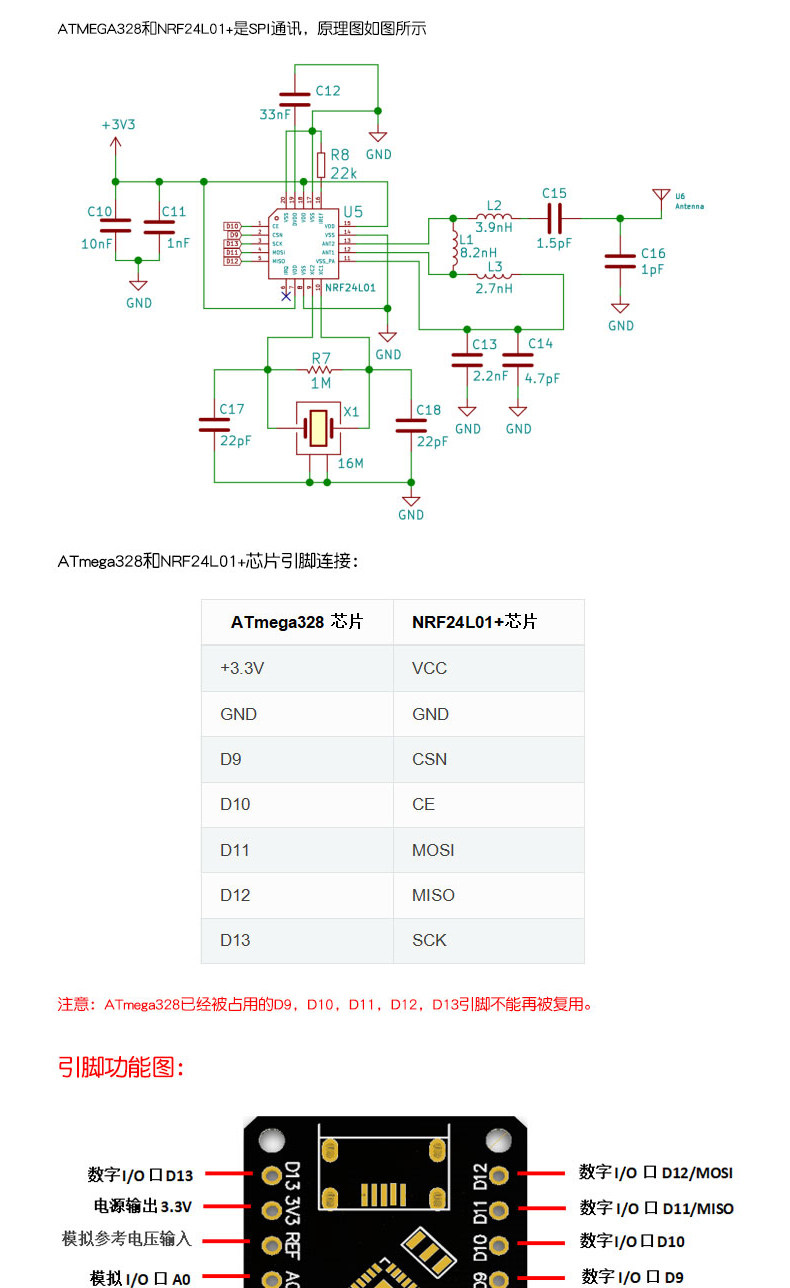

Integrated NRF24L01+ 2.4GHz wireless module
Micro USB interface for programming and power
CH340 USB-to-serial chip

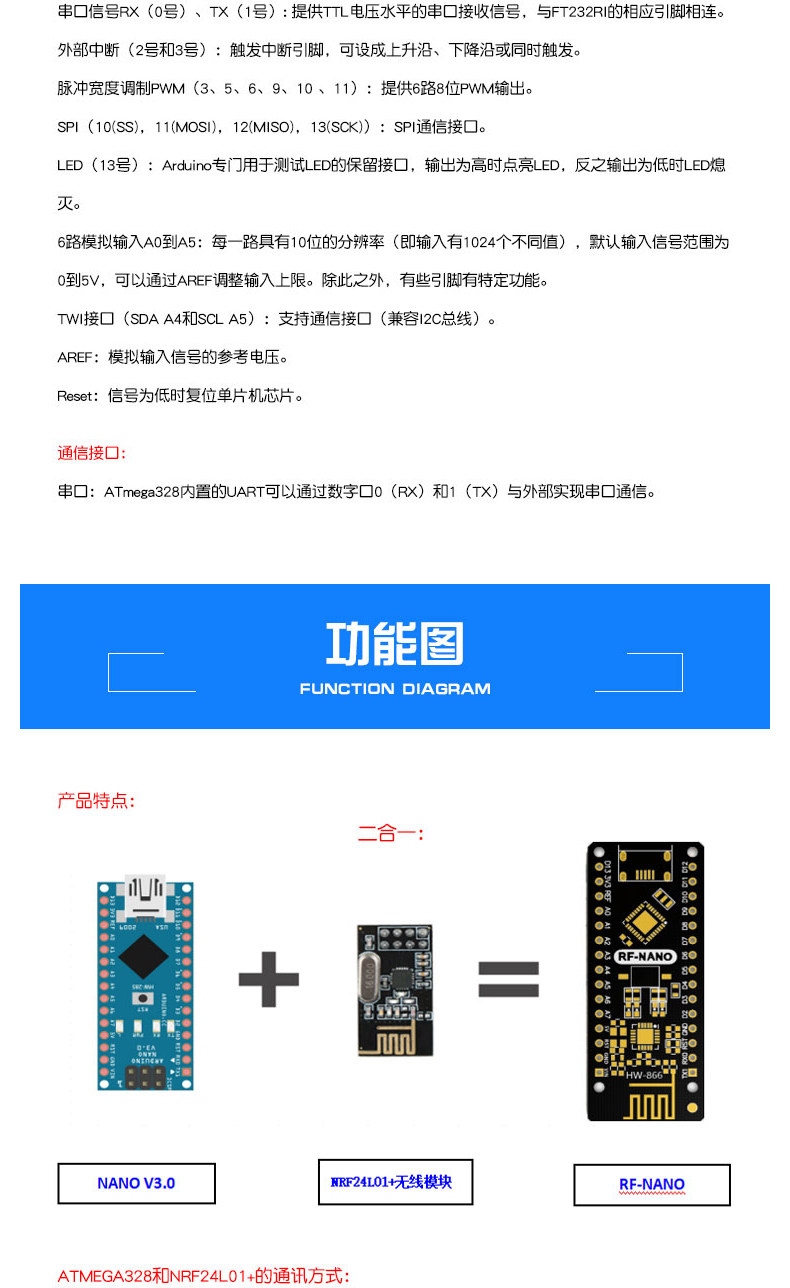

Compact all-in-one design (Nano + RF module)

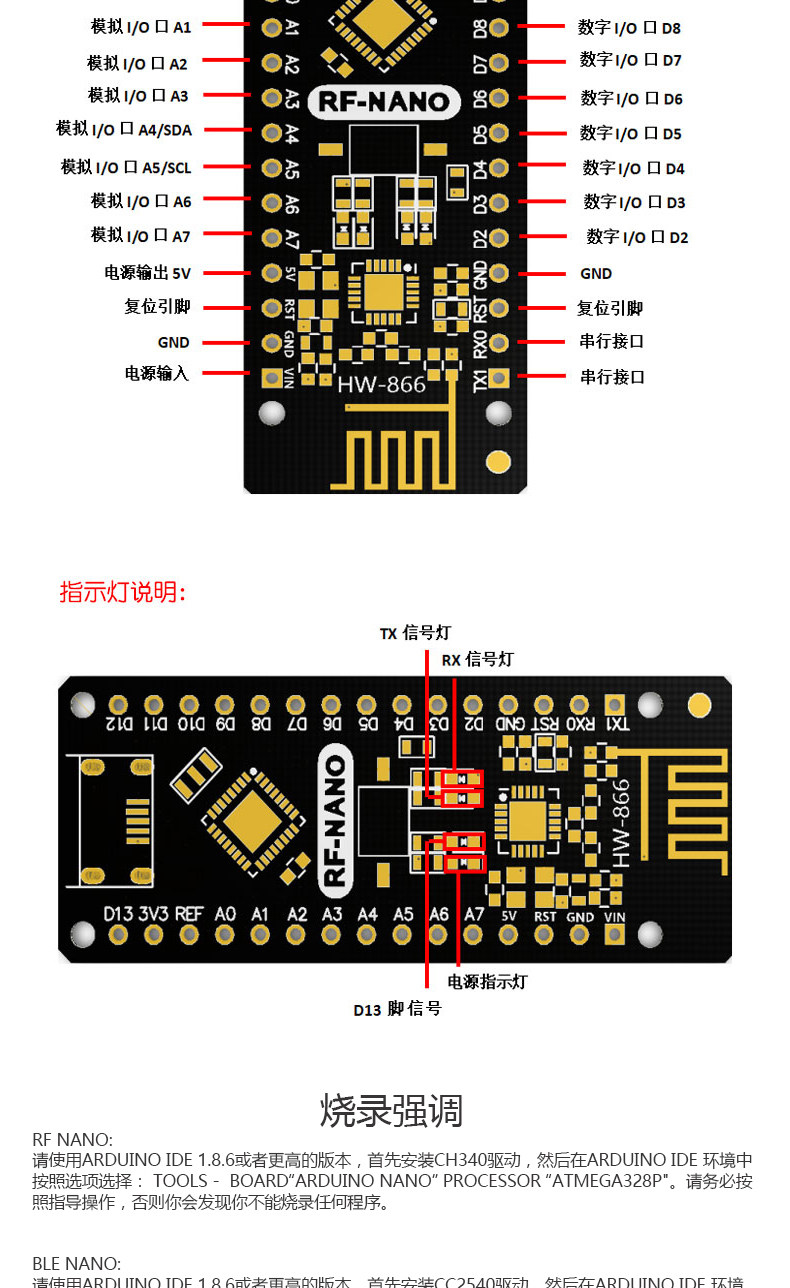

Fully compatible pin layout with standard Nano boards
MCU: ATmega328P
Operating Voltage: 5V
Input Voltage (recommended): 7–12V
Clock Frequency: 16 MHz
Digital I/O Pins: 14 (6 PWM)
Analog Inputs: 8
Flash Memory: 32KB (2KB used by bootloader)
SRAM: 2KB
EEPROM: 1KB
Wireless: NRF24L01+, 2.4GHz ISM band
USB Interface: Micro USB
USB-Serial Chip: CH340
Wireless Arduino projects
IoT nodes and RF communication
Remote controllers and receivers
DIY robotics and automation
Low-power wireless experiments
