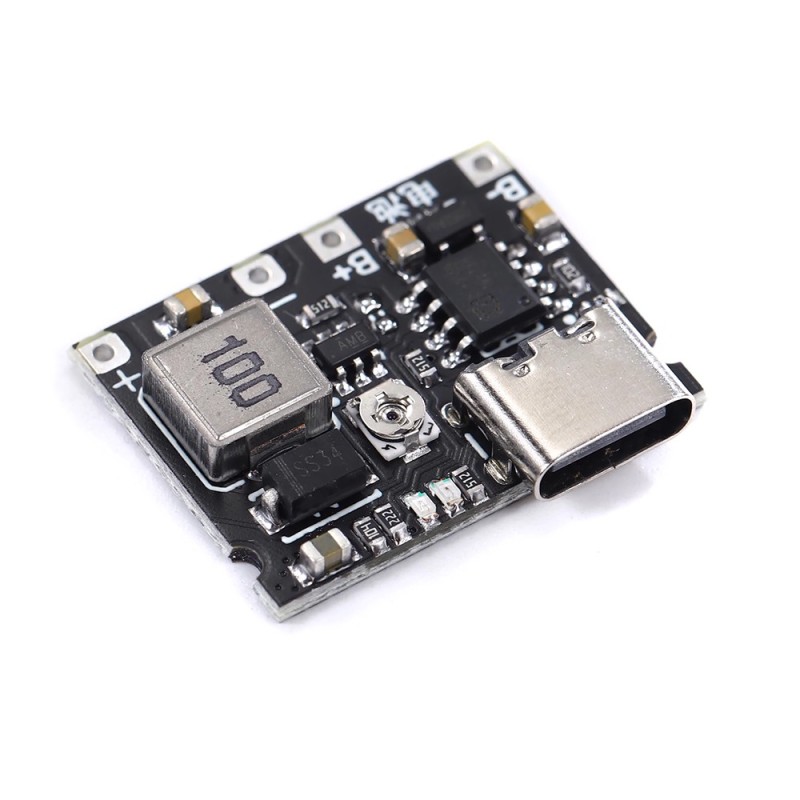

The Type-C 2A Lithium Battery Fast Charge Module is a compact, versatile charging and boost board designed for single-cell 3.7V lithium-ion or polymer batteries. It supports charging via a USB Type-C input and offers a programmable charging current (up to 1A) with multiple charging phases, including 0V activation and trickle charging. With an adjustable output voltage range of 4.2V to 28V, this module doubles as a DC-DC step-up booster, making it highly suitable for powering devices that require higher voltages. Built-in safety features include over-temperature protection, reverse polarity protection, and soft-start surge control, ensuring reliable and safe operation. The module provides dual LED indicators to show charging (red) and standby/fully charged (blue) status, making monitoring easy. Compact and efficient, it is perfect for DIY projects, power banks, battery charging stations, and portable electronic devices requiring both charging and regulated boosted output. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Type-C Input – Convenient and modern charging interface.
Fast Charging – Up to 2A charging current with multiple phases.
Wide Output Range – Adjustable 4.2V to 28V for versatile applications.
Boost Converter – DC-DC step-up capability for higher voltage output.
Comprehensive Protection – Reverse polarity, over-temp, and surge protection.
Status Indicators – Red/Blue LEDs show charging and standby states.
Programmable Current – Up to 1A linear charging for safe battery use.
Compact Design – Ideal for embedded and portable applications.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
DIY Electronics – Power custom battery-operated projects.
Portable Devices – Charge and power gadgets with regulated voltage.
Power Banks – Build lithium battery-based backup systems.
IoT Projects – Enable stable power supply for connected devices.
Battery Testing – Use for charging and evaluating single-cell batteries.
Educational Use – Demonstrates lithium battery charging principles.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Model | Type-C 2A Lithium Battery Fast Charge Module |
| Input Voltage Range | 4.2V – 6.5V |
| Output Voltage | Adjustable 4.2V – 28V |
| Maximum Power | 5W |

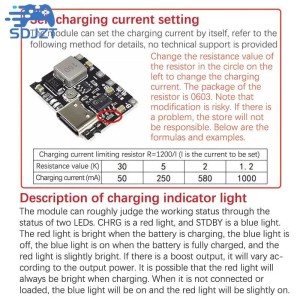

| Charging Current | Programmable, up to 1A (linear charging) |
| Supported Batteries | Single 3.7V Li-ion/Polymer (4.2V full charge) |
| Charging Type | CC/CV with 0V activation & trickle charging |
| Protection Features | Over-temp, reverse polarity, surge, soft-start |
| LED Indicators | Red (charging), Blue (standby/charged) |
| Output Mode | Dual parallel ports |
| Standby Current | Low power mode available |
| Operating Temperature | -40°C to +80°C |
| Shipping Weight | 0.0038 kg |
| Shipment Dimensions | 2 × 2 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x Type-C 2A Lithium Battery Fast Charge Module
