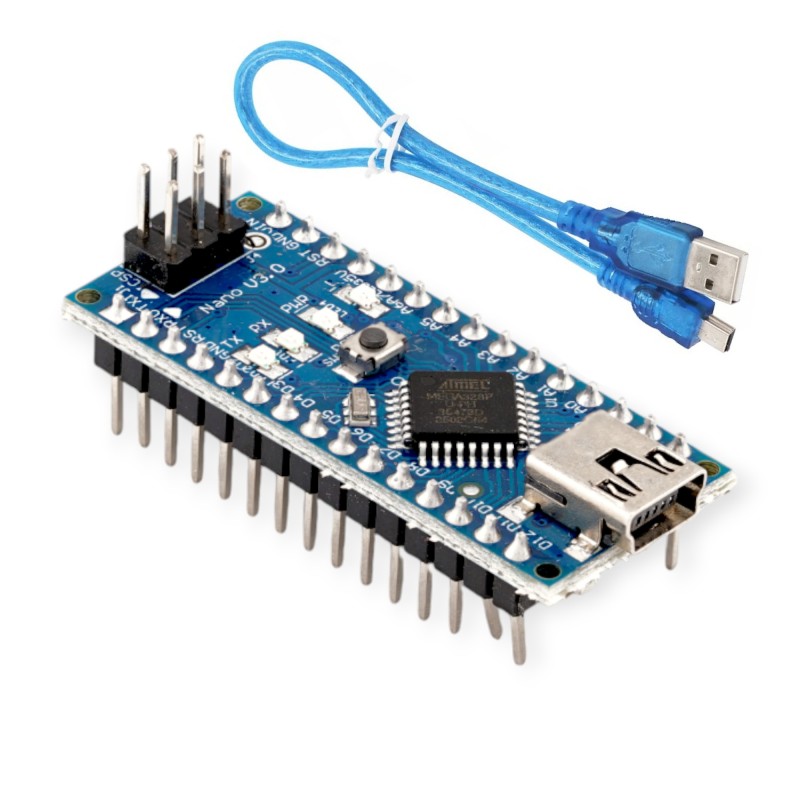

    Arduino Nano R3

    RBD-0926

    • USB Driver: Origianl FT232 Driver
    • Manufacturer: China
    • Operating Voltage (logic level): 5V
    • 8 analog inputs ports: A0 ~ A7
    • 14 Digital input / output ports: TX, RX, D2 ~ D13
    • 1 pair of TTL level serial transceiver ports RX / TX
    • Using Atmel Atmega328P-AU MCU
    • There is a bootloader installed in it
    • Standard 0.1” spacing DIP (breadboard friendly).
    • Manual reset switch.
    • Please select "Old Bootloader" during upload.
    BDT 580
    BDT 580 BDT 580 BDT 580 BDT 580
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 580 Tax excluded
    BDT 580 Tax included
    BDT 0 Tax
    BDT 580 Tax excluded
    BDT 0 Tax
    BDT 580 Tax included
    Quantity
    In-Stock
    97 Items

    330 people have purchased this item
    9 people recently added this item to the cart
    97 items in stock
    Description

    This Arduino Nano R3 is Arduino Nano Based on Gravitech US FT232. It is a breadboard-friendly board based on the ATmega328P from Arduino officials made in Italy. It has more or less the same functionality of the Arduino Duemilanove but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one. RoboticsBD

    Original Arduino Nano is a surface mount breadboard embedded version with integrated USB. It is the smallest, complete, and breadboard-friendly. It has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper. Physically, it is missing power jack. The Nano is automatically sensing and switch to the higher potential source of power, there is no need for the power select jumper.

    Nano’s got the breadboard-ability of the Boarduino and the Mini+USB with a smaller footprint than either, so users have more breadboard space. It’s got a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other). This new version 3.0 comes with ATMEGA328 which offers more programming and data memory space. It is two layers. That makes it easier to hack and more affordable.

    You end up paying less with Nano than Mini and USB combined! Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    • Please select "Old Bootloader" during upload.

    Getting Started

    You can find in the Getting Started section all the information you need to configure your board, use the Arduino Software (IDE), and start tinker with coding and electronics.

    Features :

    1. 1 pair of TTL level serial transceiver ports RX / TX
    2. Using Atmel Atmega328P-AU MCU
    3. There is a bootloader(old) installed in it
    4. Support USB download and Power
    5. Support for external 5V ~ 12V DC power supply
    6. Support power supply by 9V battery
    7. Support ISP download
    8. Automatic reset during program download.
    9. Power OK blue LED on the bottom.
    10. Green (TX), red (RX) and orange (L) LED.
    11. +5V to AREF jumper. RoboticsBD
    12. Auto sensing/switching power input.
    13. Small mini-B USB for programming and serial monitor.
    14. ICSP header for direct program download.
    15. Standard 0.1” spacing DIP (breadboard friendly).
    16. Manual reset switch. RoboticsBD

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    Model TypeNano
    ColorBlue
    MicrocontrollerATmega328
    Operating Voltage (VDC)5
    Input Supply PortUSB Mini
    Input Voltage(Recommended)7-12 V
    Power Consumption (Watt)1
    Analog I/O Pins8
    Digital I/O Pins22 (6 of which are PWM)
    PWM Output Pins6
    ArchitectureAVR
    Clock Speed16 MHz
    Flash Memory32 KB
    EEPROM1 KB
    SRAM2
    Weight (gm)7
    Length (mm)45
    Width (mm)18
    Shipment Weight0.019 kg
    Shipment Dimensions9 × 6 × 3 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Package Includes:

    1 x Arduino Nano R3

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Product Details
    RBD-0926
    97 Items

    Specific References

    EAN13
    0926
    Comments (0)
    Grade
    No customer reviews for the moment.
    16 other products in the same category:
    Nano Expansion Board IO Shield for Arduino Nano By Hello Stem Robotics Bangladesh Nano Expansion Board IO Shield for Arduino Nano By Hello Stem Robotics Bangladesh

    Reference: RBD-3617

    Nano Expansion Board IO Shield for Arduino Nano By Hello Stem

    (0)
    The Nano Expansion Board is a compact and convenient IO shield designed specifically for the Arduino Nano development board. It breaks out all essential digital and analog pins onto clearly labeled pin headers, enabling quick prototyping and streamlined module connections. Whether you're building a simple project or a complex system, this expansion board...
    BDT 450
    BDT 450 tax incl.
    BDT 450 tax excl.
    BDT 450 tax excl.
    BDT 450 tax incl.
    BDT 450 tax incl.
    BDT 0 Tax
    BDT 450 tax excl.
    BDT 450 tax excl.
    BDT 0 Tax
    BDT 450 tax incl.
    More Nano Expansion Board IO Shield for Arduino Nano By Hello Stem
    In stock
    In stock: 12
    LILYGO TTGO T-A7670E-R2 Built-in GPS R2 4G LTE Development Board Robotics Bangladesh LILYGO TTGO T-A7670E-R2 Built-in GPS R2 4G LTE Development Board Robotics Bangladesh

    Reference: RBD-3124

    LILYGO TTGO T-A7670E-R2 Built-in GPS R2 4G LTE Development Board

    (0)
    ESP32-based 4G LTE IoT board with integrated GSM, LTE, and GPS (GNSS) support Features A7670E LTE module for reliable cellular connectivity across global bands Built-in Wi-Fi, Bluetooth v4.2, and multiple interface options (I2C, SPI, UART, CAN, I2S) Equipped with 4MB Flash and 8MB PSRAM for complex applications Supports GNSS (GPS, Beidou, Glonass) for...
    BDT 7,950
    BDT 7,950 tax incl.
    BDT 7,950 tax excl.
    BDT 7,950 tax excl.
    BDT 7,950 tax incl.
    BDT 7,950 tax incl.
    BDT 0 Tax
    BDT 7,950 tax excl.
    BDT 7,950 tax excl.
    BDT 0 Tax
    BDT 7,950 tax incl.
    More LILYGO TTGO T-A7670E-R2 Built-in GPS R2 4G LTE Development Board
    In-Stock
    In stock: 10
    STM32F411E Discovery Kit with STM32F411VET6 Cortex-M4F Microcontroller Robotics Bangladesh STM32F411E Discovery Kit with STM32F411VET6 Cortex-M4F Microcontroller Robotics Bangladesh

    Reference: RBD-3170

    Brand: ST Microelectronics

    STM32F411E Discovery Kit with STM32F411VET6 Cortex-M4F Microcontroller

    (0)
    STM32F411E Discovery Kit featuring the powerful STM32F411VET6 Cortex-M4F microcontroller. 100 MHz ARM Cortex-M4F core with 512 KB Flash and 128 KB RAM for advanced embedded projects. Integrated motion sensors (accelerometer + gyroscope) for robotics and motion applications. Onboard audio system with MEMS microphone and DAC audio converter for multimedia...
    BDT 4,966
    BDT 4,966 tax incl.
    BDT 4,966 tax excl.
    BDT 4,966 tax excl.
    BDT 4,966 tax incl.
    BDT 4,966 tax incl.
    BDT 0 Tax
    BDT 4,966 tax excl.
    BDT 4,966 tax excl.
    BDT 0 Tax
    BDT 4,966 tax incl.
    More STM32F411E Discovery Kit with STM32F411VET6 Cortex-M4F Microcontroller
    Last items in stock
    In stock: 3
    Waveshare ESP32-S3 A7670E 4G High Performance Development Board Robotics Bangladesh Waveshare ESP32-S3 A7670E 4G High Performance Development Board Robotics Bangladesh

    Reference: RBD-3231

    Brand: Waveshare

    Waveshare ESP32-S3 A7670E 4G High Performance Development Board

    (0)
    Waveshare ESP32-S3 A7670E combines 4G LTE, WiFi, Bluetooth, and GNSS in one board. Features powerful dual-core Xtensa® LX7 processor up to 240MHz for advanced IoT performance. Supports camera interface (OV2640), 18650 battery, solar panel, and TF card expansion. Includes A7670E Cat-1 4G module for LTE, SMS, call, and GPS/BeiDou/GLONASS navigation. Enables...
    BDT 9,500
    BDT 9,500 tax incl.
    BDT 9,500 tax excl.
    BDT 9,500 tax excl.
    BDT 9,500 tax incl.
    BDT 9,500 tax incl.
    BDT 0 Tax
    BDT 9,500 tax excl.
    BDT 9,500 tax excl.
    BDT 0 Tax
    BDT 9,500 tax incl.
    More Waveshare ESP32-S3 A7670E 4G High Performance Development Board
    In-Stock
    In stock: 4
    STM32F051 Discovery Kit STM32F051R8 Microcontroller with ARM Cortex M0 Core Robotics Bangladesh STM32F051 Discovery Kit STM32F051R8 Microcontroller with ARM Cortex M0 Core Robotics Bangladesh

    Reference: RBD-3169

    Brand: ST Microelectronics

    STM32F051 Discovery Kit STM32F051R8 Microcontroller with ARM Cortex M0 Core

    (0)
    STM32F051 Discovery Kit featuring the STM32F051R8T6 microcontroller with ARM Cortex-M0 core. Includes onboard ST-Link/V2 debugger for seamless programming and debugging. Operates with USB or external 5V/3.3V supply for flexible power options. Integrated LEDs, buttons, and goldpin headers for easy prototyping and testing. Ideal for embedded learning, IoT...
    BDT 3,550
    BDT 3,550 tax incl.
    BDT 3,550 tax excl.
    BDT 3,550 tax excl.
    BDT 3,550 tax incl.
    BDT 3,550 tax incl.
    BDT 0 Tax
    BDT 3,550 tax excl.
    BDT 3,550 tax excl.
    BDT 0 Tax
    BDT 3,550 tax incl.
    More STM32F051 Discovery Kit STM32F051R8 Microcontroller with ARM Cortex M0 Core
    In-Stock
    In stock: 4
    Arduino Nano RF Development Board (Improved Version – USB Type-C) Robotics Bangladesh

    Reference: RBD-4024

    Arduino Nano RF Development Board (Improved Version – USB Type-C)

    (0)
    The RF-NANO Development Board (Type-C version) is an enhanced wireless Nano-compatible board built around the ATmega328P, featuring an onboard NRF24L01 2.4GHz RF transceiver and a modern USB Type-C interface. This version offers improved durability and convenience thanks to the reversible Type-C connector while retaining full compatibility with Nano...
    BDT 690
    BDT 690 tax incl.
    BDT 690 tax excl.
    BDT 690 tax excl.
    BDT 690 tax incl.
    BDT 690 tax incl.
    BDT 0 Tax
    BDT 690 tax excl.
    BDT 690 tax excl.
    BDT 0 Tax
    BDT 690 tax incl.
    More Arduino Nano RF Development Board (Improved Version – USB Type-C)
    In stock
    In stock: 6
    Wemos D1 Mini V3 Robotics Bangladesh Wemos D1 Mini V3 Robotics Bangladesh

    Reference: RBD-2651

    Wemos D1 Mini V3

    (0)
    Compact ESP8266 development board with 4MB Flash memory Built-in CH340 USB chipset for easy PC connectivity Compatible with Arduino IDE, NodeMCU, and MicroPython Operates at 3.3V logic, powered via USB 5V Features 11 digital I/O pins and 1 analog input pin (max 3.2V) Perfect for IoT, WiFi-enabled projects, and smart devices
    BDT 430
    BDT 430 tax incl.
    BDT 430 tax excl.
    BDT 430 tax excl.
    BDT 430 tax incl.
    BDT 430 tax incl.
    BDT 0 Tax
    BDT 430 tax excl.
    BDT 430 tax excl.
    BDT 0 Tax
    BDT 430 tax incl.
    More Wemos D1 Mini V3
    In-Stock
    In stock: 14
    Arduino Uno SMD CH340G with Type-C Interface Robotics Bangladesh

    Reference: RBD-3173

    Arduino Uno SMD CH340G with Type-C Interface

    (0)
    Arduino UNO SMD CH340G with Type-C Interface – upgraded UNO R3 for modern connectivity. Features Type-C USB port for reliable data communication and easy connection with laptops. Powered by the Atmega328 microcontroller for stable and consistent performance. CH340G USB-to-serial chip ensures compatibility with Arduino IDE on all major OS. Fully compatible...
    BDT 490
    BDT 490 tax incl.
    BDT 490 tax excl.
    BDT 490 tax excl.
    BDT 490 tax incl.
    BDT 490 tax incl.
    BDT 0 Tax
    BDT 490 tax excl.
    BDT 490 tax excl.
    BDT 0 Tax
    BDT 490 tax incl.
    More Arduino Uno SMD CH340G with Type-C Interface
    In-Stock
    In stock: 90

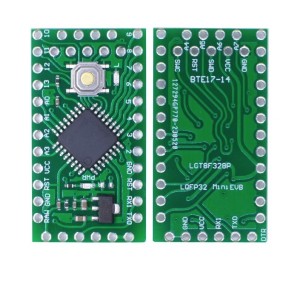

    LGT8F328P MiniEVB Development Board – 5V, ATmega328P Pro Mini Compatible Robotics Bangladesh
