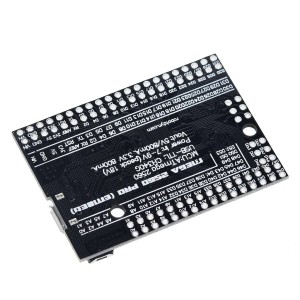

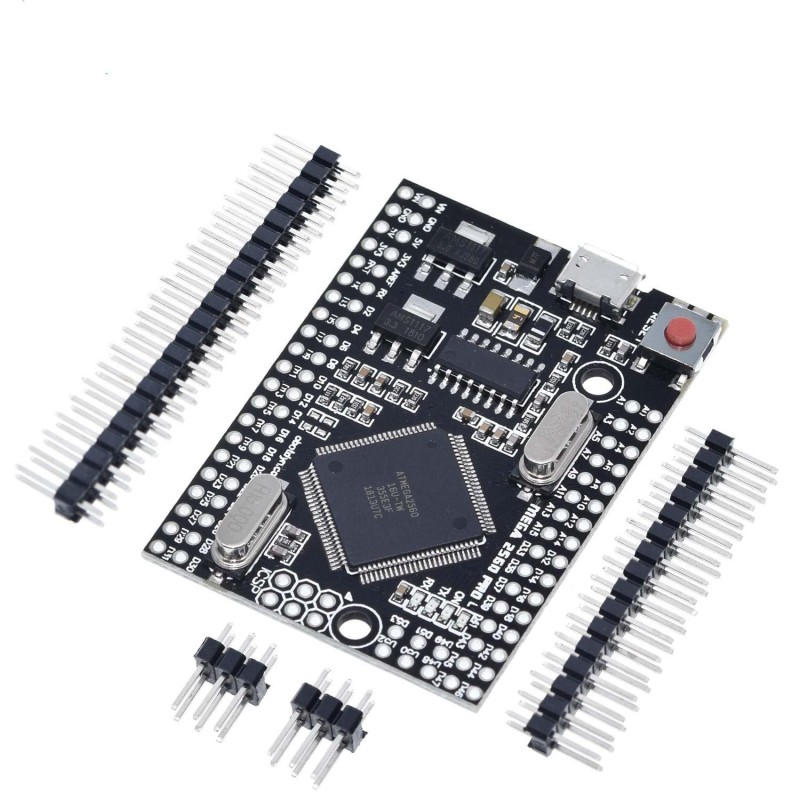

    Mini Mega 2560 PRO (Embed) CH340G/ATmega2560-16AU Robotics Bangladesh
    • Mini Mega 2560 PRO (Embed) CH340G/ATmega2560-16AU Robotics Bangladesh
    • Mini Mega 2560 PRO (Embed) CH340G/ATmega2560-16AU Robotics Bangladesh
    • Mini Mega 2560 PRO (Embed) CH340G/ATmega2560-16AU Robotics Bangladesh

    Mini Mega 2560 PRO (Embed) CH340G/ATmega2560-16AU

    RBD-1214

    • The board is compatible with Mega 2560.
    •  excellent solution for developing projects based on ATmega2560.
    • The board can be powered directly through the Micro USB connector
    • The maximum output current upon 5V is around 800mA, while on the 3.3V it is about 800mA.
    BDT 1,990
    BDT 1,990 BDT 1,990 BDT 1,990 BDT 1,990
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 1,990 Tax excluded
    BDT 1,990 Tax included
    BDT 0 Tax
    BDT 1,990 Tax excluded
    BDT 0 Tax
    BDT 1,990 Tax included
    Quantity
    In-Stock
    21 Items

    70 people have purchased this item
    3 people recently added this item to the cart
    21 items in stock
    Description

    The Mega Pro Embed CH340G / ATmega2560 board is based on the ATmega2560 microcontroller. Built on the Atmel ATmega2560 microcontroller and USB-UART interface chip CH340G. This is a great solution to get your final project on the welding prototype board. RoboticsBD

    The Mega Pro Embed functionalities are identical to the Mega 2560. Even though it is an Embed board, it is solid as stable as the Mega Board. It uses the original chip, and 16 MHz high-quality quartz resonators are present on the board. The board uses the chip CH340G as the converter UART-USB. It provides a stable data exchange result when you work at a frequency of 12Mhz (requires the driver to be installed on the computer).

    You can power the board or power the pins through the MicroUSB connector. The voltage regulator (LDO) can handle input voltages from 6V to 9V (peak 18V) DC. The voltage regulator allows to use up to 18V as an input value, however, we do not recommend exceeding the recommended values aforementioned, since this can lead to excessive heat and damage the device. Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Features:

    1. The board is compatible with Mega 2560.
    2.  excellent solution for developing projects based on ATmega2560.
    3. The board can be powered directly through the Micro USB connector
    4. The maximum output current upon 5V is around 800mA, while on the 3.3V it is about 800mA.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    MicrocontrollerATmega2560
    Operating Voltage5V
    Input Voltage (recommended)6-9V
    Input Voltage (limit)12V
    Digital I/O Pins54 (of which 15 provide PWM output)
    Analog Input Pins16
    DC Current for 5V Pin800 mA
    DC Current for 3.3V Pin800 mA
    Flash Memory256 KB of which 8 KB used by bootloader
    SRAM8 KB
    EEPROM4 KB
    Clock Speed16 MHz
    Built-in LED13
    Length(mm)54
    Width(mm)40
    Height(mm)18
    Weight(g)15
    Shipment Weight0.03 kg
    Shipment Dimensions11 × 8 × 3 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Package Includes:

    1 x Mega2560 Pro ATMEGA2560-16AU USB CH340G Intelligent Electronic Development Board

    1 x 21 Pin Headers

    1 x 16 Pin Headers

    1 x 3 Pin Headers.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Product Details
    RBD-1214
    21 Items

    Specific References

    EAN13
    1214
    Comments (0)
    Grade
    No customer reviews for the moment.
    16 other products in the same category:

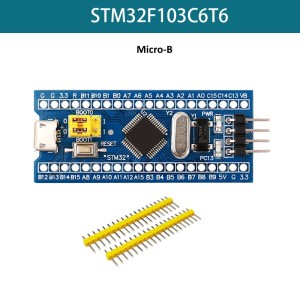

    STM32F103C6T6 Micro-B Domestic Microcontroller Blue Pill Board Robotics Bangladesh

    Reference: RBD-3421

    STM32F103C6T6 Micro-B Domestic Microcontroller Blue Pill Board

    (0)
    STM32F103C6T6 Blue Pill Micro-B Domestic 32-bit ARM Cortex-M3 MCU 72MHz clock speed with 32KB Flash & 10KB SRAM Micro-B USB interface for easy programming & communication Dual 12-bit ADC with up to 16 channels Supports CAN, SPI, I2C, USART, USB interfaces Cost-effective solution for embedded, IoT & automation projects
    BDT 320
    BDT 320 tax incl.
    BDT 320 tax excl.
    BDT 320 tax excl.
    BDT 320 tax incl.
    BDT 320 tax incl.
    BDT 0 Tax
    BDT 320 tax excl.
    BDT 320 tax excl.
    BDT 0 Tax
    BDT 320 tax incl.
    More STM32F103C6T6 Micro-B Domestic Microcontroller Blue Pill Board
    In-Stock
    In stock: 39
    ESP32-S Expansion Board 38-Pin Robotics Bangladesh

    Reference: RBD-3311

    ESP32-S Expansion Board 38-Pin

    (0)
    Expansion baseboard for 38-pin ESP32-S modules (both 0.9" and 1.0" wide versions). Provides full I/O pin access with power (3.3V/5V selectable) and ground for each signal pin. Supports three power input options: USB Micro-B, USB Type-C, or 6.5–16V DC barrel jack. Includes reverse current protection, status LED, and mounting holes for secure installation....
    BDT 350
    BDT 350 tax incl.
    BDT 350 tax excl.
    BDT 350 tax excl.
    BDT 350 tax incl.
    BDT 350 tax incl.
    BDT 0 Tax
    BDT 350 tax excl.
    BDT 350 tax excl.
    BDT 0 Tax
    BDT 350 tax incl.
    More ESP32-S Expansion Board 38-Pin
    In-Stock
    In stock: 18
    STM32 NUCLEO-L432KC Development Board – STM32L432KCU6, ARM Cortex-M4, 256KB Flash, 64KB SRAM Robotics Bangladesh STM32 NUCLEO-L432KC Development Board – STM32L432KCU6, ARM Cortex-M4, 256KB Flash, 64KB SRAM Robotics Bangladesh

    Reference: RBD-3720

    Brand: ST Microelectronics

    STM32 NUCLEO-L432KC Development Board – STM32L432KCU6, ARM Cortex-M4, 256KB Flash, 64KB SRAM

    (0)
    The STM32 NUCLEO-L432KC is a compact and powerful development board based on the STM32L432KCU6 microcontroller, featuring an ARM Cortex-M4 core running at 80 MHz. With 256 KB of Flash memory, 64 KB of SRAM, and built-in protection mechanisms, it provides an excellent platform for low-power and high-performance embedded applications.
    BDT 3,636
    BDT 3,636 tax incl.
    BDT 3,636 tax excl.
    BDT 3,636 tax excl.
    BDT 3,636 tax incl.
    BDT 3,636 tax incl.
    BDT 0 Tax
    BDT 3,636 tax excl.
    BDT 3,636 tax excl.
    BDT 0 Tax
    BDT 3,636 tax incl.
    More STM32 NUCLEO-L432KC Development Board – STM32L432KCU6, ARM Cortex-M4, 256KB Flash, 64KB SRAM
    Last items in stock
    In stock: 2

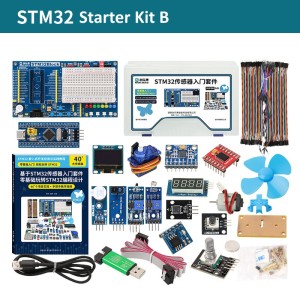

    STM32 Starter Kit B STM32 Development Board and Expansion Kit Robotics Bangladesh
