Product Description:

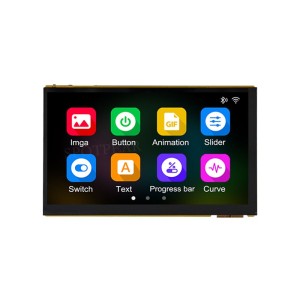

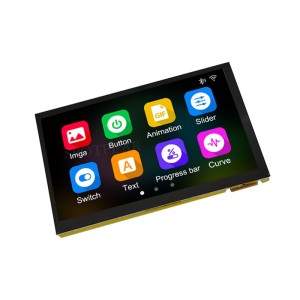

The ESP32-P4 7-Inch Smart Display Development Board is a next-generation HMI (Human-Machine Interface) platform designed for high-performance graphics, IoT, and multimedia applications. It integrates a 7.0-inch 1024×600 IPS TFT LCD touchscreen with an onboard ESP32-C6 microcontroller, supporting both Wi-Fi and Bluetooth connectivity.
Equipped with camera and audio interfaces, TF card slot, RTC module, and lithium battery support, this board is ideal for interactive embedded systems, industrial control panels, and smart home dashboards. It supports Arduino, LVGL, and Guition HMI development tools, allowing developers to quickly build intuitive visual interfaces and control systems.

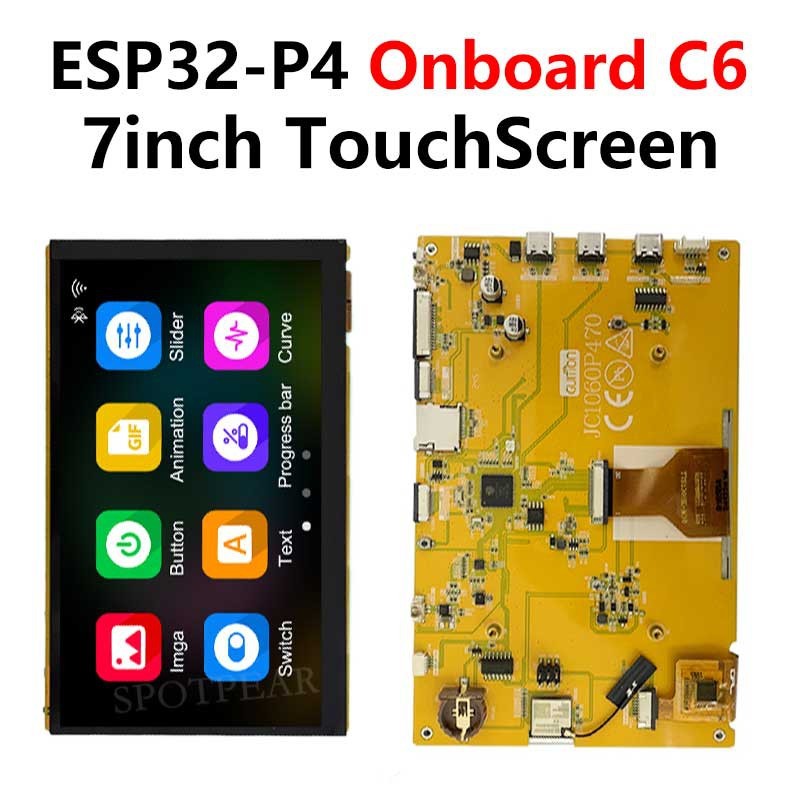

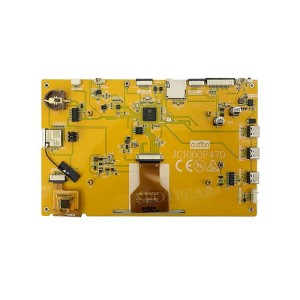

The ESP32-P4 Core Board (JC-ESP32P4-M3) combines the power of ESP32-P4NRW32 and ESP32-C6-MINI-1U-N4 for enhanced processing capability, efficient graphics rendering, and stable wireless performance.

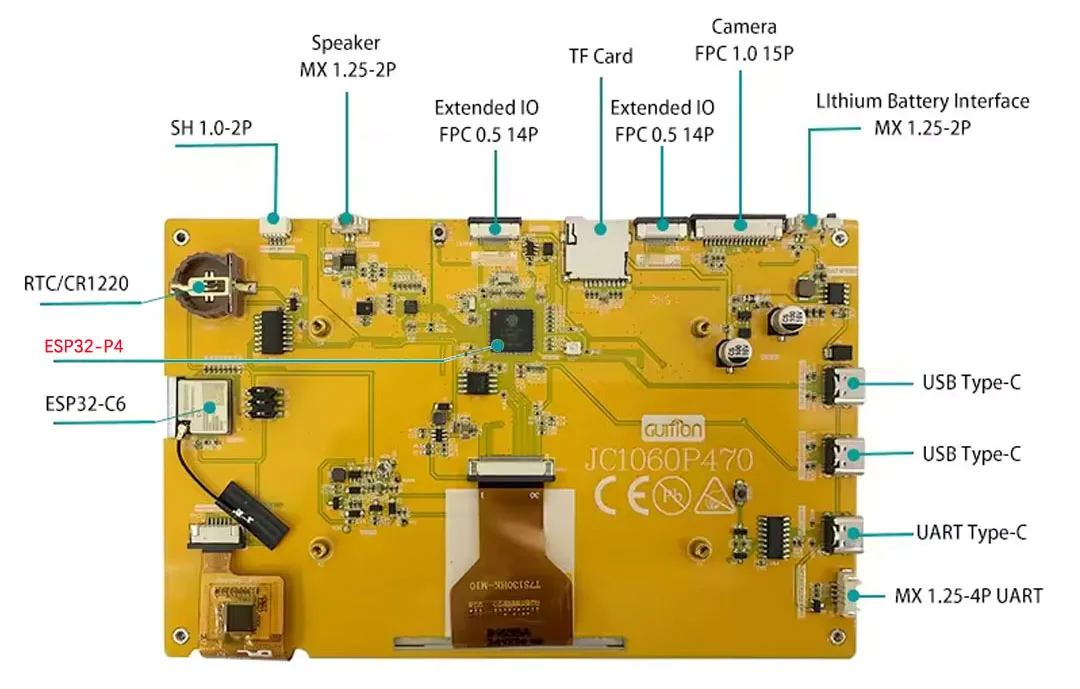

Key Features:
7.0-inch 1024×600 IPS TFT LCD with vibrant 16.7M colors
Capacitive touch panel for smooth and accurate control
Dual onboard processors: ESP32-P4NRW32 + ESP32-C6-MINI-1U-N4
Built-in Wi-Fi and Bluetooth for IoT connectivity
Camera interface (FPC 1.0 15P) for real-time image processing
Speaker port and audio interface for multimedia applications
TF card slot for data and image storage
RTC/CR1220 battery holder for real-time clock backup
USB Type-C x2 and UART Type-C x1 for power, programming, and serial communication
Extended IO ports (FPC 0.5 14P) for peripheral expansion
Lithium battery interface for portable or embedded systems
Supports Arduino, LVGL, and Guition HMI development tools
Ideal for smart control, industrial display, and multimedia devices
Technical Specifications:
| Parameter | Description |
|---|

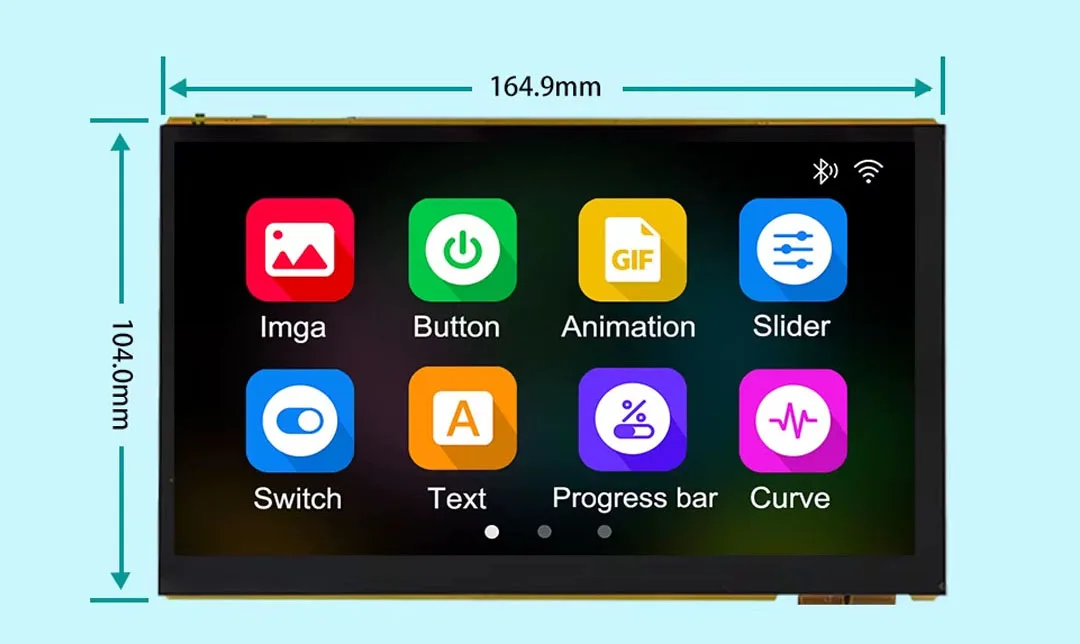

| Display Size | 7.0 inch |
| Display Type | IPS TFT LCD |
| Resolution | 1024 × 600 pixels |
| Display Colors | 16.7M |
| Touch Type | Capacitive |
| Controller | JD9165 |
| Core Board | JC-ESP32P4-M3 |
| MCU | ESP32-P4NRW32 + ESP32-C6-MINI-1U-N4 |
| Connectivity | Wi-Fi, Bluetooth |
| Camera Interface | FPC 1.0 15P |
| Speaker Port | MX 1.25-2P |
| TF Card Slot | Supported |
| Battery Interface | MX 1.25-2P |
| RTC Backup | CR1220 Coin Cell Supported |
| USB Ports | 2 × USB Type-C, 1 × UART Type-C |
| Extended IO | FPC 0.5 14P × 2 |
| Display Driver IC | JD9165 |
| Development Support | Arduino IDE, LVGL, Guition HMI Tools |
Applications:
Smart Home Control Panels
Industrial Automation Displays
IoT Dashboards and Data Visualization
Wireless Camera and Image Terminals
Multimedia and Audio-Enabled Embedded Systems
Robotics and AI-Controlled Interfaces
Package Includes:
1 × ESP32-P4 7-Inch Smart Display Board
1 × Capacitive Touch Screen
1 × USB Type-C Cable
1 × RTC Battery Slot (Battery not included)
Download Resources:
Official datasheet, demo firmware, and schematics:
ESP32-P4 Smart Display Resources
Why Choose This Display?
With its powerful ESP32 dual-core architecture, high-resolution IPS display, and rich I/O options, the ESP32-P4 Smart Display offers unmatched flexibility for building interactive visual systems. Whether used for IoT dashboards, industrial HMIs, or AI-integrated projects, it delivers exceptional performance, vibrant visuals, and easy programmability.
Design smarter, more interactive embedded systems — start creating today with the ESP32-P4 7-Inch IPS Smart Display!
