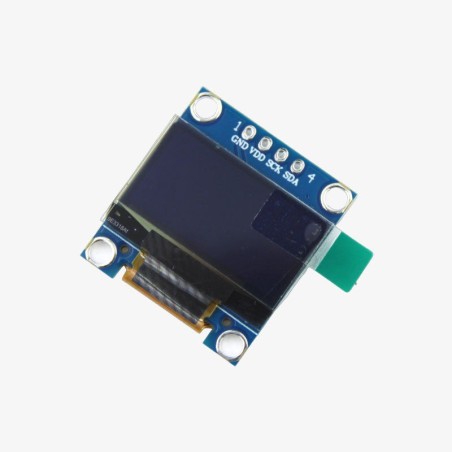

This 0.96” I2C OLED Display is an OLED monochrome 128×64 dot matrix display module with I2C Interface. It is perfect when you need an ultra-small display. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1.GND: Power ground
2.VCC: Power positive
3.SCL: Clock wire
4.SDA: Data wire.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Display Size | 0.96 inch |
| Resolution | 128 x 64 Pixels |
| Display Area | 21.74 x 10.86mm |
| Driving Voltage | 3.3-5V |
| Operating Temperature | -40º~70º Celsius |
| Interface Type | IIC |
| Pixel Color | Blue |
| Length (mm) | 27 |
| Width (mm) | 27 |
| Height (mm) | 6 |
| Weight (gm) | 5 |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 5 × 8 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x 0.96" Inch I2C OLED Display Blue
