Reference: RBD-3293
Banner

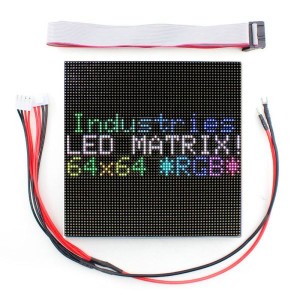

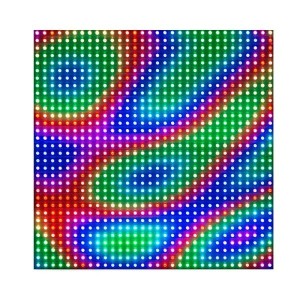

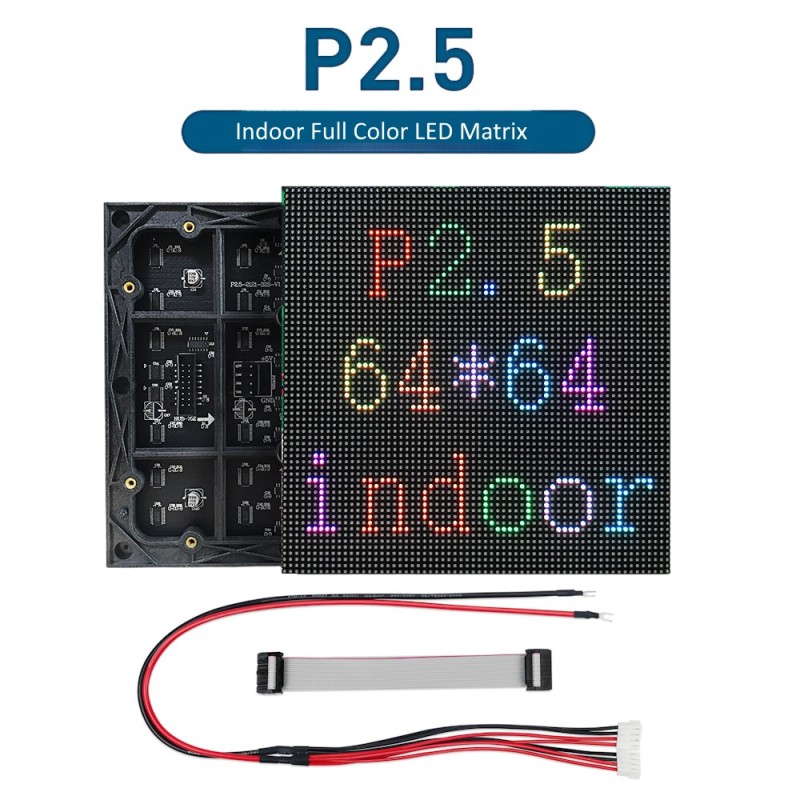

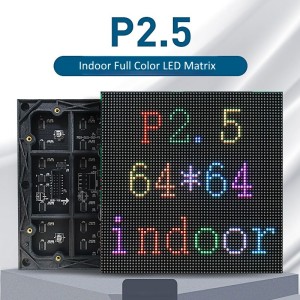

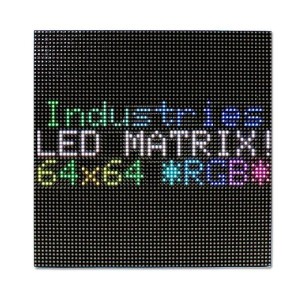

The P2.5 Indoor RGB LED Matrix Module is a high-resolution full-color LED display unit designed for indoor video walls, digital signage, dashboards, clocks, and DIY display projects. With a 2.5 mm pixel pitch and 64×64 pixel resolution, this module delivers sharp visuals, smooth motion, and vibrant colors at close viewing distances.
This module uses SMD 2121 LEDs, 1/32 scan technology, and a HUB75 interface, making it compatible with common LED controllers such as ESP32, Raspberry Pi, NovaStar, Colorlight, and Linsn receiving cards.
The P2.5 Indoor RGB LED Matrix Module is a high-resolution full-color LED display unit designed for indoor video walls, digital signage, dashboards, clocks, and DIY display projects. With a 2.5 mm pixel pitch and 64×64 pixel resolution, this module delivers sharp visuals, smooth motion, and vibrant colors at close viewing distances.
This module uses SMD 2121 LEDs, 1/32 scan technology, and a HUB75 interface, making it compatible with common LED controllers such as ESP32, Raspberry Pi, NovaStar, Colorlight, and Linsn receiving cards.
High Resolution: 64×64 pixels in a compact 160×160 mm size
Fine Pixel Pitch: 2.5 mm for sharp indoor viewing
Full Color RGB: 16.7M colors with excellent grayscale performance
High Refresh Rate: >1920 Hz (flicker-free for camera use)
HUB75 Interface: Easy integration with common controllers
Constant Current Drive: Stable brightness and long LED life
Modular Design: Seamless tiling for large LED walls
| Parameter | Specification |
|---|---|
| Pixel Pitch | 2.5 mm |
| Resolution | 64 × 64 pixels |
| Module Size | 160 × 160 mm |
| LED Type | SMD 2121 |
| Pixel Configuration | 1R1G1B |
| Scan Mode | 1/32 Scan |
| Interface | HUB75 / HUB75E |
| Operating Voltage | DC 5 V |
| Max Power Consumption | ~25 W (per module) |
| Refresh Rate | >1920 Hz |
| Viewing Angle | 160° (V) / 120° (H) |
| Best Viewing Distance | 3 m – 20 m |
| Operating Temperature | −20 °C to +50 °C |
| Application | Indoor use only |
Indoor LED video walls
Digital signage & advertising displays
Information boards & dashboards
Clocks, counters & status displays
DIY electronics & embedded projects
Indoor use only (not waterproof)
Controller, power supply, and cables are NOT included
Ensure sufficient 5 V power supply capacity when using multiple modules
Suitable for repair or replacement in existing LED panels
1 × P2.5 Indoor RGB LED Matrix Module (64×64)
