    Double 12-Bit Dual-Channel LED Music Spectrum Level Indicator

    RBD-3749

    This compact stereo LED spectrum level indicator features dual 12-level channels, with 7 green, 2 orange, and 3 red LEDs for vivid music visualization. Each LED has an independent current-limiting resistor to ensure consistent brightness across different colors. The module supports adjustable rise/fall speeds, peak hold, and multiple display modes.

    Equipped with automatic gain control (AGC), it adapts to various input levels and ensures accurate, dynamic audio visualization. The audio input is isolated with a TI op-amp to minimize MCU-induced interference.

    BDT 976
    BDT 976 BDT 976 BDT 976 BDT 976
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 976 Tax excluded
    BDT 976 Tax included
    BDT 0 Tax
    BDT 976 Tax excluded
    BDT 0 Tax
    BDT 976 Tax included
    Quantity
    14 Items

    4 people have purchased this item
    14 items in stock
    Description

    Description

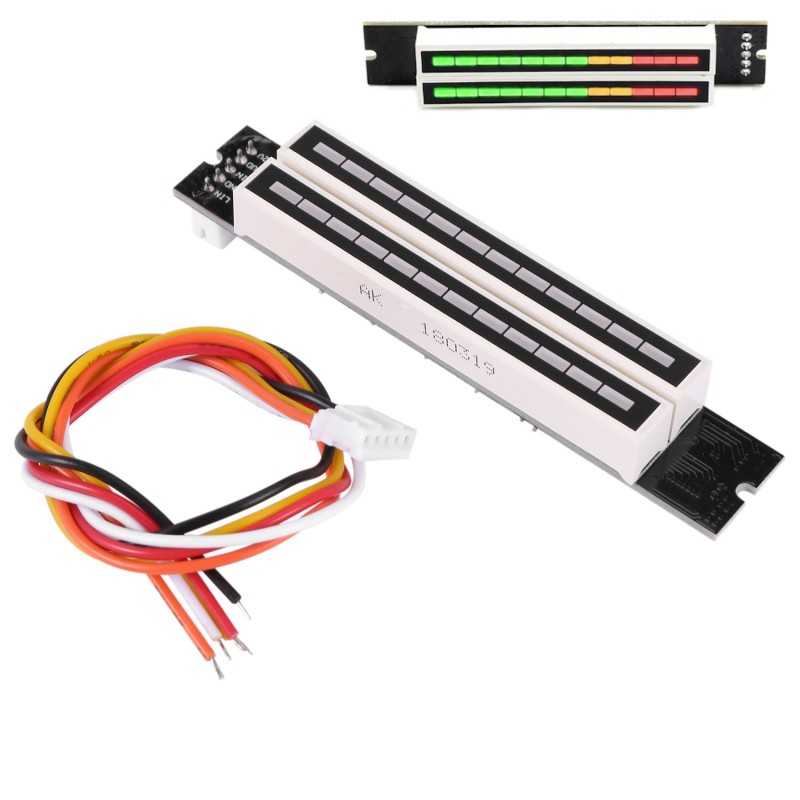

    This compact stereo LED spectrum level indicator features dual 12-level channels, with 7 green, 2 orange, and 3 red LEDs for vivid music visualization. Each LED has an independent current-limiting resistor to ensure consistent brightness across different colors. The module supports adjustable rise/fall speeds, peak hold, and multiple display modes.

    Equipped with automatic gain control (AGC), it adapts to various input levels and ensures accurate, dynamic audio visualization. The audio input is isolated with a TI op-amp to minimize MCU-induced interference.

    Factory reset is available by pressing and holding the button for 10 seconds, restoring optimal sensitivity settings. Data is auto-saved every 5 seconds, ensuring your adjustments persist.

    Perfect for DIY audio projects, spectrum analyzers, and visual effects.


    Features

    • Ultra-compact size: PCB 80 × 14 mm; LED area 58 × 14 mm

    • Dual-channel (stereo) 12-level display

    • Color arrangement per channel: 7 Green, 2 Orange, 3 Red

    • Multiple display modes:

      1. Bar display + falling peak

      2. Bar display + disappearing peak

      3. Bar display only

      4. Right channel peak + falling effect

      5. Bar display (3 lights mode)

      6. Subtitle-style stripe + peak

      7. Jump light with peak + bar combo

    • Adjustable settings: rise speed, fall speed, and peak hold time

    • Wide AGC range: adapts to different audio levels automatically

    • Op-amp isolated input: reduces high-frequency noise interference

    • Independent resistors for consistent LED brightness


    Specifications

    • Operating Voltage: 7V – 12V DC

    • Operating Current: ≥100mA

    • PCB Size: 80 × 14 mm

    • LED Area: 58 × 14 mm

    • Colors per channel: 7 × Green, 2 × Orange, 3 × Red

    • Input Pins:

      • LIN: Left channel input

      • RIN: Right channel input

      • SGND: Signal ground

      • PGND: Power ground

      • +12V: Positive DC input

    Important Notes:

    • Do not exceed 12V DC supply.

    • Ensure correct polarity to prevent LED damage.

    • For minimal noise, use shielded audio cables.


    Package Includes

    • 1 × Dual-Channel 12-Bit LED Spectrum Music Level Indicator Module

    Product Details
    RBD-3749
    14 Items

    Specific References

    EAN13
    3749
    Comments (0)
    Grade
    No customer reviews for the moment.
