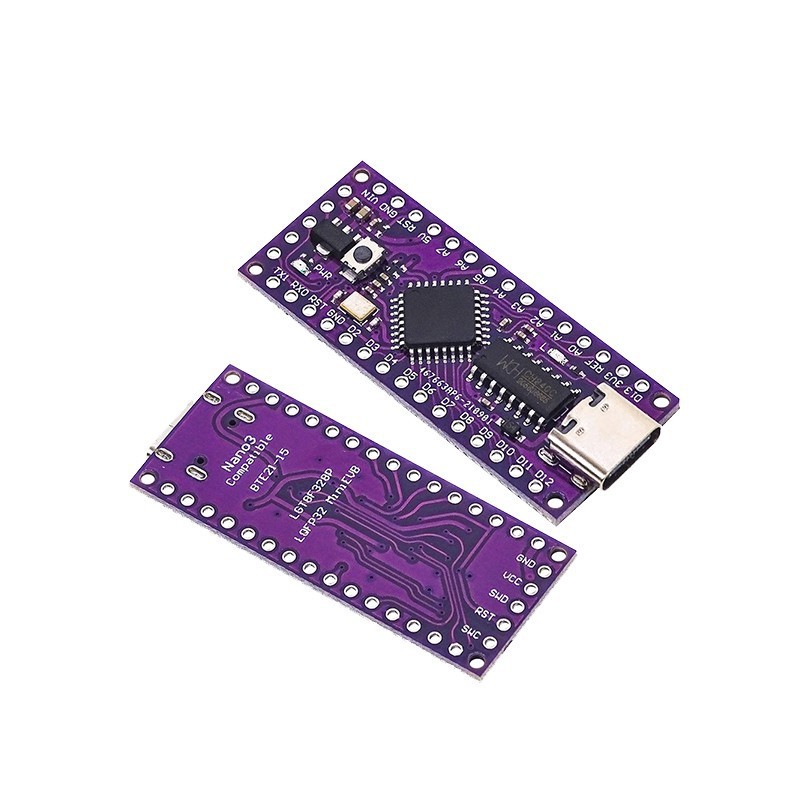

Product Description:
The LGT8F328P Development Board – CH340 – Type-C is a powerful and cost-effective alternative to the Arduino Nano, offering enhanced performance while maintaining full compatibility with the Arduino IDE. Built around the LGT8F328P microcontroller, this board provides higher speed, a 12-bit ADC for more precise analog measurements, and an integrated DAC for analog output—features not available on the traditional ATmega328P.
With its USB Type-C interface and reliable CH340C USB driver, it ensures stable communication and convenient connectivity. The board is compact, beginner-friendly, and flexible enough for advanced developers, making it ideal for prototyping, robotics, IoT, and embedded systems.
Key Features:
Enhanced ATmega328P Alternative: LGT8F328P MCU with higher performance.
USB Type-C Interface: Modern, durable, and reversible connector.
USB Driver: CH340C for reliable serial communication.
Flexible Logic Levels: Default 3.3V (switchable to 5V via solder pad).
Improved Analog Precision:
Multiple Timers & PWM: 2×8-bit + 2×16-bit timers, 9 PWM channels.
Compatible with Arduino IDE & LGT MCU IDE.
Compact Design: Same form factor as Arduino Nano.
Technical Specifications:
MCU: LGT8F328P (8-bit RISC architecture)
Flash Memory: 32 KB
SRAM: 2 KB
Clock Speed: 16 MHz (up to 32 MHz)
Registers: 32 × 8-bit
Timers: 2 × 8-bit, 2 × 16-bit
PWM Channels: 9
ADC: 12-bit resolution
DAC: 8-bit resolution
WDT: Programmable Watchdog Timer
Interfaces: USART, SPI, I²C, TWI
Logic Voltage: 3.3V (switchable to 5V)
USB Interface: Type-C
Driver: CH340C
Form Factor: Arduino Nano compatible
Applications:
Package Includes:
Why Choose This Board?
The LGT8F328P with CH340 and Type-C connectivity combines modern USB support, higher resolution ADC/DAC, and Arduino IDE compatibility in a compact Nano-sized package. It’s a smarter upgrade for anyone who needs more precision and flexibility than the standard Arduino Nano.
Build smarter projects with the LGT8F328P Development Board – CH340 – Type-C today!
