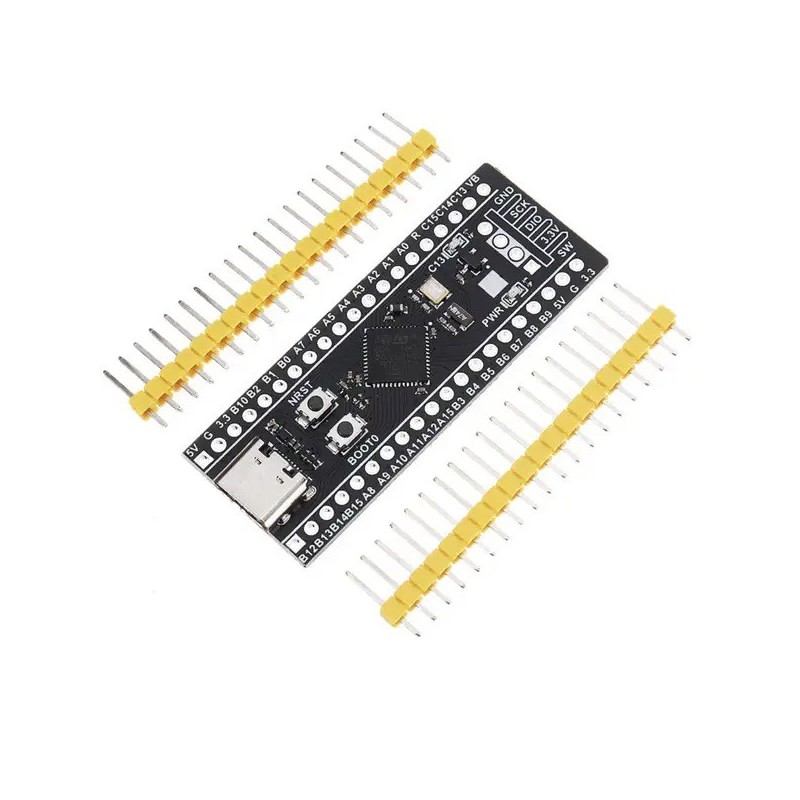

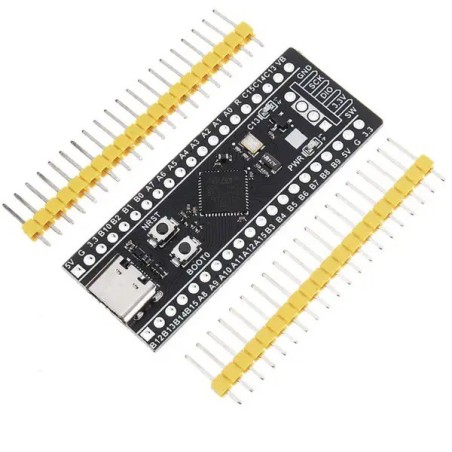

STM32F401RCT6 Black Pill Development Board

Product Description:
The STM32F401RCT6 Black Pill Development Board is a powerful upgrade to the popular STM32 Blue Pill, offering enhanced performance with an ARM Cortex-M4F core running at up to 84 MHz. Featuring a floating-point unit (FPU), DSP instructions, and a memory protection unit (MPU), this board is ideal for advanced embedded applications requiring speed, precision, and reliability.

With 256KB Flash memory, 64KB SRAM, and up to 50 GPIOs, it supports multiple peripherals including USART, SPI, I2C, I2S, SDIO, USB OTG FS, and 16-channel 12-bit ADC. Thanks to its compatibility with STM32duino, it can be programmed easily via the Arduino IDE, making it suitable for both beginners and professionals.

Key Features:

• Processor: ARM Cortex-M4F (STM32F401RCT6) up to 84 MHz

• Memory: 256KB Flash, 64KB SRAM

• Floating Point Unit (FPU): Supports single-precision operations and DSP instructions

• Interfaces:

  • 3 × UART

  • 3 × I2C

  • 3 × SPI

  • 1 × USB OTG FS

  • 1 × SDIO, 1 × I2S

• ADC: 16-channel, 12-bit resolution

• Timers: 8 Timers/Counters

• GPIO: Up to 50 I/O pins

• Operating Voltage: 1.7V – 3.6V

• Temperature Range: -40°C to +85°C

• Bootloader: DFU bootloader supported

• Arduino IDE Support: Fully compatible via STM32duino core

Technical Specifications:

• Series: STM32F401RC

• Core: 32-bit ARM Cortex-M4

• Clock Speed: 84 MHz

• Program Memory: 256KB Flash

• Data RAM: 64KB SRAM

• ADC Resolution: 12-bit, 16 channels

• Communication Interfaces: I²C, I²S, SDIO, SPI, USART, USB OTG FS

• Timers: 8

• Dimensions: Standard Black Pill form factor

• Power Supply: 1.7V–3.6V

Applications:

• Robotics and automation systems

• Signal processing and data acquisition

• IoT and embedded control projects

• Wearable and low-power devices

• Prototyping with Arduino IDE and STM32Cube

Package Includes:

• 1 × STM32F401RCT6 Black Pill Development Board

• 2 × 20-pin Straight Headers

• 1 × 4-pin Curved Header

Why Choose the STM32F401 Black Pill?
With its high-performance ARM Cortex-M4F core, Arduino IDE compatibility, and a wide range of interfaces, the STM32F401 Black Pill is a perfect balance of power and flexibility. Whether you are upgrading from the Blue Pill or starting a new project, this board provides the performance you need for complex embedded applications.

Take your projects to the next level with the STM32F401RCT6 Black Pill Development Board—powerful, affordable, and developer-friendly.
