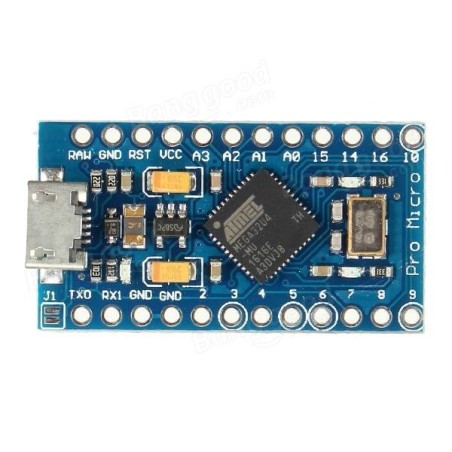

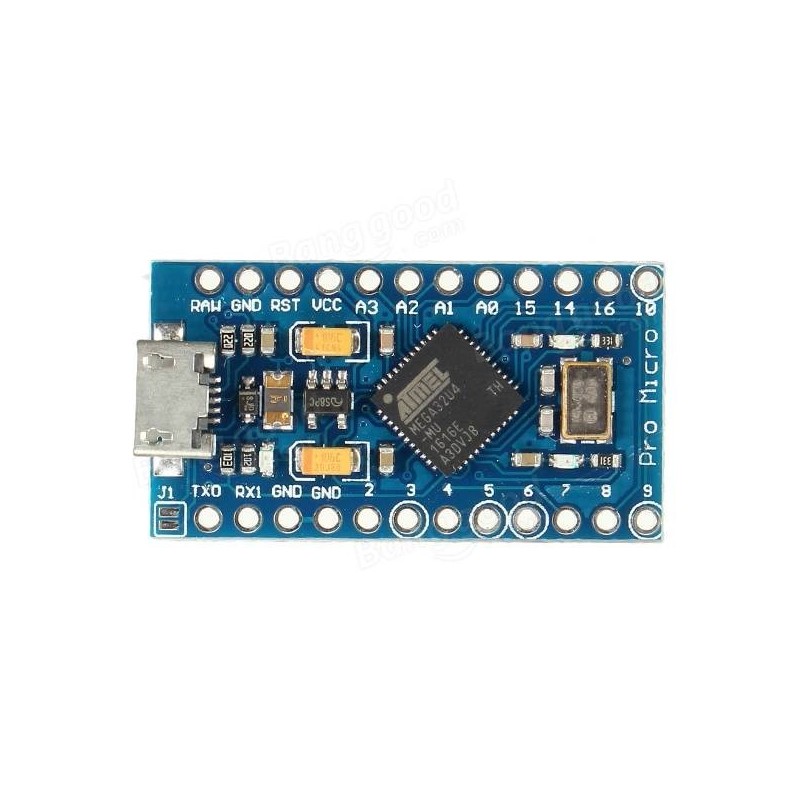

    Arduino Pro Micro 5V/16MHz

    RBD-0838

    • ATMEGA32U4 running in 5V / 16MHz
    • Support Arduino IDE V1.0.1
    • Micro USB interface programming on the board
    • Four 10-bit ADC pin
    • 12 digital I / O (5 PWM capability)
    • Rx and Tx hardware serial connection. RoboticsBD
    BDT 680
    BDT 680 BDT 680 BDT 680 BDT 680
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 680 Tax excluded
    BDT 680 Tax included
    BDT 0 Tax
    BDT 680 Tax excluded
    BDT 0 Tax
    BDT 680 Tax included
    Quantity
    In-Stock
    15 Items

    121 people have purchased this item
    2 people recently added this item to the cart
    15 items in stock
    Description

    This Pro Micro 5V 16M Mini Leonardo Microcontroller Development Board For Arduino development board has 4 channel 10 bit ADC, 5 PWM pins, 12 DIO, and a hardware serial connection Rx and Tx you are familiar with Running on 16MHz and 5V, this board will remind you a lot of other Arduino compatible boards that you like.

    There is a voltage regulator on board, so it can accept up to 12V DC. RoboticsBD

    The Micro is a microcontroller board based on the ATmega32U4. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a reset button. RoboticsBD

    It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard.

    The Micro board is similar to the Arduino Leonardo in that the ATmega32U4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.

    If you supply an unstable power supply board, be sure to connect to the “RAW”, not on the VCC pin. It has also added a PTC fuse and diode protection to the power circuit and to correct the RX and LED TX circuits.  Featured By RoboticsBD.

    Product Images are shown for illustrative purposes only and may differ from the actual product.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD



    Features :

    1. ATMEGA32U4 running in 5V / 16MHz
    2. Support Arduino IDE V1.0.1
    3. Micro USB interface programming on the board
    4. Four 10-bit ADC pin
    5. 12 digital I / O (5 PWM capability)
    6. Rx and Tx hardware serial connection.
    Pin Diagram:

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    General Specification
    MicrocontrollerATmega32U4
    Input Voltage(Recommended)7-12V
    Operating Voltage (VDC)5
    Input Voltage (limits)6-20V
    Analog I/O Pins12
    Digital I/O Pins20
    DC Current per I/O Pin (mA)20
    DC Current for 3.3V Pin (mA)50
    PWM Pins7
    Flash Memory32 KB
    EEPROM2.5KB
    SRAM1
    Clock Speed16 MHz
    Dimensions (mm) LxWxH48x18x8
    Weight (gm)13
    Shipment Weight0.06 kg
    Shipment Dimensions8 × 6 × 4 cm

    Please allow 5% measuring deviation due to manual measurement.

    RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

    Documentation :

    1. Arduino Pro Micro Driver
    2. Windows Driver Installation Guide
    3. Hookup Guide
    4. Arduino Pro-micro Schematics

    Package Includes :

    1 x Arduino Pro Micro 5V/16MHz
