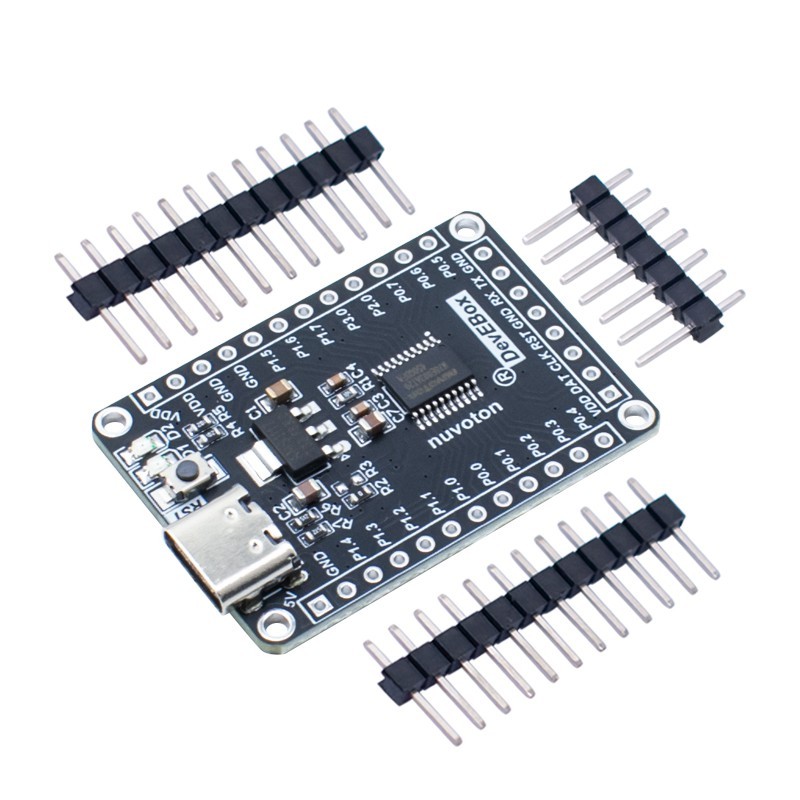

    Nuvoton N76E003AT20 8051 Core Development Board – USB Type-C

    RBD-3687

    The Nuvoton N76E003AT20 Development Board is a compact and powerful 8-bit 8051-based microcontroller board designed for embedded system development, learning, and rapid prototyping. Built around the N76E003AT20 MCU, this board operates at 16MHz and offers 18KB Flash memory, 1KB RAM, multiple communication interfaces, and rich GPIO expansion via 2.54mm pin headers.

    BDT 490
    BDT 490 BDT 490 BDT 490 BDT 490
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 490 Tax excluded
    BDT 490 Tax included
    BDT 0 Tax
    BDT 490 Tax excluded
    BDT 0 Tax
    BDT 490 Tax included
    Quantity
    19 Items

    1 person has purchased this item
    19 items in stock
    Description

    The Nuvoton N76E003AT20 Development Board is a compact and powerful 8-bit 8051-based microcontroller board designed for embedded system development, learning, and rapid prototyping. Built around the N76E003AT20 MCU, this board operates at 16MHz and offers 18KB Flash memory, 1KB RAM, multiple communication interfaces, and rich GPIO expansion via 2.54mm pin headers.

    With built-in USB Type-C power supply, reset button, onboard LEDs, and a stable 3.3V/5V power system, it provides a convenient and reliable platform for hobbyists, students, and engineers.

    Key Features:

    • MCU: Nuvoton N76E003AT20 – 8-bit 1T 8051 core

    • Clock Speed: 16MHz internal high-speed RC oscillator

    • Memory: 18KB Flash ROM, 1KB RAM (256B + 768B)

    • EEPROM: Flash can be used as EEPROM for data storage

    • I/O Ports: 17 GPIO + 1 input pin

    • Interfaces: 2 × UART, 1 × SPI (8Mbps), 1 × I²C (400kbps)

    • Timers/PWM: 3 × 16-bit timers, 6 × 16-bit PWM channels

    • ADC: 8-channel, 12-bit, 400kHz sampling

    • Expansion: 2 × 12-pin 2.54mm headers for GPIO access

    • Reset Button: Onboard RST key

    • LED Indicators: 1 × power LED, 1 × programmable LED

    • Power Options: 5V or 3.3V selectable supply

    • Power Interface: USB Type-C connector or 5V pin header

    • Operating Voltage: 2.4V – 5.5V

    • Operating Temperature: –40°C to +105°C

    • ESD/EFT Protection: ±8kV HBM, ±400V MM, over ±4kV EFT

    Package Includes:

    • 1 × N76E003AT20 Development Board

    Applications:

    • 8051 microcontroller learning and experiments

    • Embedded control systems

    • Sensor and peripheral interfacing projects

    • Low-power data acquisition systems

    • Educational and training purposes

    Why Choose This Board?
    This board is perfect for developers who need a low-cost, high-reliability 8051 MCU platform with modern conveniences like USB Type-C power, multiple communication interfaces, and robust ESD/EFT protection—making it suitable for both learning and professional use.

    Bring your 8051-based projects to life with the Nuvoton N76E003AT20 Development Board—compact, versatile, and ready to go!

    Product Details
    RBD-3687
    19 Items

    Specific References

    EAN13
    3687
