Reference: RBD-3829
Brand: Arduino Official
Banner

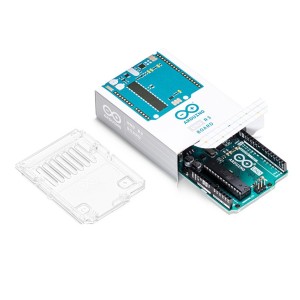

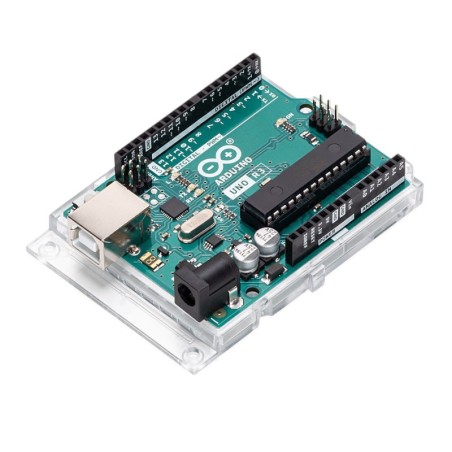

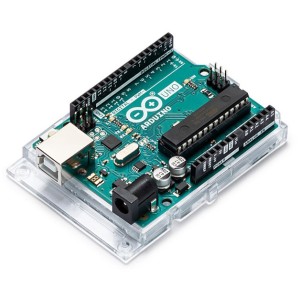

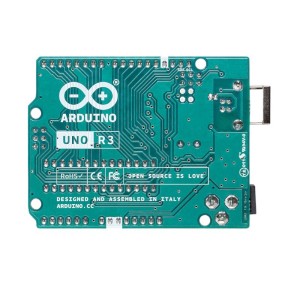

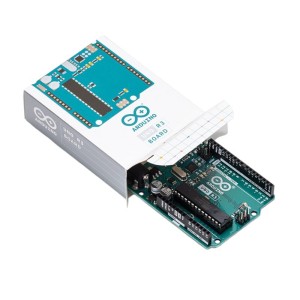

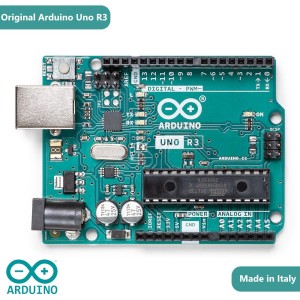

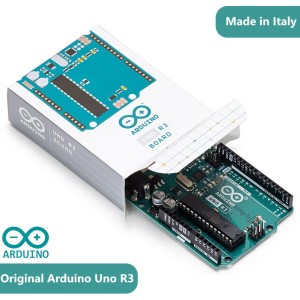

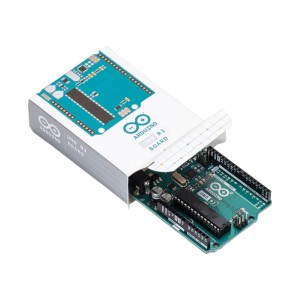

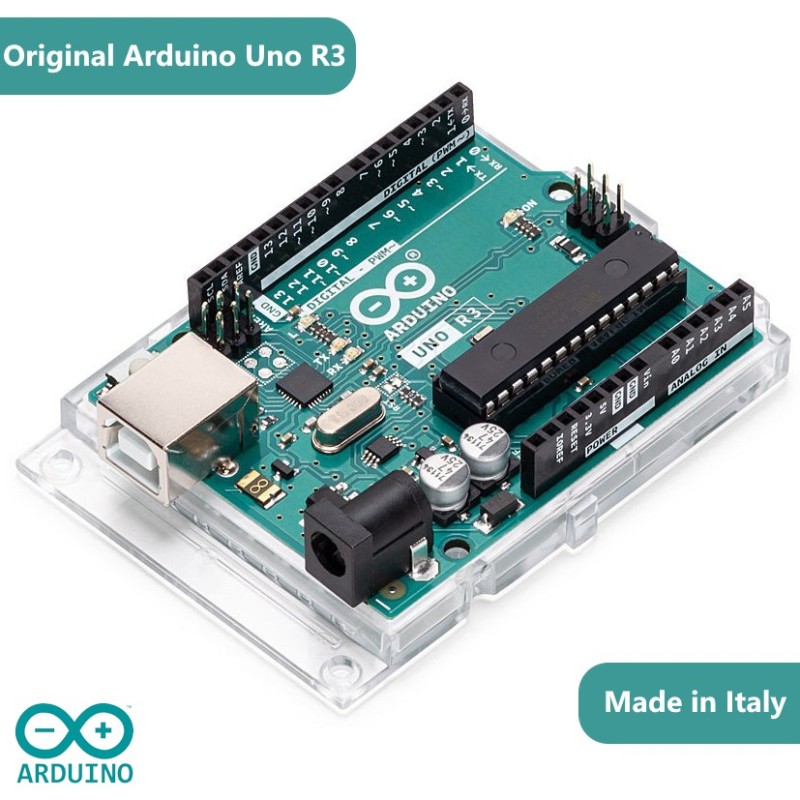

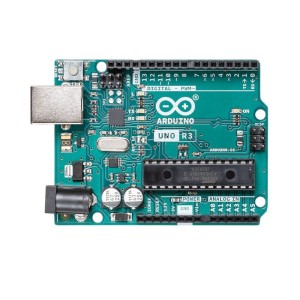

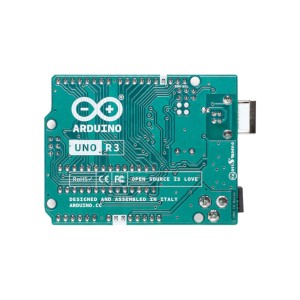

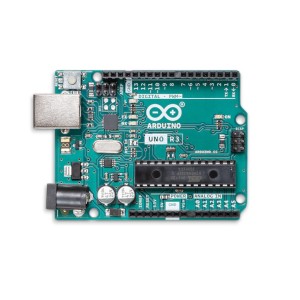

This Arduino Uno is an original microcontroller board from Arduino officials based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.. You can tinker with your UNO without worrying too much about doing something wrong, worst case scenario you can replace the chip for a few dollars and start over again.
“Uno” means one in Italian and was chosen to mark the release of Arduino Software (IDE) 1.0. The Uno board and version 1.0 of Arduino Software (IDE) were the reference versions of Arduino, now evolved to newer releases. The Original Arduino Uno Rev3 board is the first in a series of USB Arduino boards and the reference model for the Arduino platform; for an extensive list of current, past or outdated boards see the Arduino index of boards. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications | |
| Model Type | Arduino Uno R3 |
| Microcontroller Chip | ATmega328P |
| Operating Voltage (VDC): | 5 |
| Input voltage | 7-12V |
| Analog I/O Pins | 6 |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| PWM Digital I/O Pins | 6 |
| Clock Speed | 16 MHz |
| Flash Memory | 32 KB |
| SRAM | 2 |
| EEPROM | 1 KB (ATmega328P) |
| DC Current for 3.3V Pin (mA) | 50 |
| DC Current per I/O Pin (mA) | 20 |
| On Board LEDs | Yes |
| Operating Temperature (°C) | -10 to 60 |
| Weight (g): | 25 |
| Length (mm): | 68.6 |
| Width (mm): | 53.4 |
| Height (mm): | 12.5 |
| Shipping Weight | 0.05 kg |
| Shipping Dimensions | 9 × 6 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Arduino Uno is open-source hardware! You can build your own board using the following files:
1 x Original Arduino Uno R3
